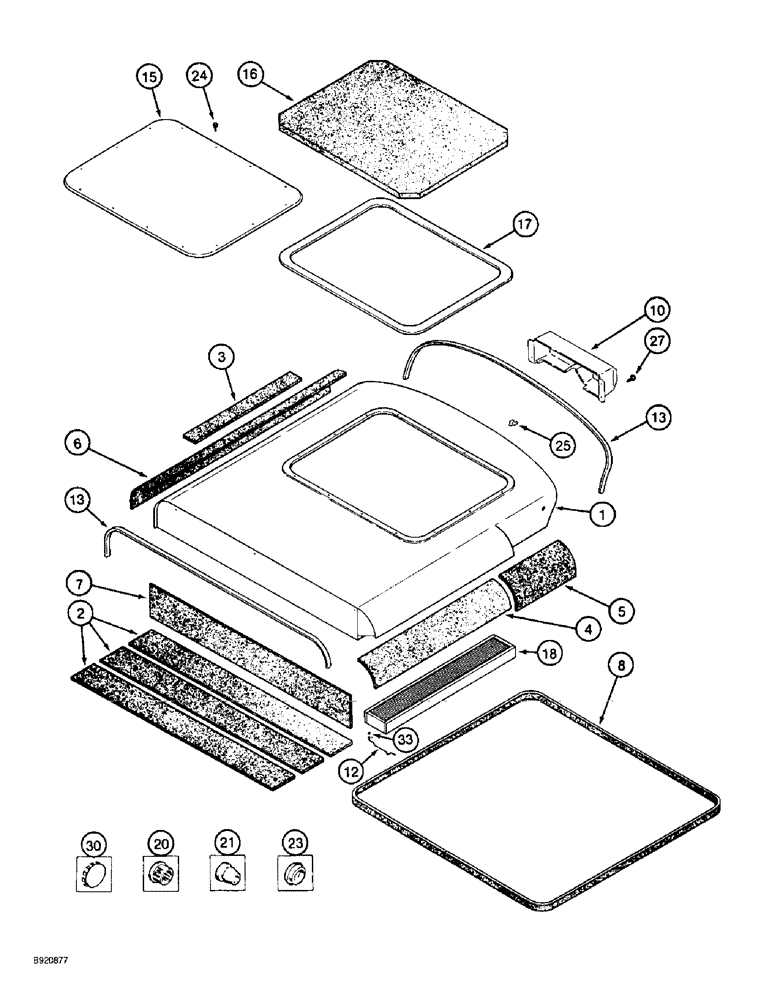

Запчасти Case IH 2022 (9E-22) - CAB ROOF (10) - CAB & AIR CONDITIONING

1

1344179C1

ROOF

ASSEMBLY - cab

1шт.

2

NSS

NOT SOLD SEPARAT

PANEL - insulation top, 12 inch (305 mm) long, cut from bulk sheet 1327515C2 below

3шт.

3

NSS

NOT SOLD SEPARAT

PANEL - insulation, left-hand top, 12 inch (305 mm) long, cut from bulk sheet 1327515C2 below

1шт.

4

NSS

NOT SOLD SEPARAT

PANEL - insulation, right-hand rear, 12 inch (305 mm) long, cut from bulk sheet 1327515C2 below

1шт.

5

NSS

NOT SOLD SEPARAT

PANEL - insulation, right-hand front, 12 inch (305 mm) long, cut from bulk sheet 1327515C2 below

1шт.

6

NSS

NOT SOLD SEPARAT

PANEL - insulation, left -hand side, 12 inch (305 mm) long, cut from bulk sheet 1327515C2 below

1шт.

7

NSS

NOT SOLD SEPARAT

PANEL - insulation, rear, 60 inch (1524 mm) long, cut from bulk sheet 1327515C2 below

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - roof seal, 220 inch (5588 mm) long, cut from bulk seal 182747C1 below

1шт.

10

1990987C1

COVER

ASSEMBLY - windshield wiper motor

1шт.

REF

INSTRUCTION

DECAL - Cotton Express, see page 9F-45

1шт.

12

117727C2

ROD

- filter latch

3шт.

13

NSS

NOT SOLD SEPARAT

SEAL - roof trim front and rear, 72 inch (1829 mm) long, cut from bulk seal 1327666C1 below

1шт.

15

143006C3

PANEL

- roof, access cover

1шт.

16

1276340C2

INSULATOR

COVER - insulation, access cover

1шт.

17

83872C2

SEAL

- access cover

1шт.

18

REF

INSTRUCTION

FILTER - cab, see page 9E-21

1шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

2шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID

1шт.

23

353-252

PLUG,1"

- button, 1 inch

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

- spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- self-tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

4шт.

30

179093

HOLE PLUG BUTTON,9/32"

8шт.

30

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch

2шт.

33

118084C1

SEALING WASHER

- rubber

3шт.

1327515C2

INSULATOR

INSULATION - bulk, 10 foot (3048 mm) sheet

1шт.

182747C1

DOOR SEAL

SEAL - bulk roll, sold by the foot

1шт.

1327666C1

SEAL

- bulk roll, sold by the foot

1шт.
