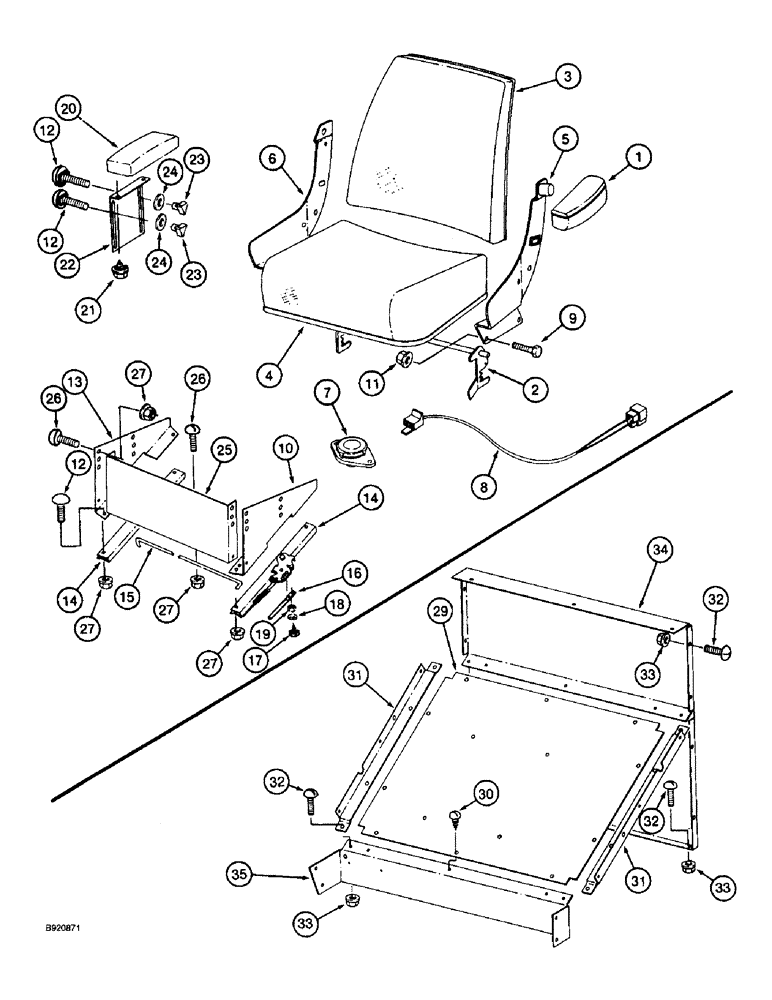

Запчасти Case IH 2022 (9E-08) - OPERATOR SEAT AND SUPPORTS (10) - CAB & AIR CONDITIONING

1321294C93

SEAT

ASSEMBLY - operator

1шт.

1

1344104C1

SET OF PARTS

KIT - armrest, left-hand

1шт.

2

S301391

SUPPORT

- seat tilt (Replaces support 1310828C1)

1шт.

1999520C1

PACKAGE

KIT - cushion and backrest

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION - backrest, order kit 1999520C1

1шт.

4

NSS

NOT SOLD SEPARAT

CUSHION - seat, order kit 1999520C1

1шт.

5

A45528

SUPPORT

- seat side bracket, left-hand (Replaces support 1310835C1)

1шт.

6

1310830C1

BRACKET

- seat side, right-hand

1шт.

7

1983395C1

IGNITION SWITCH

SWITCH - seat (See Note)

1шт.

See Figure Note.

1шт.

8

1345209C1

HARNESS

- seat switch (See Note)

1шт.

See Figure Note.

1шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

10

91668C1

PLATE

SUPPORT - seat bracket, left-hand

1шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

6шт.

13

91669C1

PLATE

SUPPORT - seat bracket, right-hand

1шт.

14

91659C1

RAIL

ADJUSTER - seat track

2шт.

15

192996C1

ROD

- seat adjusting link

1шт.

16

98199C1

ROD

- seat adjusting link

1шт.

17

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

18

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

19

225-14110

NUT,#10-24

2шт.

20

1301216C3

ARMREST

- seat

1шт.

21

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

22

192999C1

SUPPORT

- arm rest mounting

1шт.

23

196970C1

KNOB

- arm rest

2шт.

24

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

25

1301410C1

CHANNEL

- seat bracket filler

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

29

193000C2

LARGE PLATE

PLATE - platform center support SEAT

1шт.

30

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16, Seat Platform

10шт.

31

193001C2

SUPPORT

- platform center side SEAT

2шт.

32

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", Seat Platform

21шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC SEAT PLATFORM

21шт.

34

193003C1

SUPPORT ASSY.

SUPPORT - platform center rear SEAT

1шт.

35

193006C3

SUPPORT

- center front SEAT PLATFORM

1шт.
