Запчасти Case IH 2022 (9E-02) - LEFT-HAND CONSOLE (10) - CAB & AIR CONDITIONING

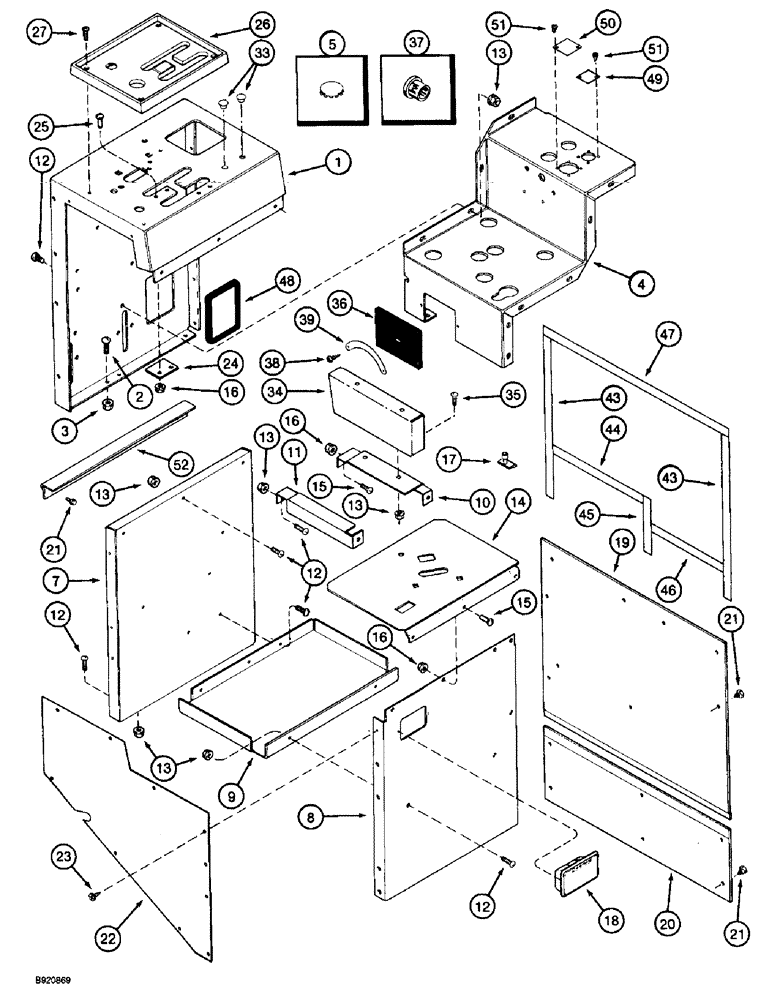

Схема запчастей Case IH 2022 - (9E-02) - LEFT-HAND CONSOLE (10) - CAB & AIR CONDITIONING
47
25
22
43
5
52
49
16
3
12
26
24
51
50
13
9
15
12
10
19
18
7
13
4
13
34
38
21
33
44
12
27
23
15
46
21
39
11
37
8
12
17
21
43
1
16
14
20
2
16
13
45
51
36
48
35
13

Артикул

Название

Примечание

Количество

1

193065C9

BRACKET

SUPPORT - left-hand console, rear (Replaces support 193065C8)

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

1321719C3

SUPPORT

- left-hand console, lower

1шт.

5

432535

HOLE PLUG BUTTON,13/32"

PLUG - 13/32 inch ID

2шт.

5

432386

PLUG

- 3/16 inch ID

3шт.

5

192280

HOLE PLUG BUTTON,1 1/4"

PLUG - 1-1/4 inch ID

1шт.

7

193008C4

SUPPORT

COVER - manual box rear

1шт.

8

193009C5

SUPPORT

COVER - left-hand console front

1шт.

9

193010C2

SUPPORT

- manual box bottom

1шт.

10

193011C1

SUPPORT

- manual box cover, left-hand

1шт.

11

193012C1

SUPPORT

- manual box cover, right-hand

1шт.

12

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

26шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

28шт.

14

1982795C3

COVER

- manual box

1шт.

15

1330207C1

SCREW,Sl Serr Truss Hd, 1/4" - 20 x 1/2"

- slotted truss head, polyseal, 1/4 NC x 1/2 inch

3шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

17

1285214C1

LOCK

LATCH - manual box cover

1шт.

18

A165449

ASH TRAY

TRAY - ash

1шт.

19

1338226C1

SHEET

PLATE - left-hand console outer cover

1шт.

20

1278738C1

COVER

- left-hand console, lower outer

1шт.

21

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

14шт.

22

193056C1

PLATE

- left-hand console inner, cover

1шт.

23

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10 NC x 1/2 inch, polyseal

8шт.

24

195239C2

BAR

- H-pattern filler plate

1шт.

25

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

2шт.

26

1285417C2

COVER

- left-hand console, top

1шт.

27

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

33

353-404

PLUG,Dome, .500" hole, Nylon

LH console Dome, .500" hole, Nylon

2шт.

34

193013C3

SUPPORT

- operator cab side left-hand (Replaces support 193013C2)

1шт.

35

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

36

1345010C1

GROMMET

INSULATOR - left-hand console lower

1шт.

37

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID

1шт.

37

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

2шт.

37

198820C1

GROMMET

- plug, lower console support

1шт.

38

1971376C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1 inch

2шт.

39

1999442C1

RETAINER

- grommet

1шт.

43

NSS

NOT SOLD SEPARAT

STRIP - cover, 18-5/16 inch (465 mm) long, cut from bulk seal 195917C1 below

1шт.

44

NSS

NOT SOLD SEPARAT

STRIP - cover, 11-13/16 inch (300 mm) long, cut from bulk seal 195917C1 below

1шт.

45

NSS

NOT SOLD SEPARAT

STRIP - cover, 7 inch (178 mm) long, cut from bulk seal 195917C1 below

1шт.

46

NSS

NOT SOLD SEPARAT

STRIP - cover, 9 inch (229 mm) long, cut from bulk seal 195917C1 below

1шт.

47

NSS

NOT SOLD SEPARAT

STRIP - cover, 23 inch (584 mm) long, cut from bulk seal 195917C1 below

1шт.

48

NSS

NOT SOLD SEPARAT

STRIP - cover, 16-5/16 inch (414 mm) long, cut from bulk seal 195917C1 below

1шт.

49

1330179C1

PLATE

- cover

1шт.

50

1330180C1

LARGE PLATE

PLATE - cover, if used

1шт.

51

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head slotted, No. 10 NC x 3/8 inch

4шт.

51

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - self-tapping, No. 8-18 x 1 inch (Replaces screw 161421C1)

2,4шт.

52

1338219C1

ANGLE

BRACKET - cover, left-hand

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

Выбрано товаров: 49
