Запчасти Case IH 2022 (8-78) - BASKET DOOR CYLINDER (07) - HYDRAULICS

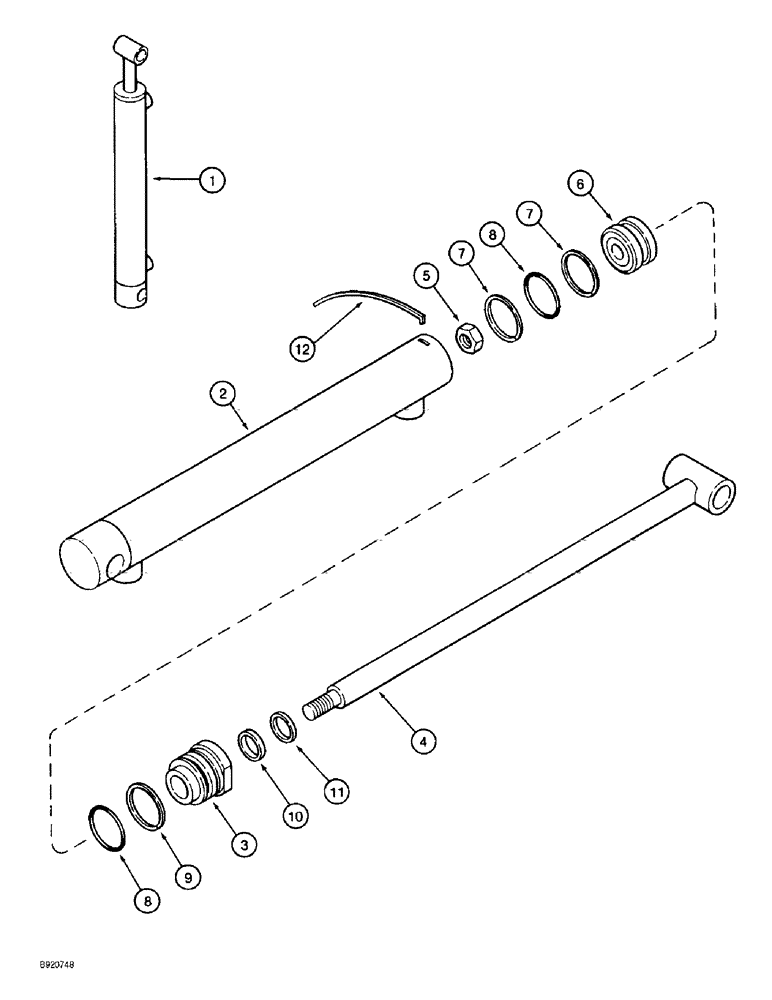

Схема запчастей Case IH 2022 - (8-78) - BASKET DOOR CYLINDER (07) - HYDRAULICS
1
4
10
3
2
8
6
5
9
11
12
7
7
8

Артикул

Название

Примечание

Количество

1

1282155C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke

CYLINDER ASSEMBLY - 2 (51) ID x 14-3/4 inch (374 mm) stroke

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 1282155C92

1шт.

3

108641C1

GLAND

- cylinder

1шт.

4

1282222C1

PISTON ROD

ROD - piston

1шт.

5

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

6

108640C2

PISTON

- cylinder

1шт.

7

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

RING - backup

2шт.

8

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

2шт.

9

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

RING - backup

1шт.

10

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

- rod

1шт.

11

532773R1

WIPER SEAL

WIPER - rod

1шт.

12

461180R1

RETAINER

RING - retaining, 6-1/4 inch (159 mm) long, cut from bulk wire 140600C1 below

1шт.

140600C1

RETAINING WIRE

WIRE - retaining, 12-13/16 inch (325 mm) long

1шт.

63884C92

SEAL KIT

KIT - seal

1шт.

Выбрано товаров: 14
