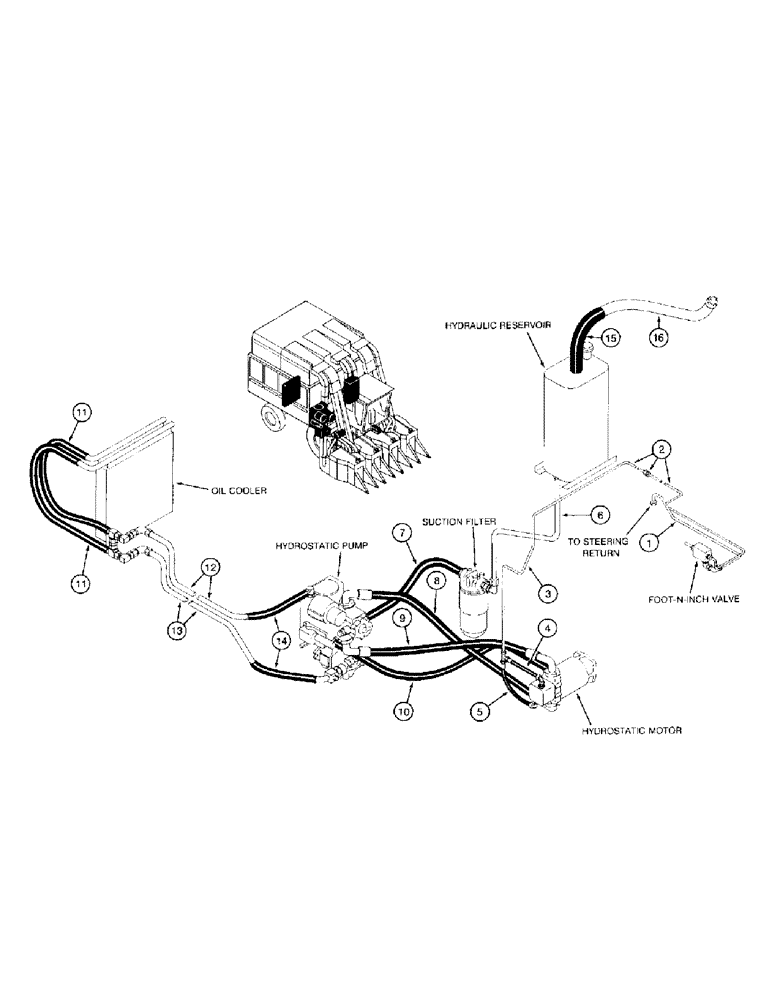

Запчасти Case IH 2022 (1-14) - PICTORIAL INDEX, PROPULSION SYSTEM (00) - PICTORIAL INDEX

1

Foot-N-Inch Return Tube, Pg 6-17

1шт.

2

Foot-N-Inch Supply Front Tube, Pg 6-17

1шт.

3

Foot-N-Inch Supply Rear Tube, Pg 6-17

1шт.

4

Foot-N-Inch Upper Hose, Pg 6-17

1шт.

5

Foot-N-Inch Lower Hose, Pg 6-17

1шт.

6

Filter Supply Tube (2022 Cotton Picker), Pg 8-5

1шт.

6

Filter Supply Tube (2044 Cotton Picker), Pg 8-5

1шт.

7

Pump Suction Hose, Pg 8-5

1шт.

8

Forward Pressure Hose, Pg 6-15

1шт.

9

Reverse Pressure Hose, Pg 6-15

1шт.

10

Case Drain Hose, Pg 6-15

1шт.

11

Oil Cooler Hose, Pg 6-3, 6-5

1шт.

12

Oil Cooler Supply Tube, Pg 6-3, 6-5

1шт.

13

Oil Cooler Return Tube, Pg 6-3, 6-5

1шт.

14

Case Drain Hose, Pg 6-3, 6-5

1шт.

15

Reservoir Filler Tube Elbow, Pg 8-3

1шт.

16

Reservoir Filler Tube, Pg 8-3

1шт.
