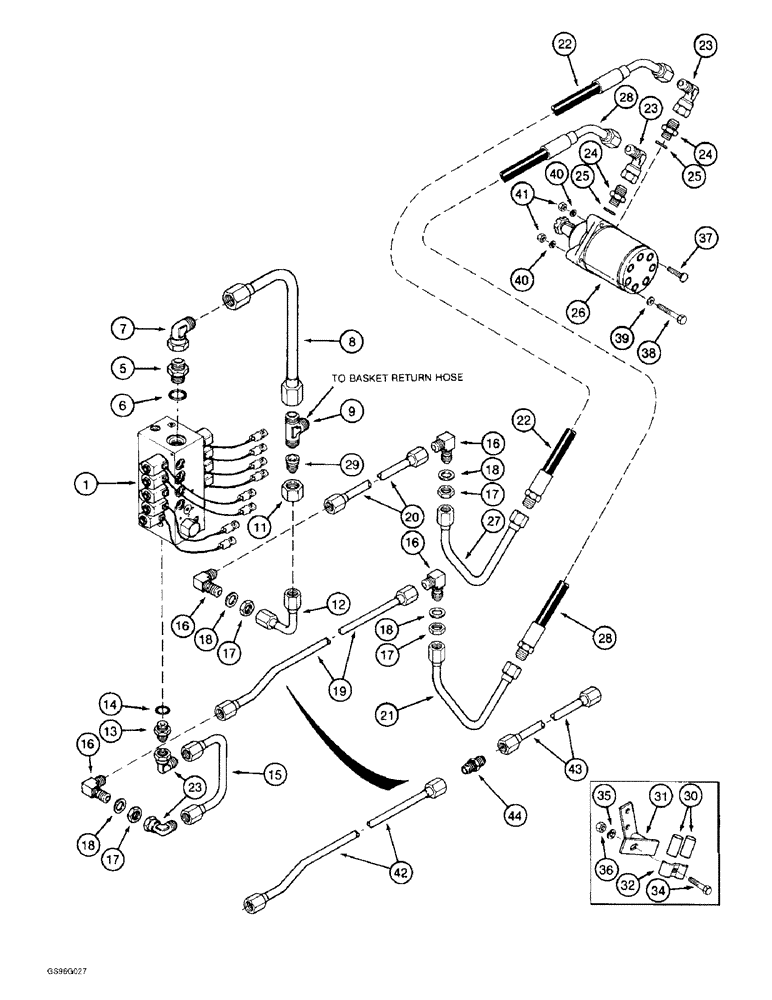

Запчасти Case IH 2022 (8-72) - CONVEYOR UNLOADER MOTOR SYSTEM (07) - HYDRAULICS

1

1341926C1

VALVE

ASSEMBLY - basket manifold, parts list page 8-67

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare (Replaces elbow 9410285)

1шт.

8

1285337C1

TUBE

- basket valve tank

1шт.

9

218-598

TEE,1 5/16"-12 37 Degree

- 1-5/16-12 inch flare

1шт.

11

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - hex, 1-5/16 inch NF (Replaces nut 9403532)

1шт.

12

1285299C2

TUBE

- motor return

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss (Replaces connector 9410205)

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

1982341C1

TUBE

- motor supply

1шт.

16

1285773C1

ELBOW

- bulkhead

4шт.

17

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF (Replaces nut 9403296)

4шт.

18

Q216

WASHER

- flat, 1-3/32 x 1-1/2 x 7/64 inch (Replaces washer 22767R1)

4шт.

19

1266199C2

TUBE,0.075" OD, 2569.97, 38.1 mm Length

- motor supply, zinc plated, 2022 Cotton Picker only (See Note)

1шт.

See Figure Note.

1шт.

19

1285317C2

TUBE,0.75" OD, 3179.6, 38.1 mm Length

- motor supply, 2044 Cotton Picker only (See Note)

1шт.

See Figure Note.

1шт.

20

1266198C2

TUBE

- motor return, 2022 Cotton Picker only

1шт.

20

1285318C5

TUBE,0.75" OD, 2840.8 mm Length

- motor return, zinc plated, 2044 Cotton Picker only (Replaces tube 1285318C4)

1шт.

21

1278770C2

TUBE

- motor supply

1шт.

22

1285369C2

HYDRAULIC HOSE,19.05 mm ID x 977.90 mm

- Motor return 19.05 mm ID x 977.90 mm

1шт.

23

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

4шт.

24

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss (Replaces connector 574479R1)

2шт.

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adjustable O-ring boss

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

26

REF

INSTRUCTION

MOTOR ASSEMBLY - conveyor unloader, parts list page 8-75

1шт.

27

1285319C2

TUBE

- motor return

1шт.

28

1285370C1

HYDRAULIC HOSE,19.05 mm ID x 870.00 mm

- Motor supply 19.05 mm ID x 870.00 mm

1шт.

29

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer, 1 inch tube OD x 1-1/16-12 inch flare (Replaces fitting 9403406)

1шт.

30

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - 3/4 ID x 1-13/64 inch long

2шт.

31

1285393C2

SUPPORT

BRACKET - motor tube

1шт.

32

157678C1

CLAMP

- hydraulic tube

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

35

492-11038

LOCK WASHER,3/8"

1шт.

36

425-106

NUT,3/8"-16, Cl 5

1шт.

37

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

BOLT - carriage, 1/2 NC x 2-1/2 inch

1шт.

38

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

39

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

3шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

42

1994993C1

TUBE,0.75" OD

- motor supply, zinc plated (See Note)

1шт.

See Figure Note.

1шт.

43

1994994C1

TUBE,0.75" OD

- motor supply, zinc plated (See Note)

1шт.

See Figure Note.

1шт.

44

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

1шт.
