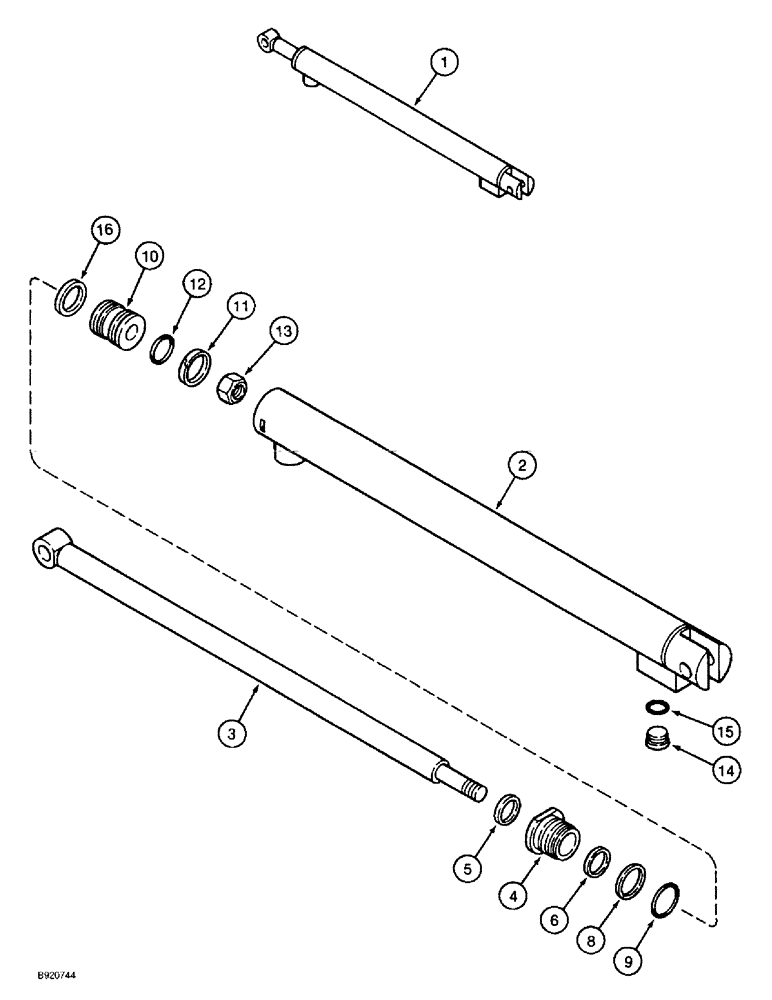

Запчасти Case IH 2022 (8-70) - BASKET COMPACTOR CYLINDER (07) - HYDRAULICS

1

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

CYLINDER ASSEMBLY - basket compactor (Replaces cylinder assembly 1343726C1)

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 1343726C1

1шт.

3

1285720C1

ROD

- piston

1шт.

4

1343723C1

GLAND

- cylinder

1шт.

5

532773R1

WIPER SEAL

WIPER - piston rod

1шт.

6

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

- piston rod, urethane

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 92611C3

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 x 1-1/2 inch, order kit 92611C3

1шт.

10

92608C1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

RING - piston seal, order kit 92611C3

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston seal, order kit 92611C3

1шт.

13

232-46310

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Used with cylinder assembly 1343726C1 Hex Soc, 3/4"-16 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD tube, used with cylinder assembly 1343726C1

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston, order kit 92611C3

1шт.

92611C3

SEAL KIT

KIT - seal

1шт.
