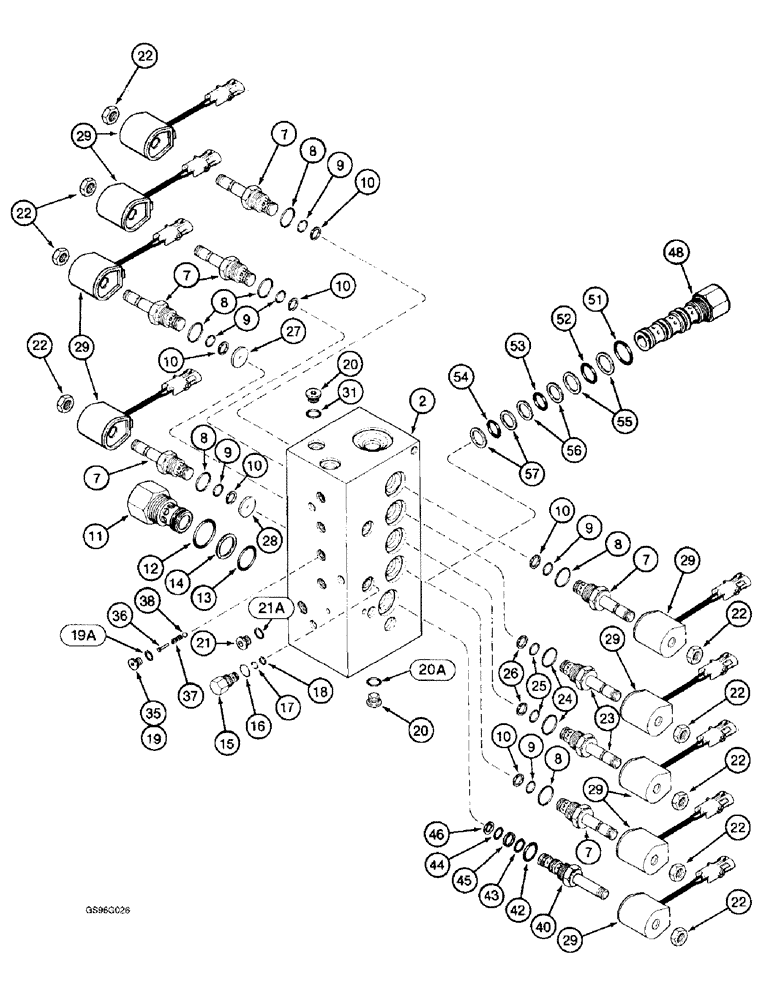

Запчасти Case IH 2022 (8-66) - BASKET MANIFOLD VALVE (07) - HYDRAULICS

1341926C1

VALVE

ASSEMBLY - basket manifold

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1341926C1

1шт.

1288972C1

SOLENOID VALVE

VALVE ASSEMBLY - two-way solenoid

6шт.

7

NSS

NOT SOLD SEPARAT

VALVE - two way solenoid, order valve assembly 1288972C1

1шт.

149942C1

SEAL KIT

KIT - seal replacement

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - solenoid, order kit 149942C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - solenoid, order kit 149942C1

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - backup, order kit 149942C1

1шт.

1288966C1

VALVE

ASSEMBLY - flow control

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE - flow control, order valve assembly 1288966C1

1шт.

1288954C1

SEAL KIT

KIT - seal replacement

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - flow control valve, order kit 1288954C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - flow control valve, order kit 1288954C1

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup, order kit 1288954C1

1шт.

87227C1

VALVE

ASSEMBLY - check

2шт.

15

NSS

NOT SOLD SEPARAT

VALVE - check, order valve assembly 87227C1

1шт.

149942C1

SEAL KIT

KIT - seal replacement

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - check valve, order kit 149942C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - check valve, order kit 149942C1

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - backup, order kit 149942C1

1шт.

19

278548

PLUG,Hex, 7/16"-20 ORB

5шт.

19a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

5шт.

20

9625178

PLUG,9/16" - 18 ORB

2шт.

21

71100209

PLUG,Hex Soc, 3/4"-16 ORB

4шт.

21a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

22

218-1253

BHD LOCK NUT,Blkhd, 1/2"-20

NUT - hex lock, bulkhead, 5/16 inch NF (Replaces nut 9403292)

9шт.

87252C1

SOLENOID VALVE

VALVE ASSEMBLY - two way solenoid

2шт.

23

NSS

NOT SOLD SEPARAT

VALVE - two way solenoid (SV2 stamped on hex)

1шт.

149942C1

SEAL KIT

KIT - seal replacement

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - solenoid, order kit 149942C1

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - solenoid, order kit 149942C1

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - backup, order kit 149942C1

1шт.

27

1288973C1

LARGE PLATE

DISC - orifice, 1/8 inch

1шт.

28

1288974C1

LARGE PLATE

DISC - orifice

1шт.

29

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt

9шт.

1341811C1

SPRING-CHECK

KIT - sense check

5шт.

35

NSS

NOT SOLD SEPARAT

PLUG - check sensing, order kit 1341811C1

1шт.

36

NSS

NOT SOLD SEPARAT

GUIDE - check sensing, order kit 1341811C1

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING - check sensing, order kit 1341811C1

1шт.

38

NSS

NOT SOLD SEPARAT

BALL - check sensing, order kit 1341811C1

1шт.

1341926C1

VALVE

ASSEMBLY - basket manifold, continued

1шт.

1340875C1

VALVE

ASSEMBLY - three way solenoid

1шт.

40

NSS

NOT SOLD SEPARAT

VALVE - three way solenoid, order valve assembly 1340875C1

1шт.

1260872C91

SEAL KIT

KIT - seal replacement

1шт.

42

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve, order kit 1260872C91

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve, order kit 1260872C91

1шт.

44

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve, order kit 1260872C91

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 1260872C91

1шт.

46

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 1260872C91

1шт.

1340838C1

PILOT VALVE

VALVE ASSEMBLY - pilot operated three-way

1шт.

48

NSS

NOT SOLD SEPARAT

VALVE - pilot operated three way, order valve assembly 1340838C1

1шт.

1341812C1

O-RING KIT

KIT - seal replacement

1шт.

51

NSS

NOT SOLD SEPARAT

O-RING - pilot operated valve, order kit 1341812C1

1шт.

52

NSS

NOT SOLD SEPARAT

O-RING - pilot operated valve, order kit 1341812C1

1шт.

53

NSS

NOT SOLD SEPARAT

O-RING - pilot operated valve, order kit 1341812C1

1шт.

54

NSS

NOT SOLD SEPARAT

O-RING - pilot operated valve, order kit 1341812C1

1шт.

55

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 1341812C1

2шт.

56

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 1341812C1

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 1341812C1

2шт.

20a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
