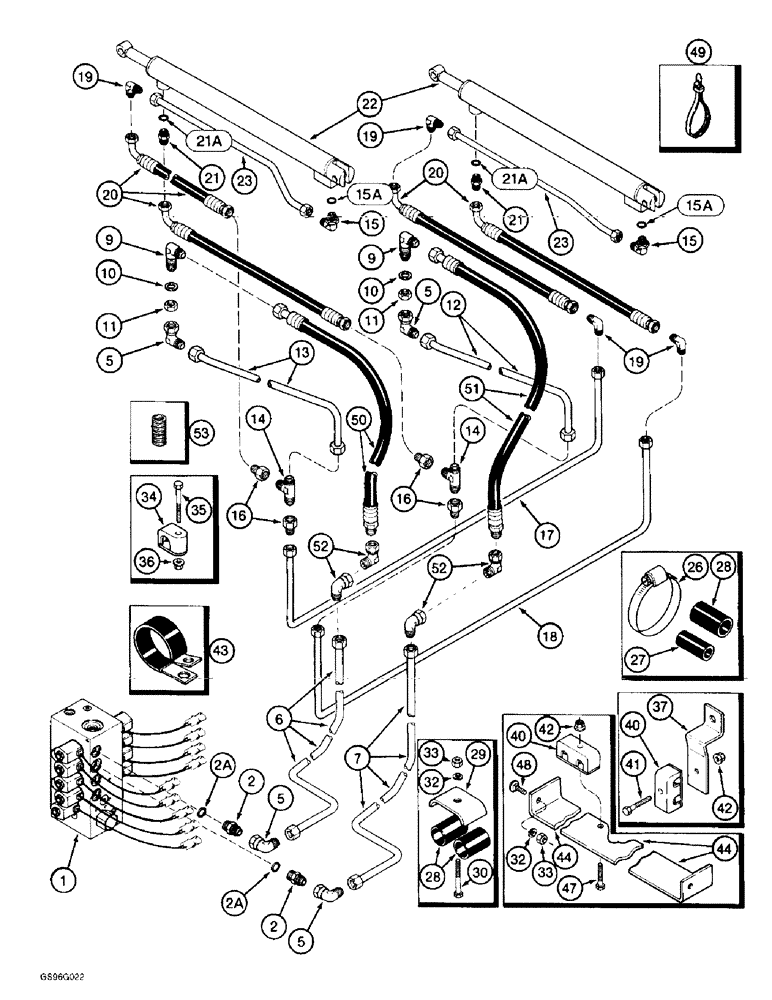

Запчасти Case IH 2022 (8-56) - COMPACTOR CYLINDER SYSTEM, 2022 COTTON PICKER (07) - HYDRAULICS

1

1341926C1

VALVE

ASSEMBLY - basket manifold, parts list page 8-67

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

5

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

4шт.

6

1345007C2

TUBE,0.625 mm OD, 790, 720 mm Length

- compactor lower, first, zinc plated

1шт.

7

1345006C2

TUBE,0.625 mm OD, 820, 210 mm Length

- compactor raise, first (Replaces tube 1345006C1)

1шт.

9

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, 7/8-14 inch flare x bulkhead flare (Replaces elbow 470783R1)

2шт.

10

615196R1

WASHER

- flat, 29/32 x 1-3/4 x 7/64 inch

2шт.

11

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, (Replaces nut 9403295) Blkhd, 7/8"-14

2шт.

12

1266222C2

TUBE

- compactor raise, second

1шт.

13

1266223C2

TUBE

- compactor lower, second

1шт.

14

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare (Replaces tee 9402983)

2шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss

2шт.

15a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

16

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

4шт.

17

1266201C3

HYD TUBE,0.5" OD, 885.2, 255.8 mm Length

TUBE - compactor lower, third (Replaces tube 1266201C2)

1шт.

18

1266200C3

HYD TUBE,0.5" OD, 820.9, 225.8 mm Length

TUBE - compactor raise, third (Replaces tube 1266200C2)

1шт.

19

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

(Replaces union 9402943) 90º, 3/4"-16, 37º x 3/4"-16, 37º

4шт.

20

1285374C3

HOSE

- compactor cylinder

4шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

21a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

22

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

CYLINDER ASSEMBLY - basket compactor, parts list page 8-71

2шт.

23

1285293C4

TUBE,0.5" OD, 496.9,53.8 mm Length

- compactor cylinder (Replaces tube 1285293C3)

2шт.

26

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adjustable, 2-9/16 - 3-1/2 inch diameter

2шт.

27

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

2шт.

28

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - 3/4 ID x 1-13/64 inch long

4шт.

29

165601C1

CLAMP

- reservoir drain tube

1шт.

30

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.

34

183822C1

CLAMP

- tube retaining

2шт.

35

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

1шт.

36

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

37

1288818C1

SUPPORT

BRACKET - tube support

2шт.

40

1301178C1

CLAMP

- tube retaining

4шт.

42

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

43

515-25508

CLAMP,2", Insul, 1/2" Bolt

- P-type, 2 inch ID

2шт.

44

87697C1

BRACKET

- compactor tube support

2шт.

47

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

48

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

49

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

4шт.

50

1285498C1

HOSE

- compactor supply, lower

1шт.

51

1285497C1

HOSE

- compactor supply, raise

1шт.

52

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

4шт.

53

1212902C1

INSULATOR

CONDUIT - 24 inch (610 mm) long, cut from 196249A1 bulk conduit below

2шт.

196249A1

CONDUIT

- bulk, 39-1/2 inch (1003 mm) long

1шт.

41

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
