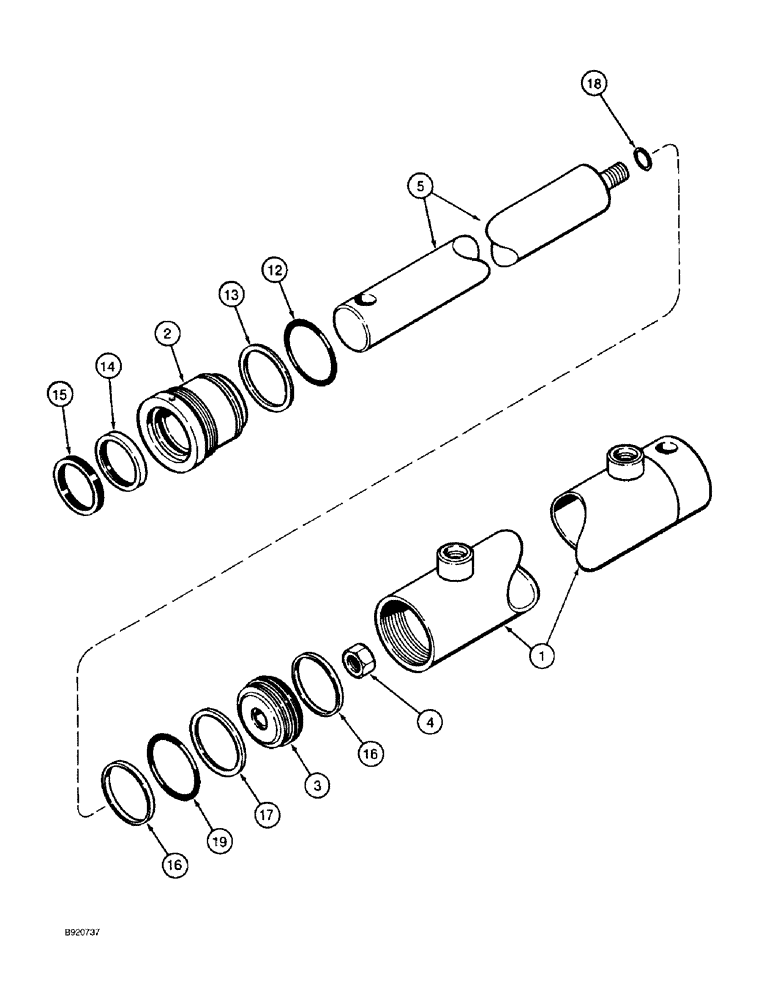

Запчасти Case IH 2022 (8-54) - BASKET LIFT MASTER CYLINDER (07) - HYDRAULICS

85183C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 (89) ID x 72 inch (1829 mm) stroke (See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 85183C1

1шт.

2

1957766C1

CYLINDER END CAP

GLAND - cylinder

1шт.

3

1957765C1

JACK PISTON

PISTON - cylinder

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

1957767C1

SEAL KIT

KIT - seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - cylinder sealing, order kit 1957767C1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, order kit 1957767C1

1шт.

14

NSS

NOT SOLD SEPARAT

U-CUP - cylinder, order kit 1957767C1

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 1957767C1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear, order kit 1957767C1

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston, order kit 1957767C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - cylinder sealing, order kit 1957767C1

1шт.

19

NSS

NOT SOLD SEPARAT

EXPANDER - cylinder, order kit 1957767C1

1шт.
