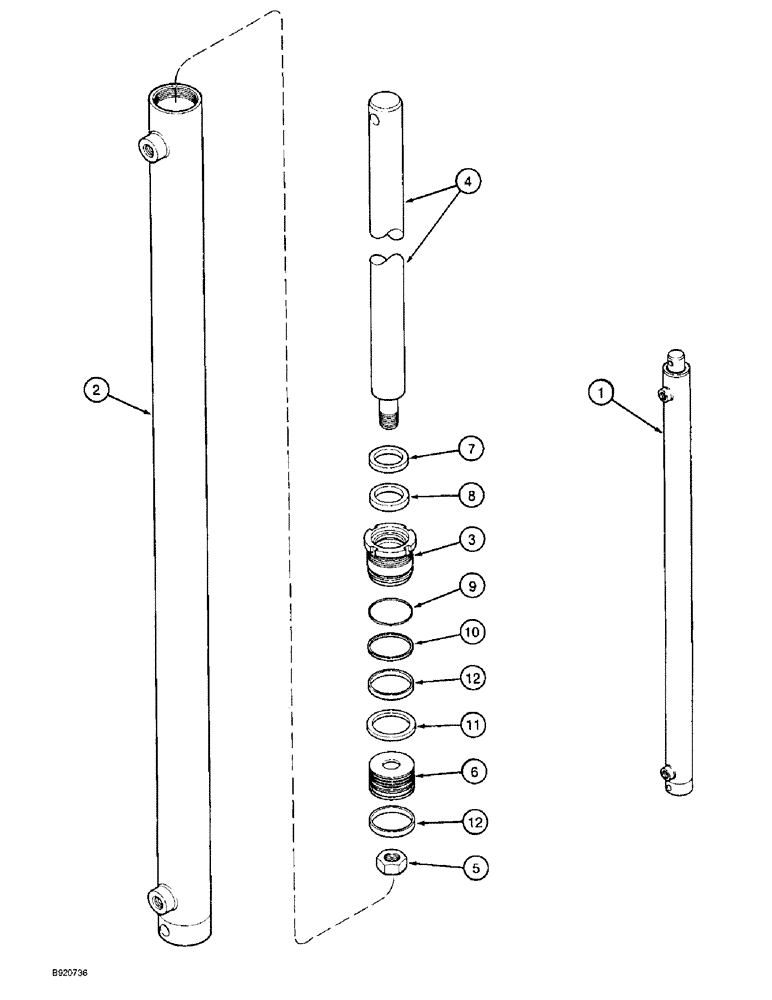

Запчасти Case IH 2022 (8-52) - BASKET LIFT MASTER CYLINDER (07) - HYDRAULICS

1

1282276C92

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 1828.8mm Stroke

CYLINDER ASSEMBLY - 3-1/2 (90) ID x 72 inch (1829 mm) stroke (See Note)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 1282276C92

1шт.

3

1286338C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

1286336C1

PISTON ROD

ROD - piston

1шт.

5

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, grade 8

1шт.

6

1286337C1

JACK PISTON

PISTON - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 1282390C1

1шт.

NOTE: Alternate with 85183C1, parts list page 8-55.

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod U-cup, order kit 1282390C1

1шт.

NOTE: Alternate with 85183C1, parts list page 8-55.

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - front head, order kit 1282390C1

1шт.

NOTE: Alternate with 85183C1, parts list page 8-55.

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 1282390C1

1шт.

NOTE: Alternate with 85183C1, parts list page 8-55.

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston, order kit 1282390C1

1шт.

NOTE: Alternate with 85183C1, parts list page 8-55.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - wear, order kit 1282390C1

2шт.

NOTE: Alternate with 85183C1, parts list page 8-55.

1шт.

1282390C1

SEAL KIT

KIT - seal replacement

1шт.

NOTE: Alternate with 85183C1, parts list page 8-55.

1шт.
