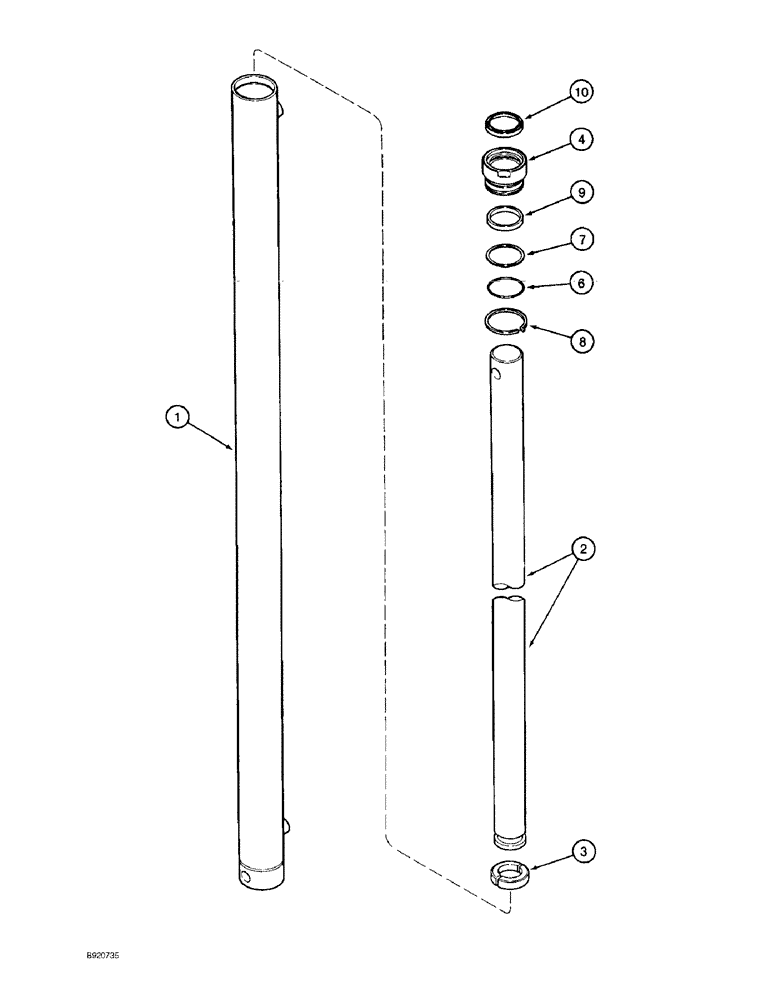

Запчасти Case IH 2022 (8-50) - BASKET LIFT SLAVE CYLINDER (07) - HYDRAULICS

85184C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 (64) ID x 72 inch (1829 mm) stroke (Replaces cylinder assembly 1282195C91)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 85184C1

1шт.

2

NSS

NOT SOLD SEPARAT

ROD - cylinder, order cylinder assembly 85184C1

1шт.

3

1957762C1

PISTON

- cylinder, two piece

1шт.

4

1957763C1

JACK HEAD

HEAD - cylinder

1шт.

1957764C1

SEAL KIT

KIT - seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - head sealing, order kit 1957764C1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, order kit 1957764C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - retaining wire, order kit 1957764C1

1шт.

9

NSS

NOT SOLD SEPARAT

U-CUP - cylinder, order kit 1957764C1

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 1957764C1

1шт.
