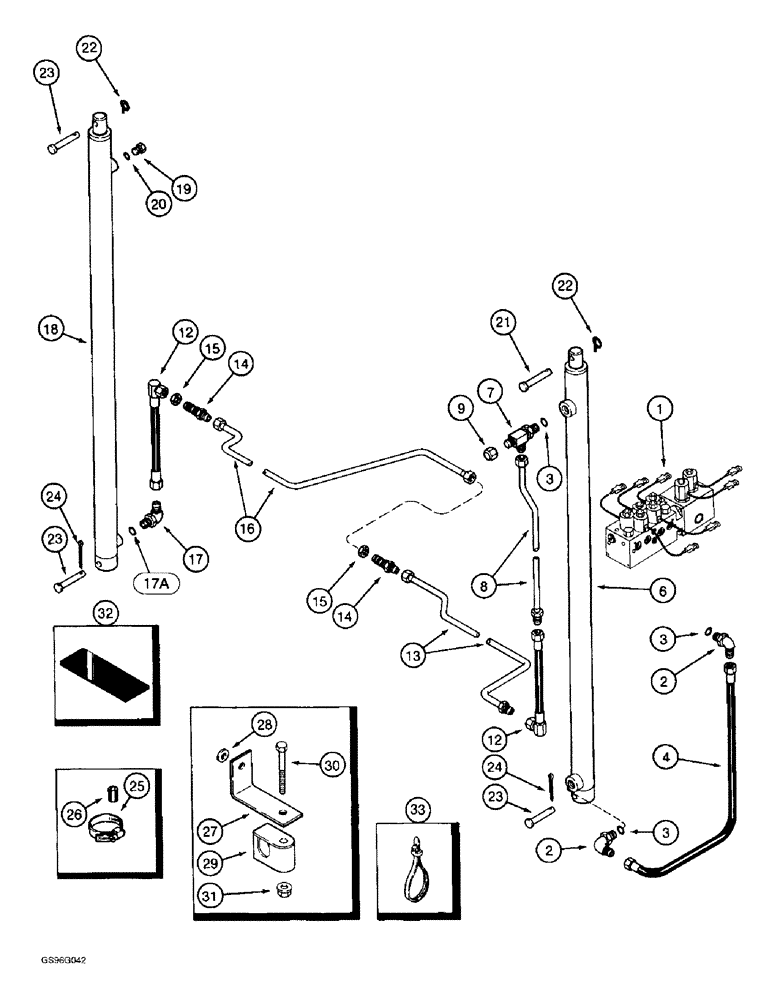

Запчасти Case IH 2022 (8-46) - BASKET LIFT CYLINDERS SYSTEM (07) - HYDRAULICS

1

1340837C2

VALVE

ASSEMBLY - manifold, parts list page 8-29

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adjustable O-ring boss

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

3шт.

4

1282499C1

HYDRAULIC HOSE,15.88 mm ID x 812.80 mm

- Basket lift master cylinder 15.88 mm ID x 812.80 mm

1шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - basket lift master, parts list page 8-53 and 8-55

1шт.

7

159484C91

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- special

1шт.

8

1285701C3

TUBE

- master cylinder slave port

1шт.

9

218-756

CAP,37 Degree, 7/8"-14

5/8 OD tube 37º, 7/8"-14

1шт.

12

1285372C2

HYDRAULIC HOSE,15.88 mm ID x 330.20 mm

- Basket lift slave cylinder 15.88 mm ID x 330.20 mm

2шт.

13

1285304C3

TUBE

- forward slave

1шт.

14

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

2шт.

15

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, (Replaces nut 9403295) Blkhd, 7/8"-14

2шт.

16

1285301C3

TUBE

- rear slave

1шт.

17

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree,7/8-14 flare x 3/4-16 inch adjustable O-ring boss (Replaces elbow 671942R1)

1шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - basket lift slave, parts list page 8-49 and 8-51

1шт.

19

214389

PLUG,3/4" - 16 ORB

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

A30338

PIN

- lock

2шт.

23

1288771C1

HEADED PIN

- pivot

4шт.

24

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

25

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

1шт.

26

163492C1

RUBBER INSULATOR

INSULATOR - rubber, 5/8 inch, if used

1шт.

26

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

INSULATOR - rubber, 3/4 inch, if used

1шт.

27

288201C1

SUPPORT

BRACKET - clamp support

1шт.

28

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

29

183822C1

CLAMP

- tube

2шт.

30

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

32

1338839C1

BAND

PAD - hose

1шт.

33

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

3шт.
