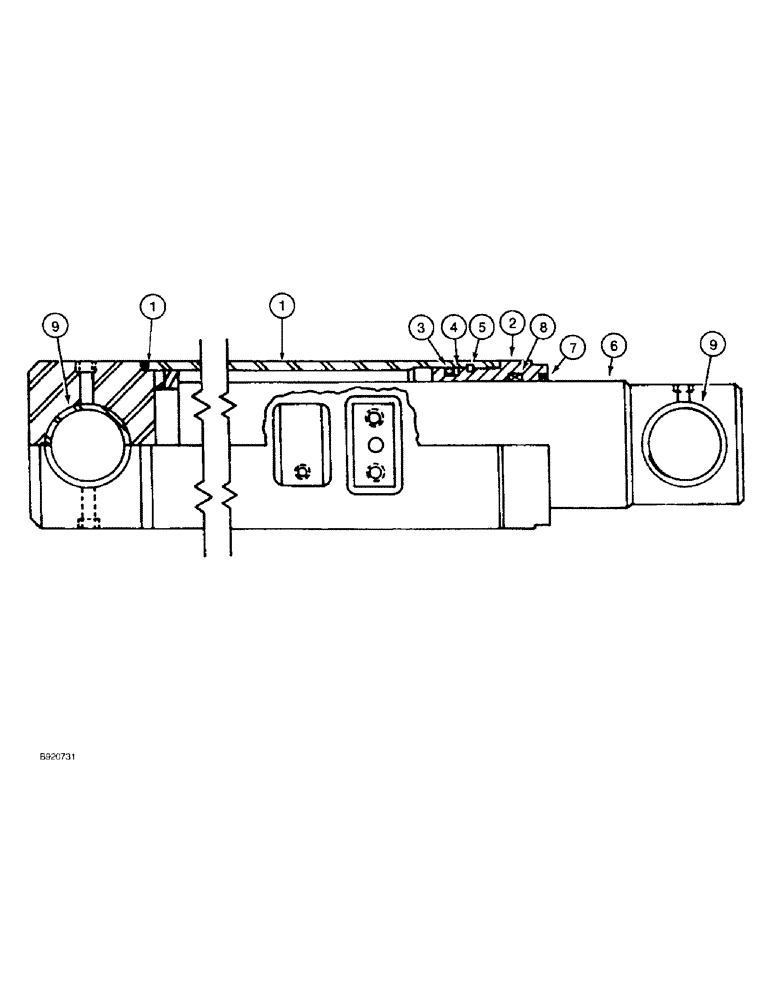

Запчасти Case IH 2022 (8-38) - DRUM LIFT CYLINDER (07) - HYDRAULICS

85182C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 (89) ID x 9-3/16 inch (233 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order cylinder assembly 85182C1

1шт.

2

1980306C1

GLAND

- cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland, order kit 1980307C1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, order kit 1980307C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, gland, order kit 1980307C1

1шт.

6

1980305C1

PISTON ROD

ROD - piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 1980307C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod, order kit 1980307C1

1шт.

9

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot

4шт.

1980307C1

SEAL KIT

KIT - seal

1шт.
