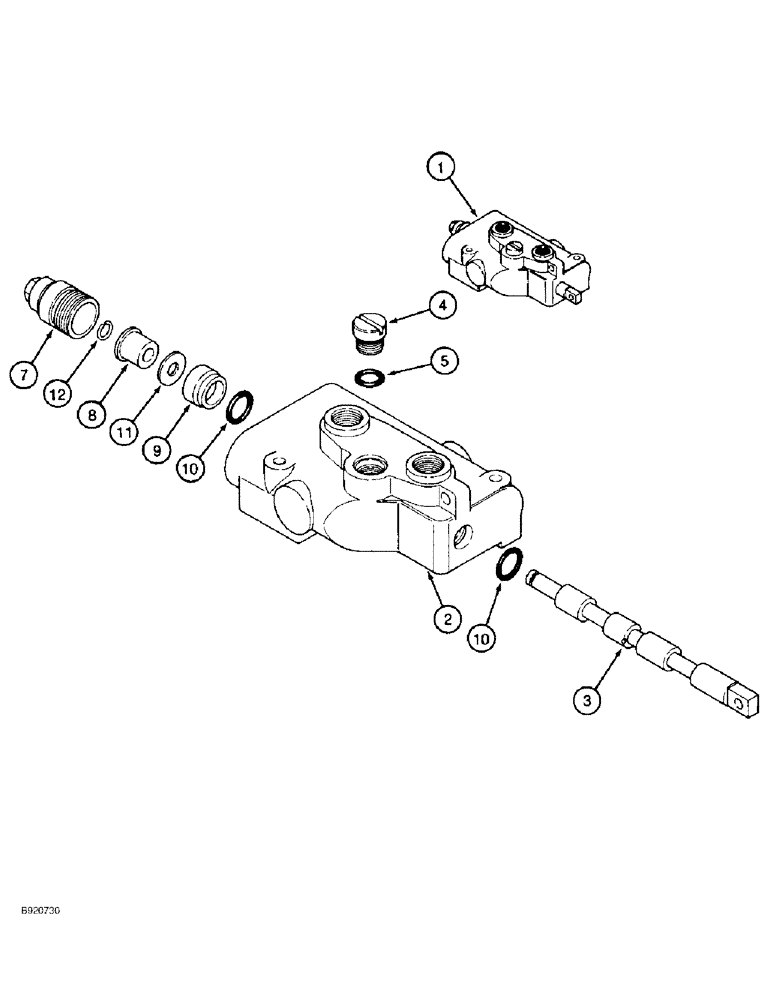

Запчасти Case IH 2022 (8-34) - DRUM HEIGHT CONTROL VALVE (07) - HYDRAULICS

1

92667C92

VALVE

ASSEMBLY - drum height control

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 92667C92

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve, order valve assembly 92667C92

1шт.

4

H229203

PLUG

- valve, 1/2 inch NF

1шт.

4

201844C91

PLUG

ASSEMBLY - valve, no longer available, order plug H229203

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - plug, order plug assembly 201844C91

1шт.

87144C1

VALVE POPPET

KIT - spool retainer

1шт.

7

NSS

NOT SOLD SEPARAT

CAP - valve, order kit 87144C1

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - valve, order kit 87144C1

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - spool, order kit 87144C1

1шт.

10

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

WASHER - bushing, order kit 87144C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining, order kit 87144C1

1шт.
