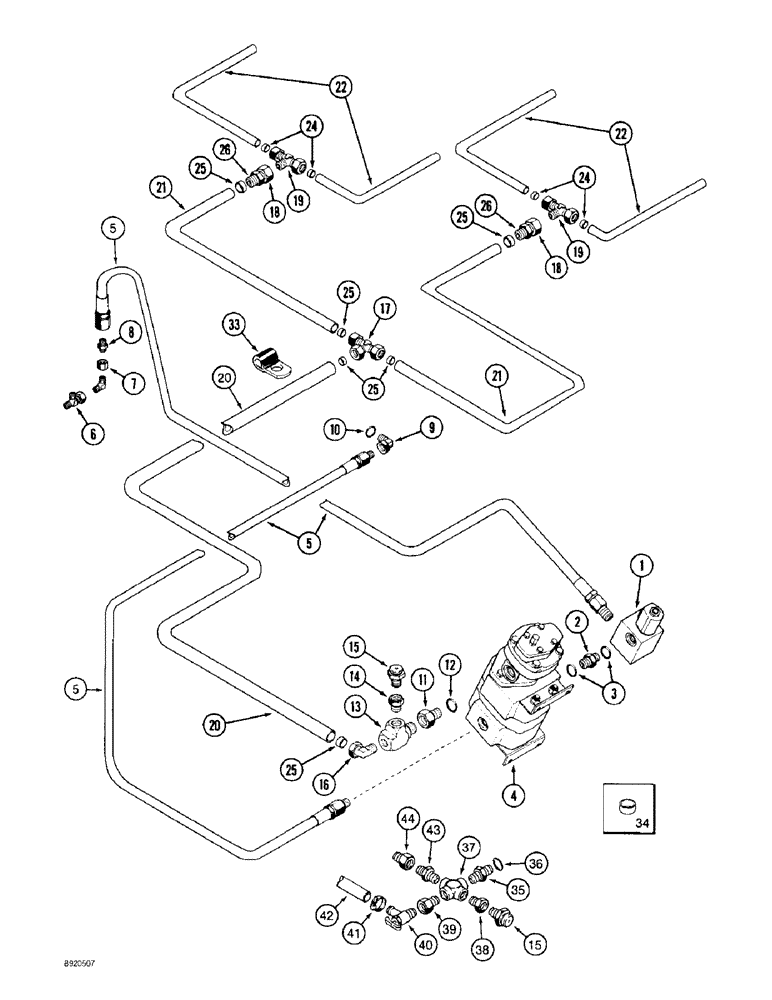

Запчасти Case IH 2022 (8-24) - DRUM BAR LUBRICATION PLUMBING SYSTEM (07) - HYDRAULICS

1

1986774C1

VALVE

- lubrication

1шт.

2

1990051C1

FITTING

CONNECTOR ASSEMBLY - SAE No. 8, O-ring swivel

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

REF

INSTRUCTION

PUMP - system supply, see page 8-23

1шт.

5

1990006C1

HOSE

- system supply and return

2шт.

6

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

7

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - hex, 1-1/16 inch NF

1шт.

8

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducing, 3/4 tube OD x 3/4-16 inch flare

1шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

- straight, 7/8-14 O-ring boss x 1/2 inch female PT

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- street, 1/2 inch female PT branch x female PT x PT

1шт.

14

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

15

37290D

LUBE NIPPLE,1/4"-18 NPT x 1.25" lg, But Hd

FITTING - special, 1/4 inch NPTF

1шт.

16

1990008C1

FITTING

ELBOW - 90 degree, special, 1/2 inch female PT x 11/16-20 straight thread, if used

1шт.

443992

REDUCER,1/2"-14 NPTF x 3/8"-18 NPTF

NIPPLE - pipe, 1/2 x 3/8 inch

1шт.

17

1990009C1

FITTING

TEE - compression, 2044 Cotton Picker

1шт.

18

1990010C1

FITTING

ADAPTER - compression, special, 2022 Cotton Picker

1шт.

18

1990010C1

FITTING

ADAPTER - compression, special, 2044 Cotton Picker

2шт.

19

1990011C1

FITTING

TEE - compression, 2022 Cotton Picker

1шт.

19

1990011C1

FITTING

TEE - compression, 2044 Cotton Picker

2шт.

20

NSS

NOT SOLD SEPARAT

HOSE - pump outlet, 74 inch (1880 mm) long, cut from bulk hose 1990211C1 below

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - tee to outlet, 2044 Cotton Picker, 80 inch (2032 mm) long, cut from bulk hose 1990211C1 below

2шт.

22

NSS

NOT SOLD SEPARAT

HOSE - drum inlet, 2044 Cotton Picker, 20 inch (508 mm) long, cut from bulk hose 1990219C1 below

4шт.

22

NSS

NOT SOLD SEPARAT

HOSE - drum inlet, 2022 Cotton Picker, 75 inch (1905 mm) long, cut from bulk hose 1990219C1 below

2шт.

1990219C1

HYDRAULIC HOSE,25.40 mm ID x 2388.00 mm

Cut From Bulk Hose

1шт.

24

1990254C1

OLIVE

INSERT - nylon, 3/8 inch, 2022 Cotton Picker

2шт.

24

1990254C1

OLIVE

INSERT - nylon, 3/8 inch, 2044 Cotton Picker

4шт.

25

1990255C1

OLIVE

INSERT - nylon, 1/2 inch, 2022 Cotton Picker

2шт.

25

1990255C1

OLIVE

INSERT - nylon, 1/2 inch, 2044 Cotton Picker

5шт.

26

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch female PT, 2022 Cotton Picker

1шт.

26

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch female PT, 2044 Cotton Picker

2шт.

1990211C1

HOSE,100' Bulk

100' Bulk

1шт.

1990219C1

HYDRAULIC HOSE,25.40 mm ID x 2388.00 mm

Cut From Bulk Hose

1шт.

33

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

34

186646C1

SPACER,5/8" Tube x 15/16"

- 5/8 x 15/16 inch, 2022 Cotton Picker

1шт.

35

218-5441

HYD CONNECTOR,7/8" - 14 ORB x 1/2" - 14 NPT

ADAPTER - straight, 7/8-14 O-ring boss x 1/2 inch PT

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

37

217-1203

4 WAY CONNECTION,Female, 1/2"-14

CROSS - 1/2 inch female PT, 2022 Cotton Picker, if used

1шт.

38

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

- street, 45 degree, 3/4 inch PT x female PT

1шт.

39

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

if used 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

40

301803R1

SHUT-OFF VALVE

VALVE - shutoff, 2022 Cotton Picker, if used

1шт.

41

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable, 2022 Cotton Picker, if used #24

1шт.

42

1329977C2

HOSE,15.75 mm ID x 840.00 mm

Bleed; Order 1977295C1, and Cut to Required Length; See Below 15.75 mm ID x 840.00 mm

1шт.

43

443992

REDUCER,1/2"-14 NPTF x 3/8"-18 NPTF

- special, 1/2 to 3/8 inch, 2022 Cotton Picker, if used

1шт.

44

1990010C1

FITTING

ADAPTER - compression, special, 2022 Cotton Picker, if used

1шт.

1977295CX

LARGE HOSE

HOSE - bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long

1шт.
