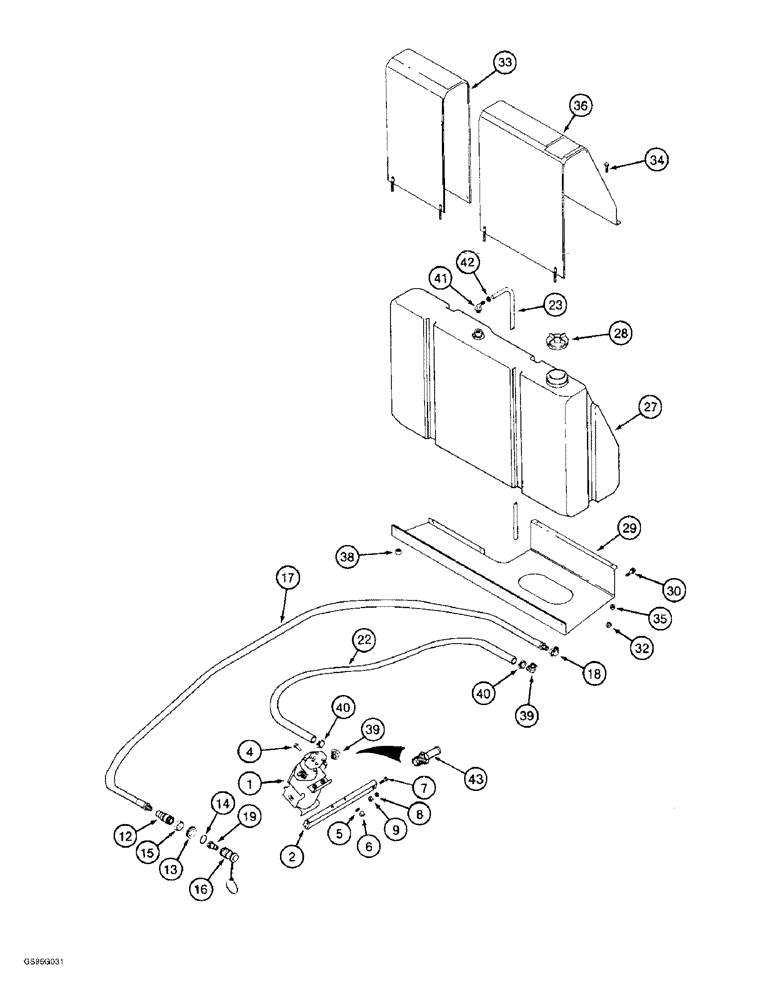

Запчасти Case IH 2022 (8-22) - DRUM BAR LUBRICATION RESERVOIR SYSTEM (07) - HYDRAULICS

1

1988896C2

PUMP, HYDRAULIC

PUMP - system supply, component parts not service separately, 225 PSI (Replaces pump 1988896C1)

1шт.

250706A2R

REMAN-HYD PUMP

2022, 2044, Both (11/90-), Reman for New PN 1988896C2

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

1988883C1

SUPPORT

CHANNEL - pump mounting support

2шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

8

492-11038

LOCK WASHER,3/8"

5шт.

9

425-106

NUT,3/8"-16, Cl 5

5шт.

12

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway

1шт.

13

A139805

RETAINER

- coupling

1шт.

14

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

2шт.

15

1994808C2

SPACER

- female coupling

1шт.

16

1954133C1

PLUG

PLUG - coupling, dust

1шт.

17

1990210C1

HYDRAULIC HOSE,12.70 mm ID x 3810.00 mm, SAE 100R6 Class 1

Reservoir Fill 12.70 mm ID x 3810.00 mm, SAE 100R6 Class 1

1шт.

18

217-1018

ELBOW,3/4" - 14 Male x 1/2" - 14 Female

- street, 90 degree, 3/4 PT x 1/2 inch female PT

1шт.

19

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - pump inlet, 116 inches (2946 mm) long, cut from bulk hose 1990222C1 below

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - tank overflow, 130 inches (3302 mm) long, cut from bulk hose 665181R1 below

1шт.

27

1990300C1

OIL RESERVOIR

RESERVOIR - bar lubrication

1шт.

28

1990367C1

PLUG

CAP - reservoir, 3-1/2 inch

1шт.

29

1984439C1

SUPPORT

SADDLE - reservoir

1шт.

30

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

1984443C1

STRAP

- reservoir hold down

1шт.

34

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

36

1990017C1

STRAP

- reservoir, hold down

1шт.

38

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

39

134271C1

ELBOW

- 90 degree, 1 stem x 3/4 inch PT

2шт.

40

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

41

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch

1шт.

42

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

1шт.

43

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

ADAPTER - straight, 1 stem end x 3/4 inch PT

1шт.

1990222C1

HYDRAULIC HOSE,25.40 mm ID x 15240.00 mm Bulk, SAE 100R4 Class 4

25.40 mm ID x 15240.00 mm Bulk, SAE 100R4 Class 4

1шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.
