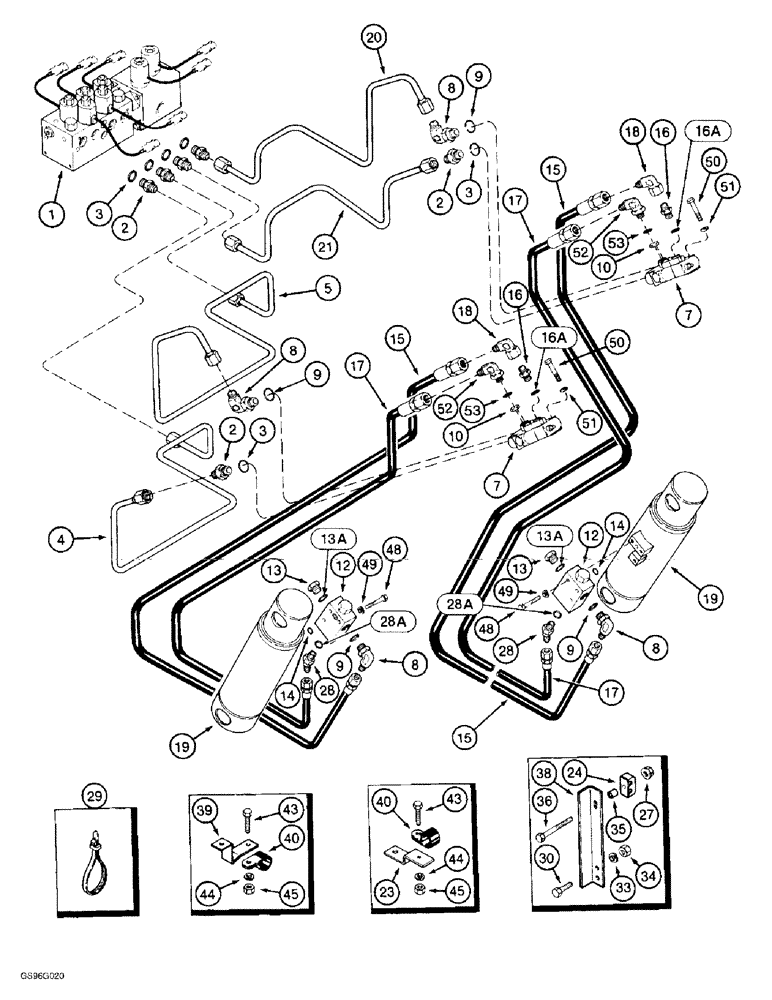

Запчасти Case IH 2022 (8-20) - DRUM CONTROL VALVES AND LIFT CYLINDER SYSTEM (07) - HYDRAULICS

1

1340837C2

VALVE

ASSEMBLY - manifold, parts list page 8-29

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces connector 9410203)

6шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

4

1338463C1

HYD TUBE

TUBE - right-hand drum manual supply

1шт.

5

1338462C1

HYD TUBE

TUBE - right-hand automatic supply

1шт.

7

92667C92

VALVE

ASSEMBLY - drum height control, parts list page 8-35

2шт.

8

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

10

1288998C3

PLATE

- orifice, 0.081 inch diameter

2шт.

10

1288997C2

LARGE PLATE

PLATE - orifice, 0.067 inch diameter

2шт.

12

1346043C1

VALVE, CHECK

VALVE ASSEMBLY - pilot operated check, parts list page 8-27

2шт.

13

214389

PLUG,3/4" - 16 ORB

2шт.

13a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

129672C2

HYDRAULIC HOSE

HOSE - 39 inch (991 mm) long, hydraulic

2шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

16a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

17

1317971C1

HOSE ASSY.

HOSE - steering hand pump, right-hand

2шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY - drum lift, parts list page 8-37 or 8-39

2шт.

20

1338464C1

HYD TUBE

TUBE - left-hand drum automatic supply

1шт.

21

1338465C1

HYD TUBE

TUBE - left-hand drum manual supply

1шт.

23

1288791C1

SUPPORT

BRACKET - clamp supply

1шт.

24

1301178C1

CLAMP

- tube

2шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

28

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adjustable O-ring boss

2шт.

28a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

29

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

33

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

34

425-106

NUT,3/8"-16, Cl 5

4шт.

35

354260R1

SPACER,1/8" Pipe x 7/16"

- clamp

2шт.

36

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

38

87686C1

BRACKET

- drum supply tubes

2шт.

39

1288818C1

SUPPORT

BRACKET - tube support

1шт.

40

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

P-type (Replaces clamp 299608C1) 1 1/4", Insul, 1/2" Bolt

2шт.

43

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

44

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

45

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

48

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

6шт.

49

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

50

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

51

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

52

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

2шт.

53

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
