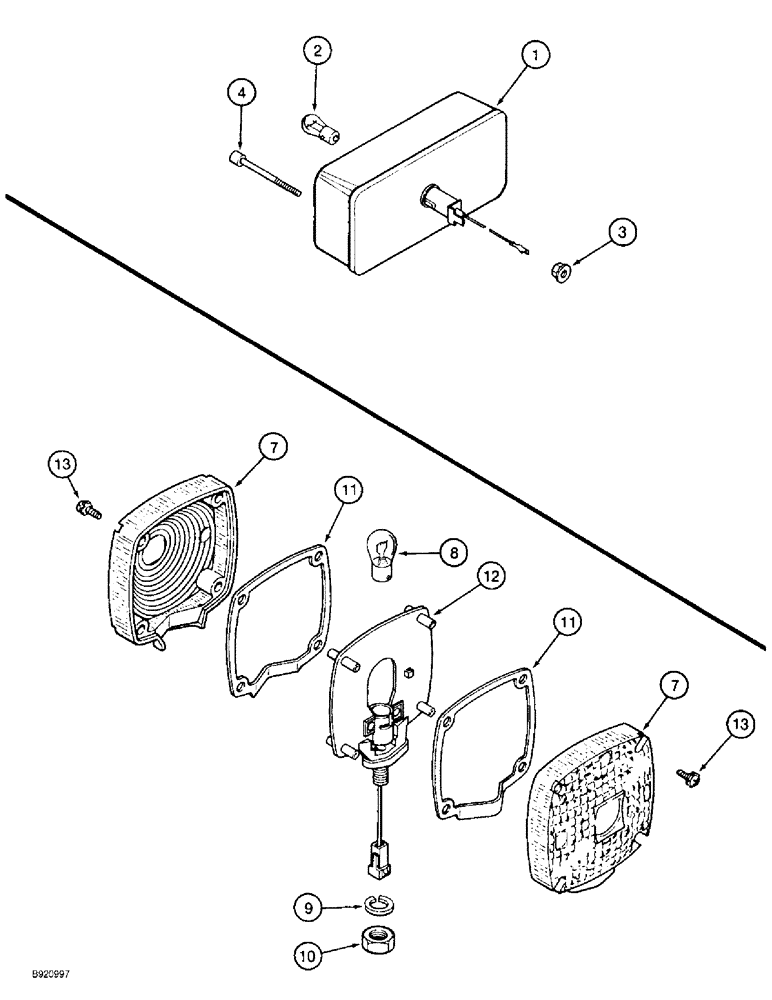

Запчасти Case IH 2022 (4-58) - WARNING LAMPS (06) - ELECTRICAL SYSTEMS

130882C91

LAMP

LAMP ASSEMBLY - warning, rear

2шт.

1

130883C1

LENS

- amber

1шт.

2

A41264

BULB,#1156, 12V

Lamp (Replaces bulb 9417866 ) #1156, 12V

1шт.

3

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

4

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

- machine, pan Phillips, No. 10 NC x 2-1/4 inch

4шт.

83885C91

LAMP

ASSEMBLY - warning, side, no longer available, order kit 192051A1 below

2шт.

7

537012R1

LENS

- amber

2шт.

8

A41264

BULB,#1156, 12V

Lamp (Replaces bulb 9417866 ) #1156, 12V

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - lens, order lamp assembly 83885C91

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp, order lamp assembly 83885C91

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - slotted, No. 8 x 3/4 inch, order lamp assembly 83885C91

8шт.

192051A1

SERVICE KIT

KIT - warning lamp, includes instructions

1шт.

A44201

LIGHT ASSY.

LAMP - warning

1шт.

377630C1

CONNECTOR, ELEC

CONNECTOR - warning lamp

1шт.
