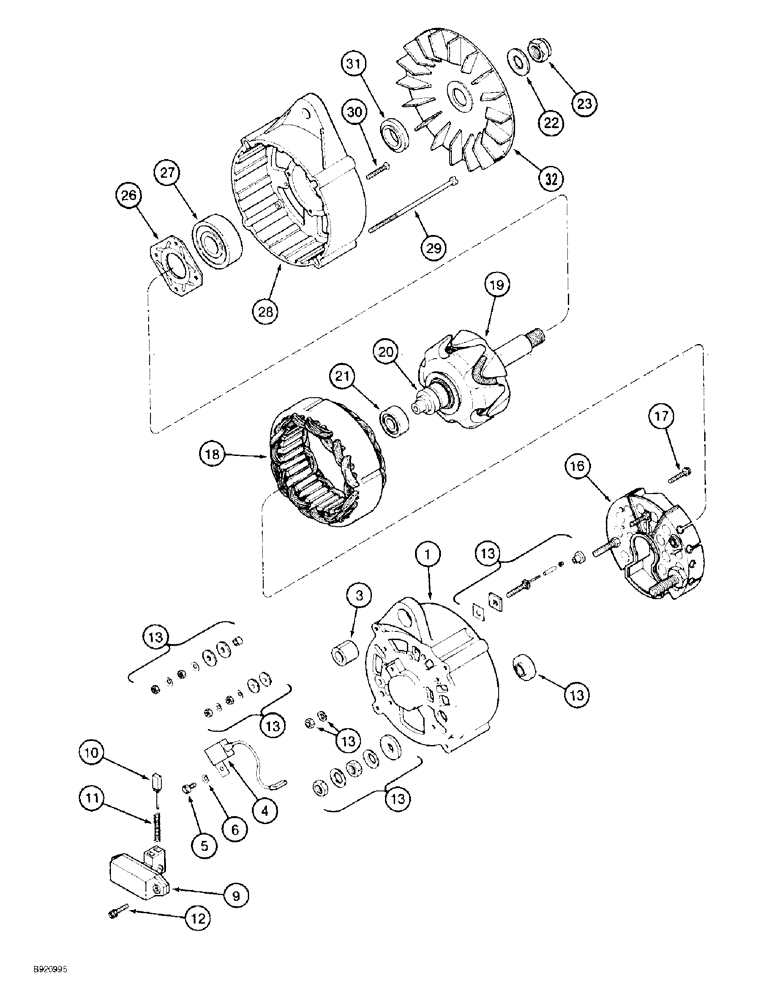

Запчасти Case IH 2022 (4-52) - ALTERNATOR ASSEMBLY, 110 AMPERE (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
91448C2
ALTERNATOR
ALTERNATOR ASSEMBLY - engine, 110 ampere (Replaces alternator assembly 91448C1)
1шт.
91448C2R
REMAN-ALTERNATOR
Reman for New PN 91448C2
1шт.
91448C2C
CORE-ALTERNATOR
Return Part Number
1шт.
91448C2GV
ALTERNATOR
Value, 110 Amp
1шт.
125849A1R
REMAN-ALTERNATOR
Remanufactured ALTERNATOR, 12 volt 135 ampere
1шт.
125849A1C
CORE-ALTERNATOR
Return Part Number
1шт.
125849A1GV
ALTERNATOR
Value, 12 Volt, 135 Amp
1шт.
1
1964731C1
HOUSING
HOUSING - collector ring end
1шт.
3
1964737C1
BUSHING,13.5mm ID x 20mm OD x 20mm L
BUSHING - expansion
1шт.
5
684857C1
SCREW
SCREW - fillister head, capacitor retaining
1шт.
6
A186196
WASHER
WASHER - special, retaining screw
1шт.
9
111899A1
REGULATOR
REGULATOR ASSEMBLY - voltage (Replaces regulator assembly 1964733C1 )
1шт.
10
3079394R91
BRUSH SET
SET - brush, alternator
1шт.
11
1964734C1
SPRING
SPRING - compression
2шт.
12
A186194
SCREW,M4 x 18mm
SCREW, hex flange, special
2шт.
13
1964738C1
REPAIR KIT
KIT, REPAIR, Terminal hardware
1шт.
17
A187504
SCREW
BOLT - hex flange, special (Replaces bolt 1964749C1 )
2шт.
18
1964735C1
STATOR
STATOR - alternator
1шт.
19
1964728C1
ROTOR
ROTOR - alternator
1шт.
20
3079410R1
RING
RING - collector
1шт.
21
1964730C1
BALL BEARING,12mm ID x 32mm OD x 14mm W
BEARING - ball
1шт.
22
495-51066
WASHER,9/16" x 1 1/4" x .1"
WASHER - flat, 21/32 x 1-1/4 x 3/32 inch
1шт.
23
231-46110
LOCK NUT,5/8"-18, GB
NUT - hex, self-locking, 5/8 inch NF
1шт.
26
1964727C1
PLATE
PLATE - bearing retaining
1шт.
27
1964726C1
BALL BEARING,22.2mm ID x 56mm OD x 21mm W
BEARING - ball, drive end
1шт.
28
1964725C1
HOUSING
HOUSING - drive end
1шт.
29
1964748C1
SCREW
BOLT - fillister head, special
4шт.
30
1964750C1
SCREW
SCREW - machine, flat head, special
4шт.
31
1964729C1
SPACER
SPACER - ring
1шт.
32
1964736C1
FAN
FAN - alternator
1шт.
Выбрано товаров: 32
