Запчасти Case IH 2022 (4-50) - STARTER MOUNTING (06) - ELECTRICAL SYSTEMS

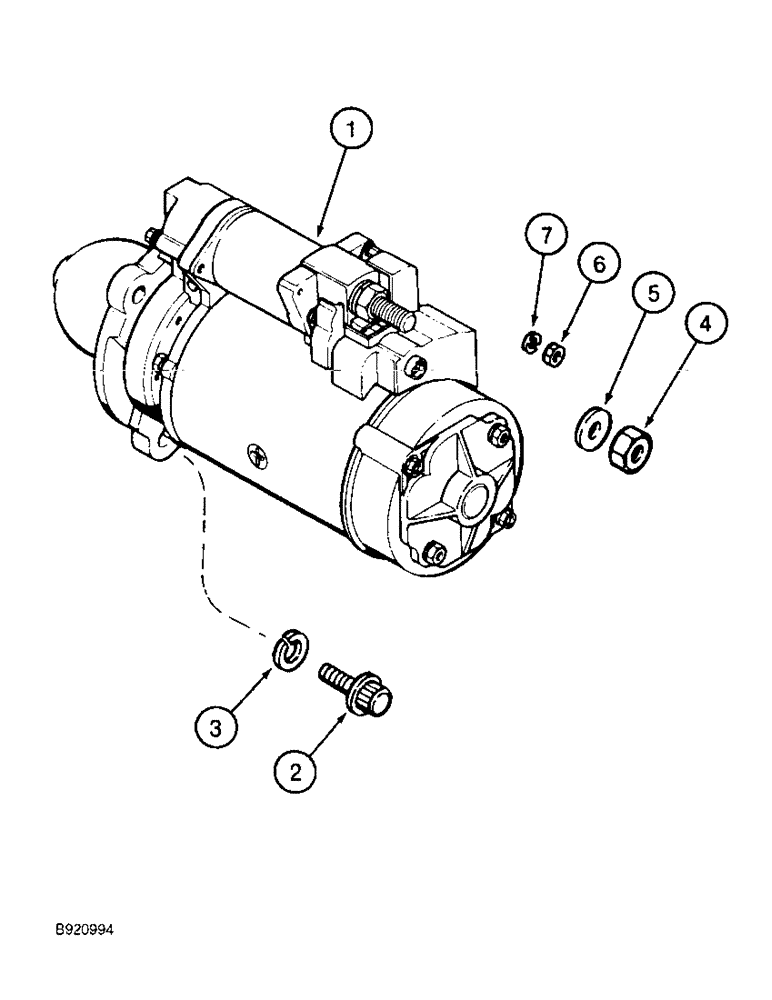

Схема запчастей Case IH 2022 - (4-50) - STARTER MOUNTING (06) - ELECTRICAL SYSTEMS
6
2
3
1
7
5
4

Артикул

Название

Примечание

Количество

1

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list page 4-55

1шт.

1

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC187728

CORE-STARTER

Return Part Number

1шт.

1

A187728GV

STARTER MOTOR

Value

1шт.

2

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

BOLT - 12 point flange, 12 - 1.75 x 35 mm, class 12.9

3шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

5

495-11053

WASHER,1/2", SAE

WASHER, (17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

6

225-14210

NUT,#10-32

NUT, #10-32

1шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Выбрано товаров: 10
