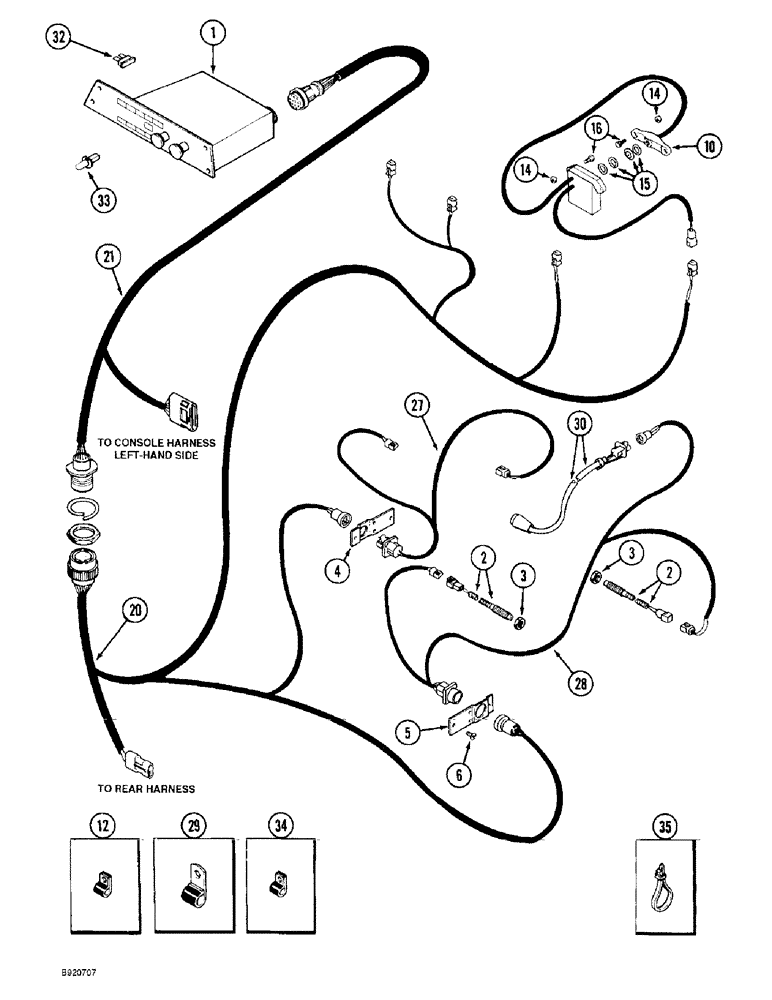

Запчасти Case IH 2022 (4-28) - SYSTEM MONITOR, 2022 COTTON PICKER (06) - ELECTRICAL SYSTEMS

1

1987341C1

CASE

GAUGE - monitor system, new

1шт.

1

1935120C1

REMAN-ELECT GAUGE

GAUGE - monitor system, remanufactured, North America only, no longer available, order new gauge 1987341C1 above

1шт.

1

1935119C1

CORE GAUGE ELECT

GAUGE CORE - monitor, use this number when returning monitor core for credit

1шт.

2

1983681C1

SENSOR

- transducer, rotor speed

4шт.

3

84116C1

NUT

- hex, self-locking, 3/4 inch NC

4шт.

4

1988723C1

SUPPORT

BRACKET - monitor

1шт.

5

1988794C1

SUPPORT

BRACKET - monitor

1шт.

6

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

6шт.

10

1983618C2

SENSOR

- cotton flow

4шт.

12

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

- harness (Replaces clamp R54362 )

8шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

40шт.

15

83901C1

PACKAGE

CAP - lens

8шт.

16

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

Tunnel chain Sltd Serr Truss Hd, 1/4"-20 x 1"

16шт.

20

1987371C2

HARNESS

- monitor, chassis

1шт.

21

1983537C1

HARNESS

- monitor, cab

1шт.

27

1983613C1

HARNESS

- monitor, drum

1шт.

28

1987333C1

HARNESS

- monitor, drum with tether

1шт.

29

371036R1

CLIP

CLAMP - retaining, 11/32 inch ID, if used

8шт.

29

362123R1

CLIP

- retaining, 15/32 inch ID, if used

14шт.

30

1983416C2

SWITCH

- remote tether

1шт.

32

A149796

FUSE

- violet, 3 ampere, monitor

1шт.

33

A48888

BULB

- lamp, No. 73

11шт.

34

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- P-type, chassis harness

2шт.

35

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Monitor harness

6шт.
