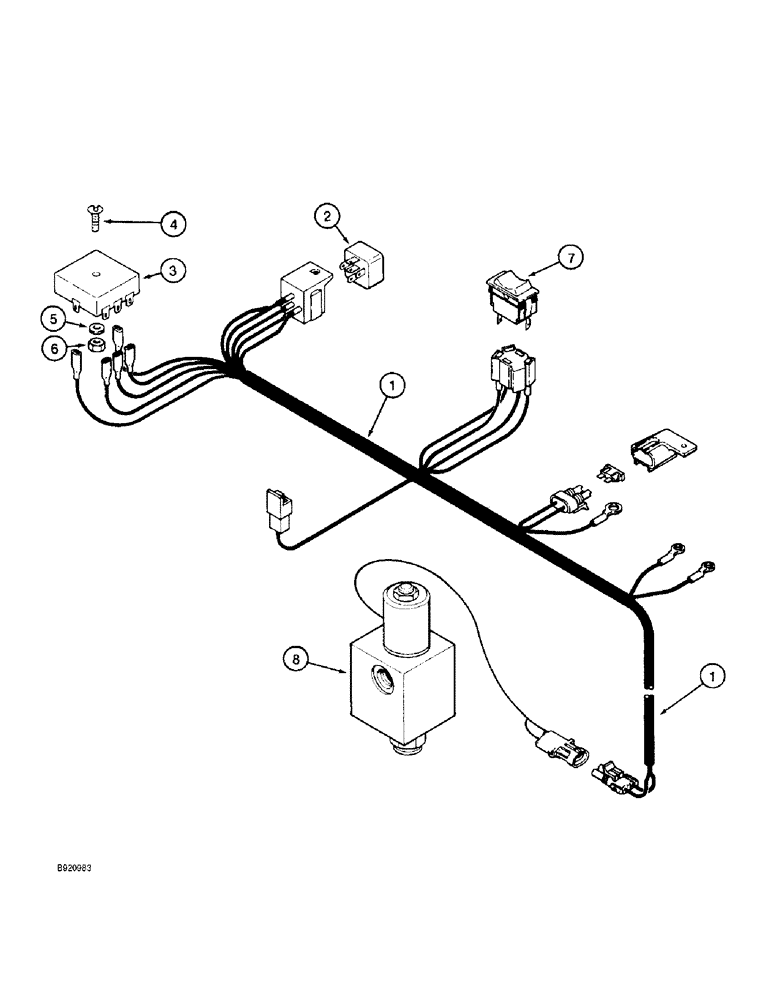

Запчасти Case IH 2022 (4-24) - BAR LUBRICATION HARNESS (06) - ELECTRICAL SYSTEMS

1

1990004C1

HARNESS

- bar lubrication

1шт.

2

1983394C2

RELAY

- mini, 12 volt, electrical

1шт.

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

1шт.

3

1990005C1

SWITCH

- timer pump, adjustable seconds

1шт.

4

473-12520

SCREW,FLAT, 1/4" - 20 x 1-1/4"

- slotted head, flat, 1/4 NC x 1-1/4 inch

1шт.

5

495-31022

WASHER,#10

1шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

7

1983204C1

SWITCH

- rocker, oiler

1шт.

8

1986774C1

VALVE

- lubrication, see page 8-25

1шт.
