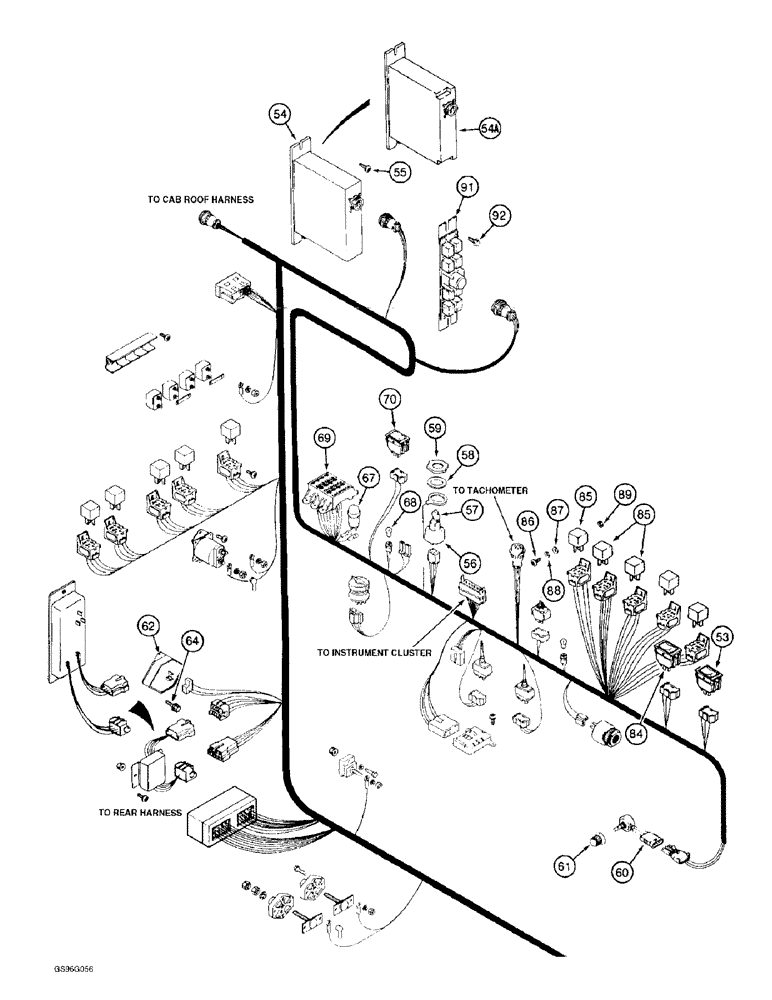

Запчасти Case IH 2022 (4-20) - CONSOLE HARNESS, RIGHT-HAND SIDE, WITHOUT SEPARATE OPERATORS PRESENCE SWITCH HARNESS (06) - ELECTRICAL SYSTEMS

53

245855C1

SWITCH

- rocker

1шт.

54

245502C2

CASE

CONTROL - compactor, no longer available, order module 1987595C2 below

1шт.

54a

1987595C2

CASE

MODULE - compactor control (Replaces module 1987595C1)

1шт.

55

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

56

1252476C1

SWITCH

- ignition

1шт.

57

131313C1

KEY, IGNITION

KEY - ignition

1шт.

58

375431R1

LOCK WASHER

- flat, special

1шт.

59

365502R1

NUT

- flat hex, special

2шт.

60

245385C1

POTENTIOMETER,1000 Ohm

Header Height Control 1000 Ohm

1шт.

61

1345235C1

BUTTON

KNOB - control

1шт.

62

245835C1

SUPPRESSOR

- central load dump, if used

1шт.

64

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

67

453453C1

SWITCH

- push button, ether start

1шт.

68

A14553

BULB

- No. 57

6шт.

69

REF

INSTRUCTION

BLOCK - fuse, parts list page 4-35

1шт.

70

245012C1

SWITCH

- rocker, 4 wheel drive

1шт.

84

92148C1

SWITCH

- fan

1шт.

85

1983394C2

RELAY

- mini, 12 volt, electrical

3шт.

86

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

1шт.

87

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

1шт.

88

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

89

225-14110

NUT,#10-24

1шт.

91

1983419C3

CONTROL UNIT

MODULE - operator presence system

1шт.

92

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.
