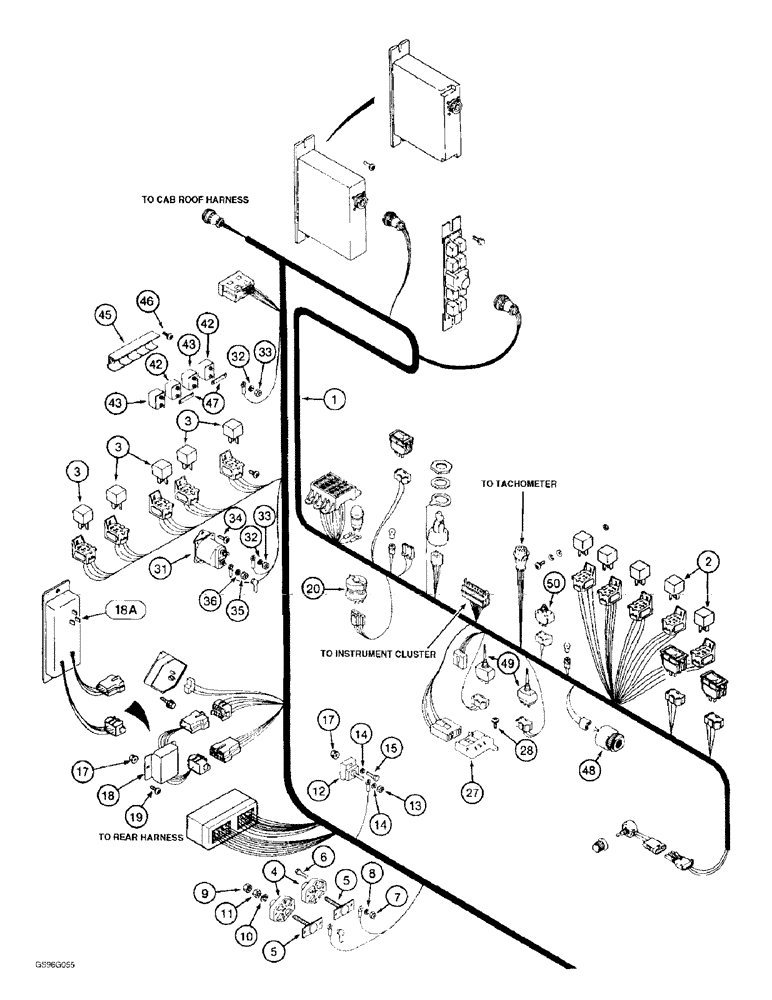

Запчасти Case IH 2022 (4-18) - CONSOLE HARNESS, RIGHT-HAND SIDE, WITHOUT SEPARATE OPERATORS PRESENSE SWITCH HARNESS (06) - ELECTRICAL SYSTEMS

1

1983634C6

HARNESS

- console (Replaces harness 1983634C5 )

1шт.

2

1983394C2

RELAY

- mini, 12 volt, start enable

2шт.

3

1983394C2

RELAY

- mini, 12 volt, lamps

5шт.

4

468647C2

BLOCK ASSY.

BLOCK - junction, power and ground

2шт.

5

1964561C1

BAR

- junction block buss

2шт.

6

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

245539C1

CONNECTION

BLOCK - junction, clean ground

1шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

1шт.

17

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

18

187609C2

RECTIFIER

- diode, no longer available, order rectifier 1994871C1, item 18A (Replaces rectifier 187609C1 )

1шт.

18a

1994871C1

GOVERNOR

RECTIFIER - load dump and diode logic (Replaces rectifier 187602C2 and suppressor 245835C1)

1шт.

19

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch, if used

2шт.

19

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch, if used

2шт.

20

107200C2

LIGHT SWITCH

SWITCH - lamp

1шт.

27

A162294

CONNECTOR, ELEC

MODULE - low coolant (Replaces module 121770C2 )

1шт.

28

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8 NC x 1/2 inch

2шт.

31

107655C1

SOLENOID SWITCH

SWITCH - magnetic console

1шт.

32

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

33

225-14210

NUT,#10-32

9шт.

34

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

42

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

2шт.

43

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

2шт.

45

245870C1

BRACKET

- circuit breaker

1шт.

46

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

47

1301157C1

BAR

- circuit breaker (Replaces bar 245860C1 )

2шт.

48

1546441C1

BUZZER

ALARM - audible

1шт.

49

121541C1

SWITCH

- drum control

2шт.

50

1301521C1

SWITCH

- drum lockout

1шт.
