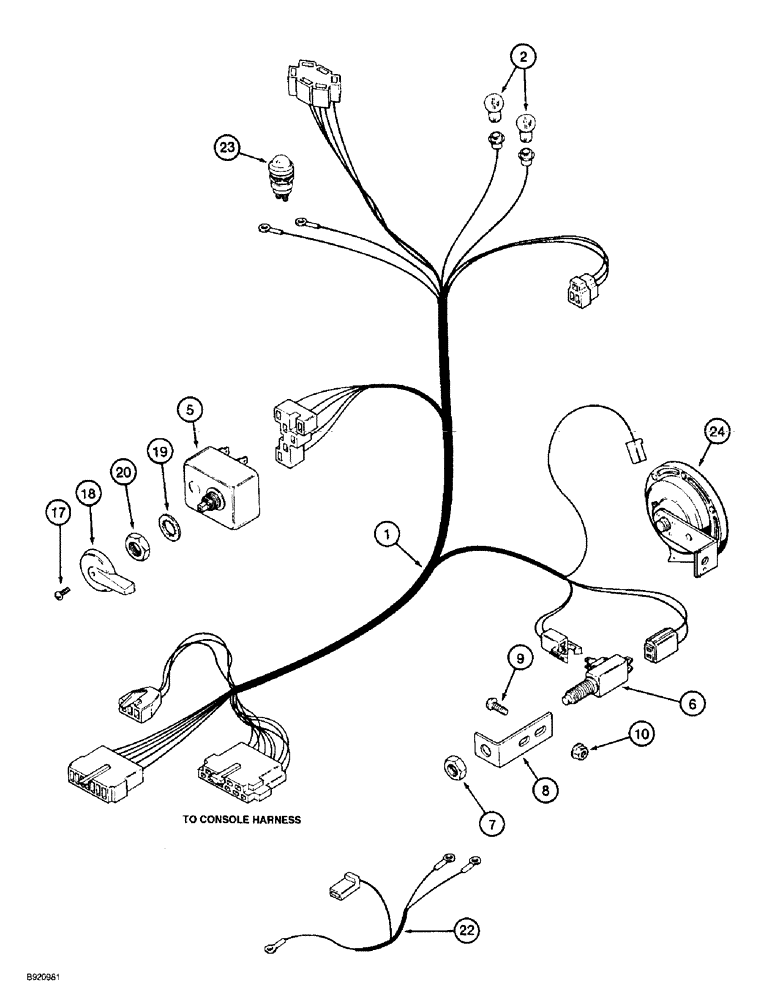

Запчасти Case IH 2022 (4-08) - STEERING COLUMN HARNESS (06) - ELECTRICAL SYSTEMS

1

91822C3

HARNESS

- steering column

1шт.

2

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

2шт.

5

1987422C1

SWITCH

- turn signal, alternate with switch 131066C91 (Replaces switch 131209C91)

1шт.

5

131066C91

SWITCH

- turn signal, alternate with switch 1987422C1

1шт.

6

131107C1

SWITCH

- neutral start

1шт.

7

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

8

1327674C1

BRACKET

ANGLE - mounting

1шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

71485C2

KIT - turn signal switch knob, no longer available, order handle A77185 below

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - slotted, order kit 71485C2

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - switch, order kit 71485C2

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - lock, order kit 71485C2

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - hex, order kit 71485C2

1шт.

22

1964933C1

HARNESS

- horn

1шт.

23

453453C1

SWITCH

- push button

1шт.

24

411949C91

HORN

- 12 volt, low note (Replaces horn 166166R1 )

1шт.

A77185

KIT

HANDLE - turn signal switch, not shown (Replaces kit 71485C2)

1шт.
