Запчасти Case IH 2022 (4-04) - ENGINE HARNESS, 2022 COTTON PICKER (06) - ELECTRICAL SYSTEMS

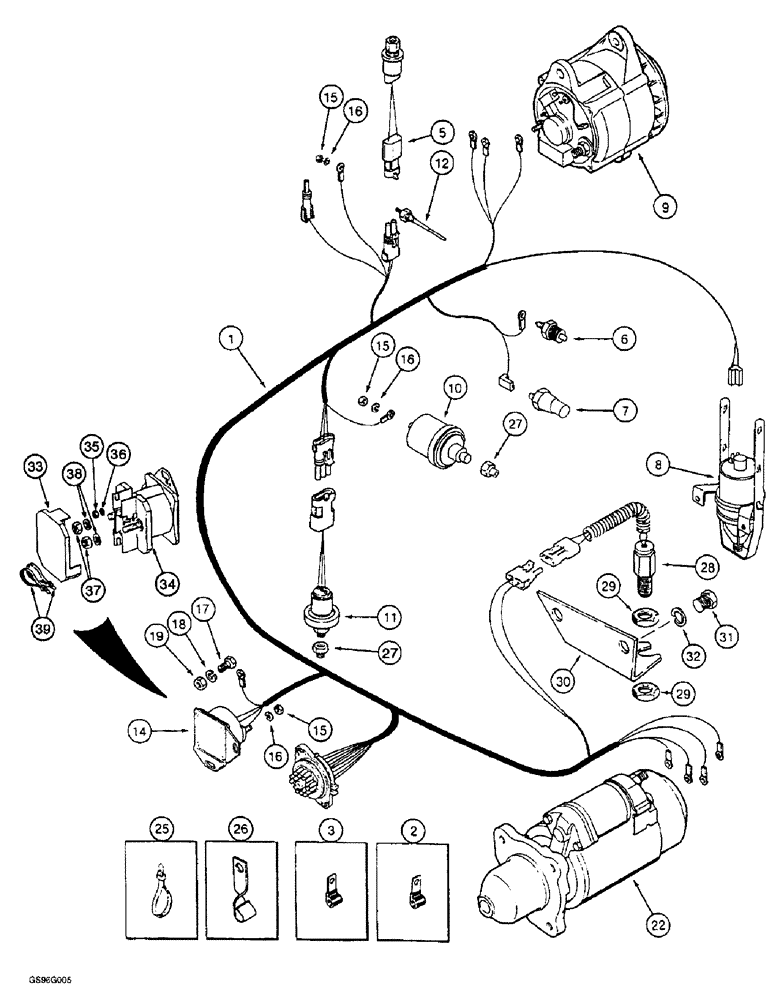

Схема запчастей Case IH 2022 - (4-04) - ENGINE HARNESS, 2022 COTTON PICKER (06) - ELECTRICAL SYSTEMS
33
29
39
26
17
8
14
6
30
10
22
5
31
12
18
2
38
25
1
16
16
11
15
29
3
27
15
15
19
34
7
36
37
16
27
28
32
9
35

Артикул

Название

Примечание

Количество

1

1983383C1

HARNESS

- engine

1шт.

2

515-30222

CLAMP,7/8", 1/2" Bolt

P-type (Replaces clamp A185985) 7/8", 1/2" Bolt

3шт.

3

362123R1

CLIP

- engine harness

1шт.

5

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure, compressor

1шт.

6

121756C2

SENSOR

- coolant temperature

1шт.

7

1345489C1

IGNITION SWITCH

SWITCH - coolant, lamp and alarm

1шт.

8

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether injection, parts list page 2-23 or 2-23B

1шт.

9

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, parts list page 4-53

1шт.

10

1341330C2

TRANSMITTER

SWITCH - sender, oil pressure (Replaces switch 1341330C1 )

1шт.

11

1964960C1

PRESSURE SWITCH

SWITCH - oil pressure and hydraulic lock

1шт.

12

A145513

SENSOR

- probe, coolant level

1шт.

14

A39079

SOLENOID

- magnetic relay, no longer available, order kit 178149A1 below

1шт.

14

142341A1

PACKAGE

KIT - magnetic relay solenoid and cover, no longer available, order kit 178149A1 below

1шт.

15

225-14210

NUT,#10-32

3шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

17

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list page 4-55

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

26

269980R1

CLIP

- engine harness center

1шт.

27

217-9

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

VALVE - 1/8 inch PT

2шт.

28

1252494C2

TRANSMITTER

SENSOR - engine RPM

1шт.

29

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

2шт.

30

1338650C3

SUPPORT

- pickup, RPM (Replaces support 1338650C2 )

1шт.

31

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

2шт.

32

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover (Replaces solenoid A39079)

1шт.

33

178148A1

COVER

- solenoid switch

1шт.

34

183038A1

SOLENOID

SWITCH - solenoid with barrier, order kit 178149A1

1шт.

35

225-14210

NUT,#10-32

1шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

Выбрано товаров: 35
