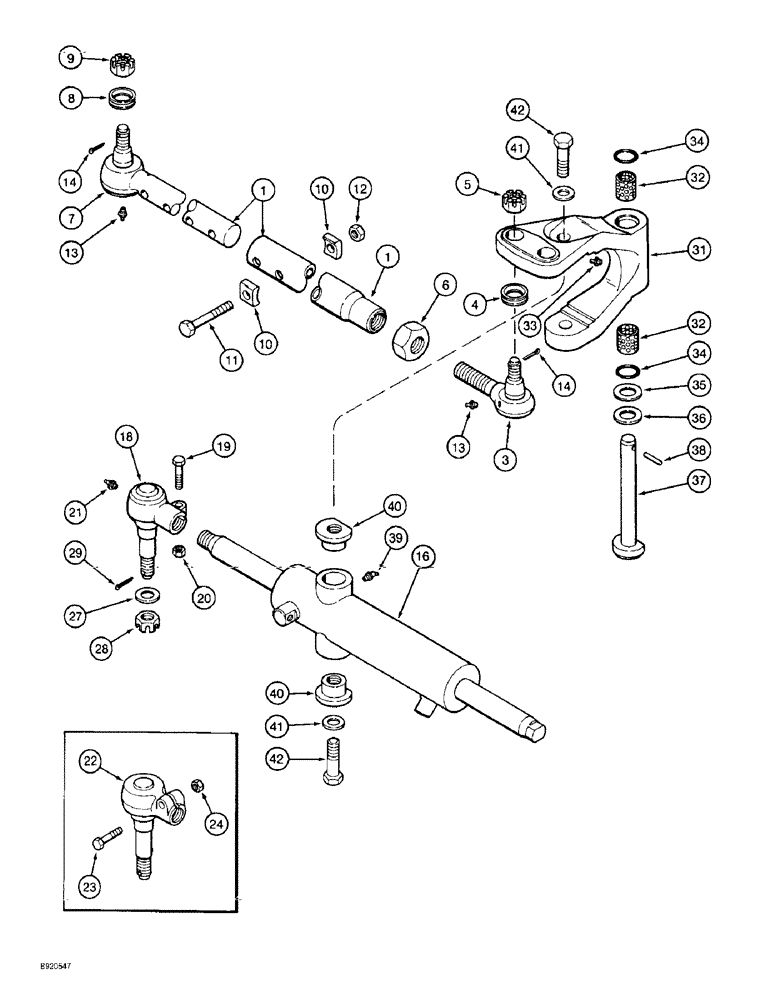

Запчасти Case IH 2022 (5-38) - STEERING AXLE TIE RODS AND STEERING LINKAGE (04) - STEERING

1270788C1

DRAG LINK

ROD ASSEMBLY - tie, steering

2шт.

1

1280657C1

TUBE,30.7 - 40 mm ID, 41.2 mm OD, 431.5 mm Length

- tie rod

1шт.

3

1280658C1

BALL JOINT

SOCKET ASSEMBLY - tie rod, end

1шт.

4

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

- dust

1шт.

5

1280660C1

SLOTTED NUT

NUT - hex slotted, 20 mm - 1.50

1шт.

6

1280661C1

NUT

NUT - hex jam, 1-1/8" inch NF

1шт.

7

1280662C1

BALL JOINT

SOCKET ASSEMBLY - tie rod

1шт.

8

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

- dust

1шт.

9

1280660C1

SLOTTED NUT

NUT - hex slotted, 20 mm - 1.50

1шт.

10

A43369

CLAMP

WASHER - tie rod, clamp

4шт.

11

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

12

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

14

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

16

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list page 5-33

1шт.

16

93194C9R

REMAN-HYD CYLINDER

2022 CASE IH COTTON PICKER, CYLINDER ASSEMBLY - steering (11/90), Reman For New PN 93194C8

1шт.

16

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

17

1280566C2

BALL JOINT

JOINT ASSEMBLY - end ball, TRW

1шт.

18

250586C1

SEAL

- dust, rubber

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

131-463

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

22

71820C91

END

JOINT ASSEMBLY - end ball, Columbus Auto

1шт.

23

71822C1

SEAL

- dust

1шт.

24

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

25

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

1шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

27

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

28

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT - hex slotted, 7/8 inch NF

1шт.

29

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

31

1259579C5

ARM

ASSEMBLY - center, steering (Replaces arm assembly 1259579C4)

1шт.

32

1259581C1

BUSHING,25.43mm ID x 28.6mm OD x 31.8mm L

- steering arm center

2шт.

33

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

1шт.

34

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

35

71421C1

WASHER

- flat, 1-1/32 x 1-3/4 x 5/32 inch

1шт.

36

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

37

1334694C1

PIN,50.8mm OD x 210.05mm L

PIN - pivot, center arm

1шт.

38

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

39

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

40

1259582C3

FITTING

- trunnion, cap (Replaces fitting 1259582C2)

2шт.

41

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

42

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 20 - 2.5 x 60 mm, class 10.9

2шт.
