Запчасти Case IH 2022 (5-28) - REAR STEERING WHEEL AND HUB, 2022 COTTON PICKER PRIOR TO P.I.N. JJC13388 (04) - STEERING

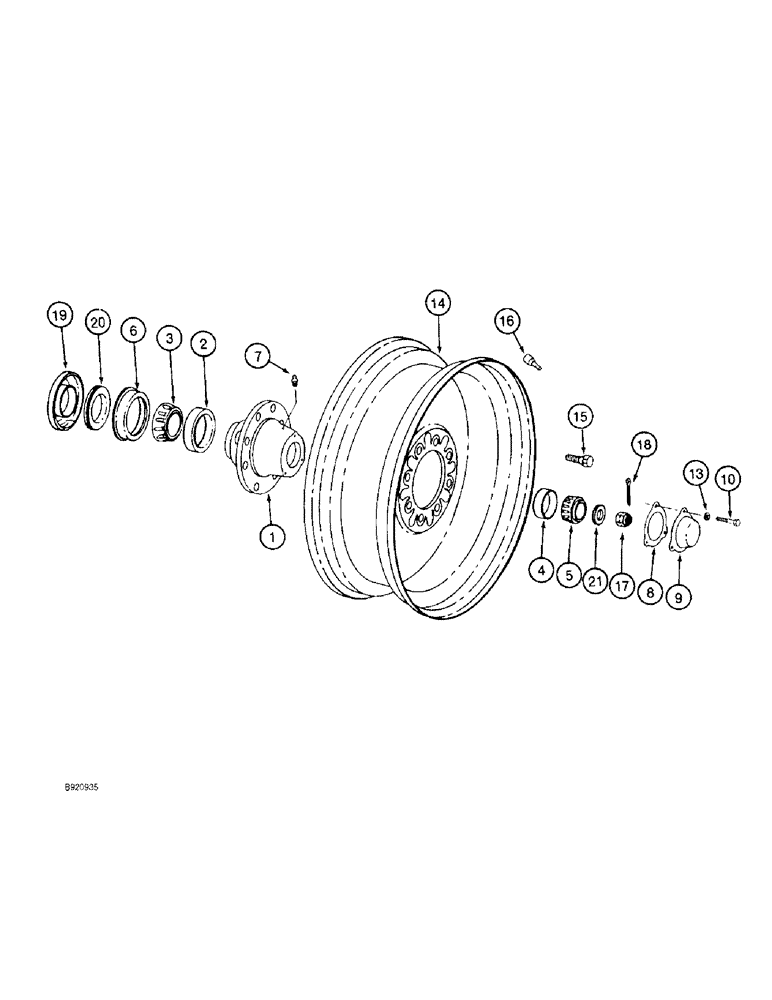

Схема запчастей Case IH 2022 - (5-28) - REAR STEERING WHEEL AND HUB, 2022 COTTON PICKER PRIOR TO P.I.N. JJC13388 (04) - STEERING
13
20
19
5
10
15
8
2
18
21
7
16
6
3
9
17
4
14
1

Артикул

Название

Примечание

Количество

1

1323559C1

HUB

ASSEMBLY - wheel

2шт.

2

619387R1

BEARING CUP

CUP - tapered roller bearing, inner, 3-1/16 inch OD

1шт.

3

G15215

ROLLER BEARING

CONE - bearing, inner (Replaces cone 619386R91)

1шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller, Outer

1шт.

5

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - tapered roller bearing, outer, 1-3/8 inch ID

1шт.

6

48703D

RETAINER

- oil seal

1шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

8

369860R1

GASKET,0.79mm Thk

- hub cap

2шт.

9

369859R1

CAP

- wheel hub

2шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

6шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

86833C1

RIM

WHEEL - 24 x W10H guide

2шт.

15

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - guide wheel

16шт.

16

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter

2шт.

17

429-1314

NUT,7/8"-14, G8

NUT - hex, slotted, 7/8 inch NF, grade 8

2шт.

18

32-1022

COTTER PIN,5/32" x 1 3/8"

PIN, SPLIT (COTTER), 5/32" x 1 3/8"

2шт.

19

48701D

SHIELD

- wheel dust

2шт.

20

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- oil, wheel

2шт.

21

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch, hardened, outer bearing retainer

2шт.

Выбрано товаров: 19
