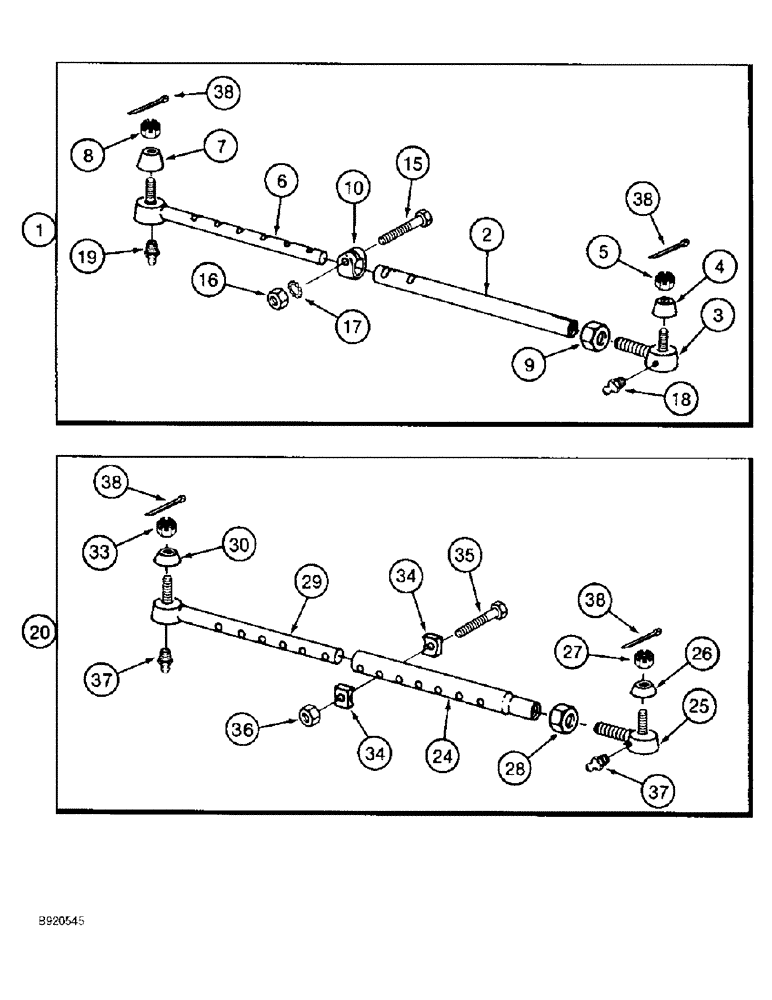

Запчасти Case IH 2022 (5-24) - STEERING AXLE TIE RODS, 2022 COTTON PICKER PRIOR TO P.I.N. JJC13388 (04) - STEERING

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, Columbus Auto or O&S Bearing, alternate with item 20, no longer available as a unit, order components

2шт.

2

383917R1

TUBE

- rod

1шт.

3

384006R92

END

ASSEMBLY - right-hand thread

1шт.

4

358900R1

SEAL

COVER - dust

1шт.

17

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

5

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

6

359984R93

TIE-ROD

ASSEMBLY - welded end

1шт.

7

358900R1

SEAL

COVER - dust

1шт.

8

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

9

374062R1

JAM NUT

NUT - hex lock

1шт.

10

359986R1

CLAMP

- adjustable end

1шт.

15

114-411

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- hex, 1/2 NF x 2-1/4 inch

1шт.

16

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch (Replaces fitting 109461)

1шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

20

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, TRW, alternate with item 1, no longer available as a unit, order components

2шт.

24

1270912C1

TUBE,1.02 - 1.03" ID, 1.375" OD

- rod

1шт.

25

1270913C1

BALL JOINT

END ASSEMBLY - right-hand thread

1шт.

26

N7681

BOOT

COVER - dust (Replaces cover 1270906C1)

1шт.

27

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

28

1270907C1

TUBE NUT

NUT - hex jam

1шт.

29

1270914C1

BALL JOINT

END ASSEMBLY - rod

1шт.

30

N7681

BOOT

COVER - dust (Replaces cover 1270906C1)

1шт.

33

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

34

A43369

CLAMP

- adjustable end

2шт.

35

25776R1

BOLT

BOLT - hex, 3/8 NF x 2-1/2 inch

1шт.

36

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

37

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting 109454) 1/4"-28 NPT x .54" lg

2шт.

38

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.
