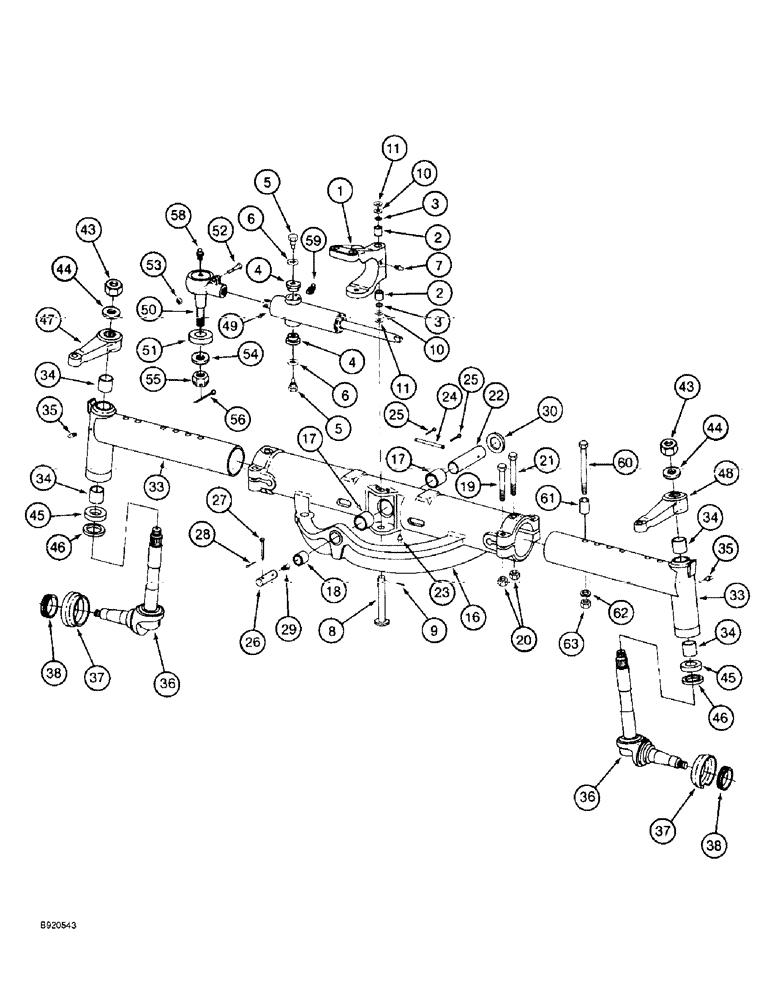

Запчасти Case IH 2022 (5-16) - ADJUSTABLE STEERING AXLE, 2022 COTTON PICKER PRIOR TO P.I.N. JJC13388 (04) - STEERING

1

71787C91

ARM

ASSEMBLY - center steering

1шт.

2

71788C1

BUSHING,25.4mm ID x 28.6mm OD x 25.4mm L

- arm

2шт.

3

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

4

531237R1

CAP

- trunnion

2шт.

5

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

- trunnion cap

2шт.

6

1270887C1

WASHER

- trunnion cap bolt

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch (Replaces fitting 109461)

1шт.

8

531239R1

PIN,50.8mm OD x 193.42mm L

- center arm pivot

1шт.

9

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

10

71421C1

WASHER

- flat, 1-1/32 x 1-3/4 x 5/32 inch

1шт.

11

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

16

120733C91

AXLE, REAR

AXLE ASSEMBLY - steering

1шт.

17

531242R1

BUSHING,50.89mm ID x 54.113mm OD x 38.1mm L

- axle

2шт.

18

482669R1

BUSHING,31.8mm ID x 34.95mm OD x 26.92mm L

- front pivot

1шт.

19

28-1264

BOLT,Hex, 3/4" - 16 x 4", Gr 8

- hex, 3/4 NF x 4 inch, grade 8

4шт.

20

29-1112

NUT,3/4"-16, G8

- hex, 3/4 inch NF grade 8

6шт.

21

25868R1

BOLT,Hex, 3/4" - 16 x 6 1/2", Gr 8

- hex, 3/4 NC x 6-1/2 inch, grade 8

2шт.

22

1280692C1

AXLE PIN

PIN - axle rear pivot

1шт.

23

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

1шт.

24

439-18104

HEADED PIN,1/2" x 6 1/2"

PIN - headed, 1/2 x 6-1/2 inch, grade 2

1шт.

25

432-1216

COTTER PIN,3/16" x 1"

2шт.

26

120732C2

AXLE PIN,31.7mm OD x 90mm L

PIN - axle front pivot

1шт.

27

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN - headed, 3/8 x 4-1/8 inch

1шт.

28

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

29

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

33

531260R93

AXLE

EXTENSION ASSEMBLY - axle

2шт.

34

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- extension

2шт.

35

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

36

71785C2

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering

2шт.

37

48701D

SHIELD

- wheel dust

1шт.

38

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- oil

1шт.

43

425-1522

JAM NUT,Jam, 1 3/8"-12, G5

- hex jam, 1-3/8 inch NF

2шт.

44

495-81218

WASHER,35.71mm ID x 69.85mm OD x 1.37mm Thk

- flat, 1-13/32 x 2-3/4 x 3/64 inch (Replaces washer Q326)

2шт.

45

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING - thrust, steering knuckle pivot

2шт.

46

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Special, Steering knuckle pivot

2шт.

47

148418C1

ARM

- right-hand steering knuckle, left-hand

1шт.

48

148419C1

STEERING ARM

ARM - left-hand steering knuckle, right-hand

1шт.
