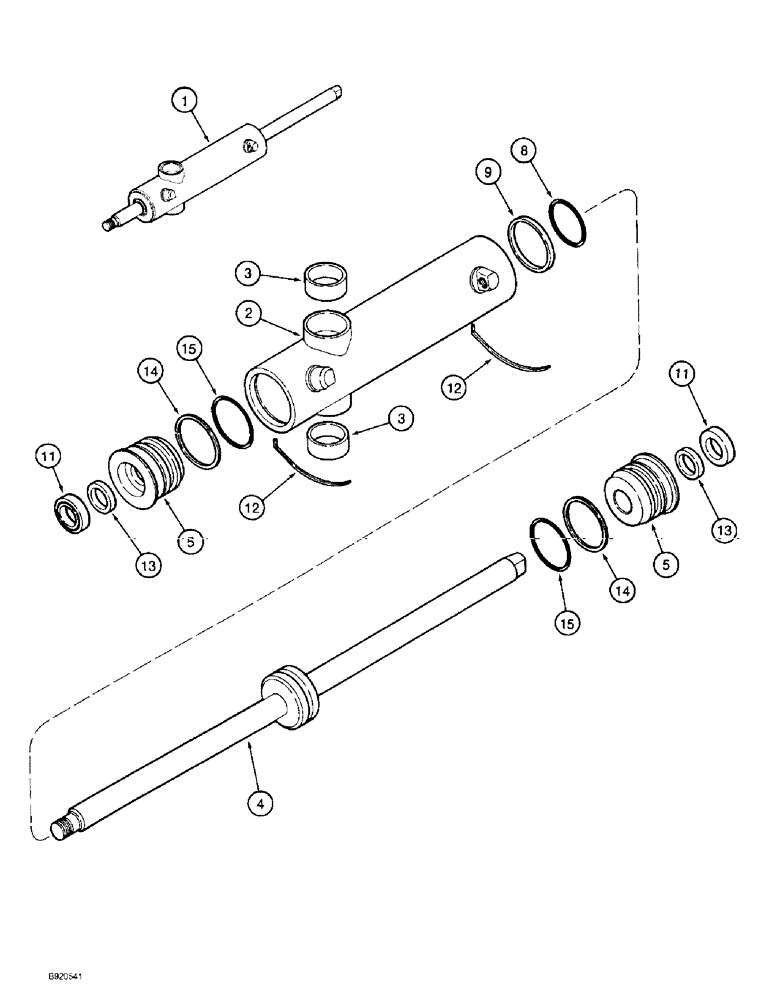

Запчасти Case IH 2022 (5-10) - POWER STEERING CYLINDER, 2022 COTTON PICKER PRIOR TO P.I.N. JJC13388 (04) - STEERING

1

63864C93

CYLINDER,25.4mm Rod, 203.2mm Stroke

ASSEMBLY - power steering

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder, order cylinder assembly 63864C93

1шт.

3

533283R1

BUSHING,38.16mm ID x 41.41mm OD x 10.99mm L

- trunnion

2шт.

4

533286R21

ROD

- piston

1шт.

5

533288R2

JACK HEAD

GLAND - cylinder

2шт.

80446C91

PACKAGE

KIT - seal

1шт.

8

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

1шт.

9

379570R1

SEALING RING

- piston

1шт.

11

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

WIPER - piston rod

2шт.

12

391985R1

SPRING

RING - retaining,7-3/8 inch (187 mm) long, cut from bulk wire 140600C1 below

2шт.

See Figure Note.

1шт.

13

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

- piston rod

2шт.

14

382063R1

BACK-UP RING,2.385" ID x 0.052" Width

RING - backup

2шт.

15

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2шт.

140600C1

RETAINING WIRE

WIRE - retaining, 12-13/16 inch (325 mm) long

1шт.

See Figure Note.

1шт.
