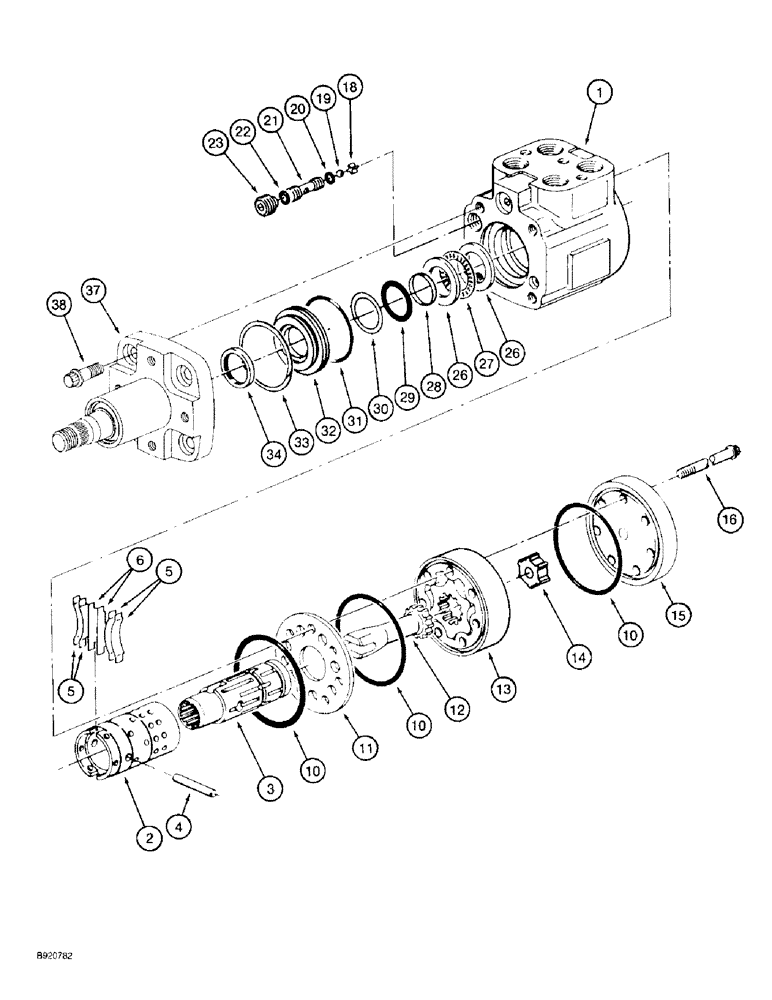

Запчасти Case IH 2022 (5-08) - STEERING PUMP ASSEMBLY (04) - STEERING

1978328C3

PUMP

ASSEMBLY - steering (Replaces pump assembly 1978328C1)

1шт.

1343643C1

VALVE BLOCK

HOUSING AND CONTROL ASSEMBLY - pump

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump, order assembly 1343643C1

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, manual steering, not shown, order assembly 1343643C1

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, inlet, not shown, order assembly 1343643C1

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control, order assembly 1343643C1

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control, order assembly 1343643C1

1шт.

4

L30888

PIN

- roll

1шт.

N14250

KIT

- centering spring

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering, order kit N14250

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring, order kit N14250

2шт.

10

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- end cap

3шт.

11

S113037

PLATE

- spacer

1шт.

12

L30878

DRIVE SHAFT

SHAFT - drive, gerotor

1шт.

13

1343638C1

ROTOR

GEROTOR - set

1шт.

14

1343646C1

SPACER

- gerotor

1шт.

15

136493A1

COVER

CAP - end (Replaces cap D82809)

1шт.

16

1343641C1

SCREW,Flg, 5/16" - 24 x 1 5/8", Gr 8

BOLT, 12 Pt Flg, 5/16"-24 x 1 5/8", G8

7шт.

18

L35368

RETAINER

- check ball

1шт.

19

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

- check ball seat, 7/16 x 5/16 x 1/16 in

1шт.

21

D82806

VALVE SEAT

SEAT - ball

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

23

D82805

SET SCREW

SCREW - set

1шт.

26

D82804

RACE

- thrust, bearing

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle (Replaces bearing G13604)

1шт.

28

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon

1шт.

29

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

30

50-2703T1

BACK-UP RING

RING - backup

1шт.

31

102569A1

VALVE POPPET

SEAL - 1-7/8 inch ID (Replaces seal N14515)

1шт.

32

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

697494R91

OIL SEAL

SEAL - 1 inch ID

1шт.

37

1343648C1

COVER

COLUMN - steering pump

1шт.

38

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT, 12 Pt Flg, 3/8"-16 x 1", G8

4шт.

1343658C3

SEAL KIT

KIT - seal replacement (Replaces kit 1343658C1)

1шт.
