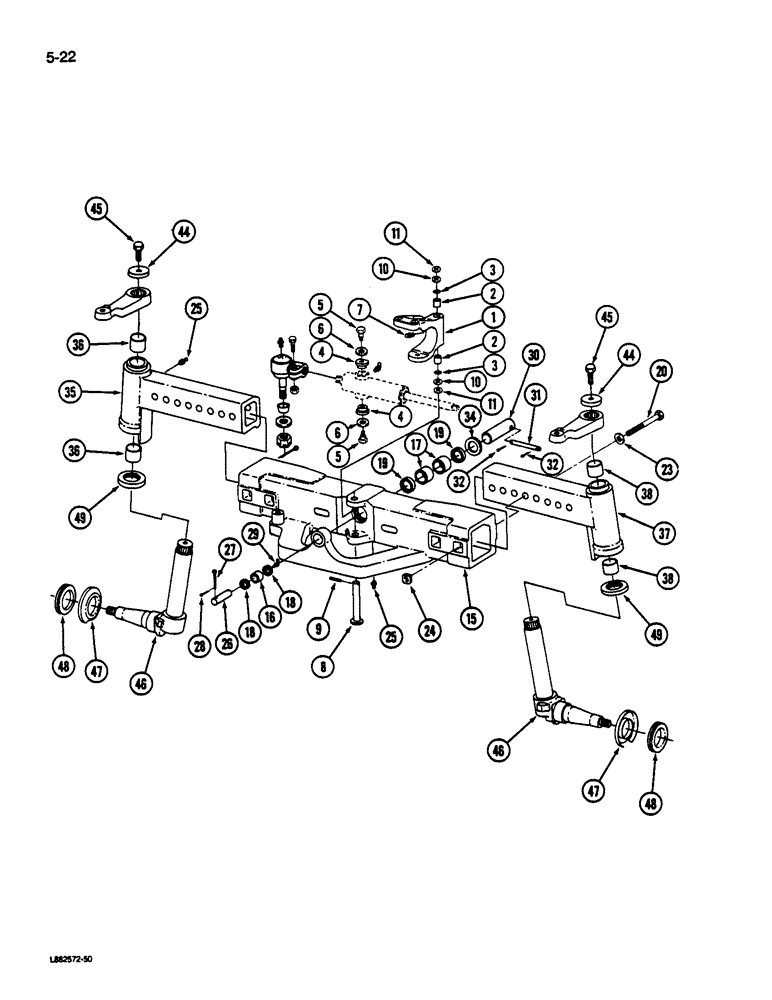

Запчасти Case IH 1844 (5-22) - STEERING AXLE, 1844 COTTON PICKER (04) - STEERING

1

1259579C94

ARM

ASSEMBLY - center steering

1шт.

2

1259581C1

BUSHING,25.43mm ID x 28.6mm OD x 31.8mm L

- arm

2шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

- 1 x 1-1/4 inch

2шт.

4

1259582C2

FITTING

- trunnion, cap

2шт.

5

30091R1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

- hex, M20 x 60 mm, Grade 10.9

2шт.

6

25548R1

WASHER

- flat, 13/16 x 1-1/2 x 7/32 inch

2шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

8

1259584C1

PIVOT PIN,25.65mm OD x 210.05mm L

PIN - center arm pivot

1шт.

9

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

10

71421C1

WASHER

- flat, 1-1/32 x 1-3/4 x 5/32 inch

1шт.

11

Q175

WASHER

- flat, 1-1/32 x 1-3/4 x 27/64 inch

1шт.

15

1264573C92

AXLE, REAR

AXLE ASSEMBLY - high capacity

1шт.

16

1280558C2

BUSHING

- axle front pivot

1шт.

17

1280557C1

BUSHING

- axle rear pivot

2шт.

18

1280599C1

SEAL,31.7mm ID x 38.1mm OD x 3.17mm Thk

- axle pivot front

2шт.

19

1280600C1

SEAL,50.77mm ID x 63.5mm OD x 7.92mm Thk

- axle pivot rear

2шт.

20

30127R1

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

- hex, M24 x 200 mm, Grade 10.9

1шт.

23

30180R1

WASHER,M24 x 44.5 x 5, HT

- flat, 26 x 44 x 5 mm

4шт.

24

1264635C1

NUT

- clamping, axle

4шт.

25

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - grease, 3/16 inch

3шт.

26

1259512C2

PIVOT PIN

PIN - axle pivot, front

1шт.

27

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN - headed, 3/8 x 4-1/8 inch

1шт.

28

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

29

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - 65 degree grease, short 1/8 inch PTF

1шт.

30

1259511C2

PIVOT PIN

PIN - axle pivot, rear

1шт.

31

1280683C1

AXLE PIN,12.7mm OD x 178mm L

PIN - retaining, 1/2 inch, Grade 8

1шт.

32

934792R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

2шт.

34

100063C1

THRUST WASHER

- thrust, axle

1шт.

35

1264574C2

EXTENSION ASSY.

EXTENSION ASSEMBLY - axle, left

1шт.

36

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

- pivot, steering knuckle

1шт.

37

1264575C92

CABLE EXTENSION

EXTENSION ASSEMBLY - axle, right

1шт.

38

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

- pivot, steering knuckle

2шт.

44

1259669C2

WASHER

- steering arm retainer

2шт.

45

30588R1

BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8, Full Thd

- hex, M20 x 55 mm, Grade 8

2шт.

46

1259519C2

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering

2шт.

47

1259522C1

SHIELD

- wheel dust

1шт.

48

491641C1

SEAL

- wheel hub

1шт.

49

1270815C91

THRUST BEARING

- thrust, steering knuckle

2шт.
