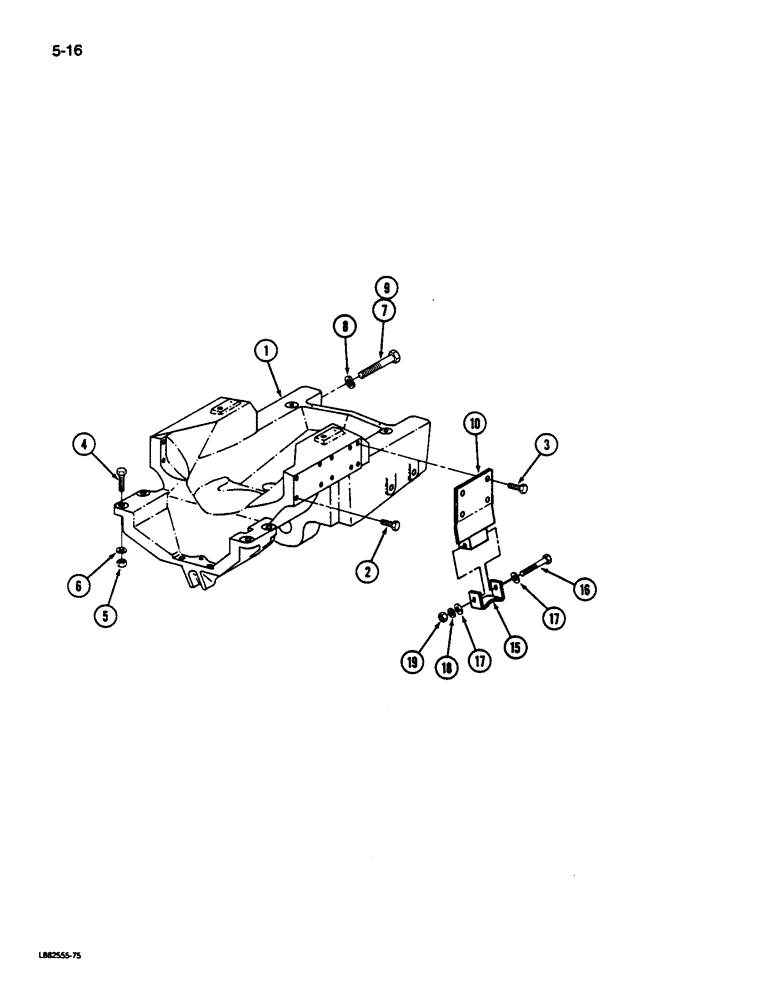

Запчасти Case IH 1844 (5-16) - STEERING AXLE BOLSTER (04) - STEERING

1

1280704C1

BOLSTER

- steering

1шт.

2

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

3

30066R1

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

4

1271724

HOSE,5200.00 mm

BOLT - hex, 5/8 NC x 2-1/4 inch

4шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

7

30120R1

BOLT,Hex, M24 x 120mm, Cl 10.9

- hex, M24 x 120 mm, Grade 10.9 (1844 only)

4шт.

8

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9

30111R1

BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd

- hex, M24x60 mm, Grade 10.9 (1822 only)

4шт.

10

87568C1

STOP

ASSEMBLY - axle

2шт.

15

87571C1

STOP

PLATE - axle stop (1822 only)

2шт.

16

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch (1822 only)

2шт.

17

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch (1822 only)

4шт.

18

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (1822 only) 3/8"

2шт.

19

120377

NUT,3/8" - 16, Gr 5

(1822 only) 3/8"-16, G5

2шт.
