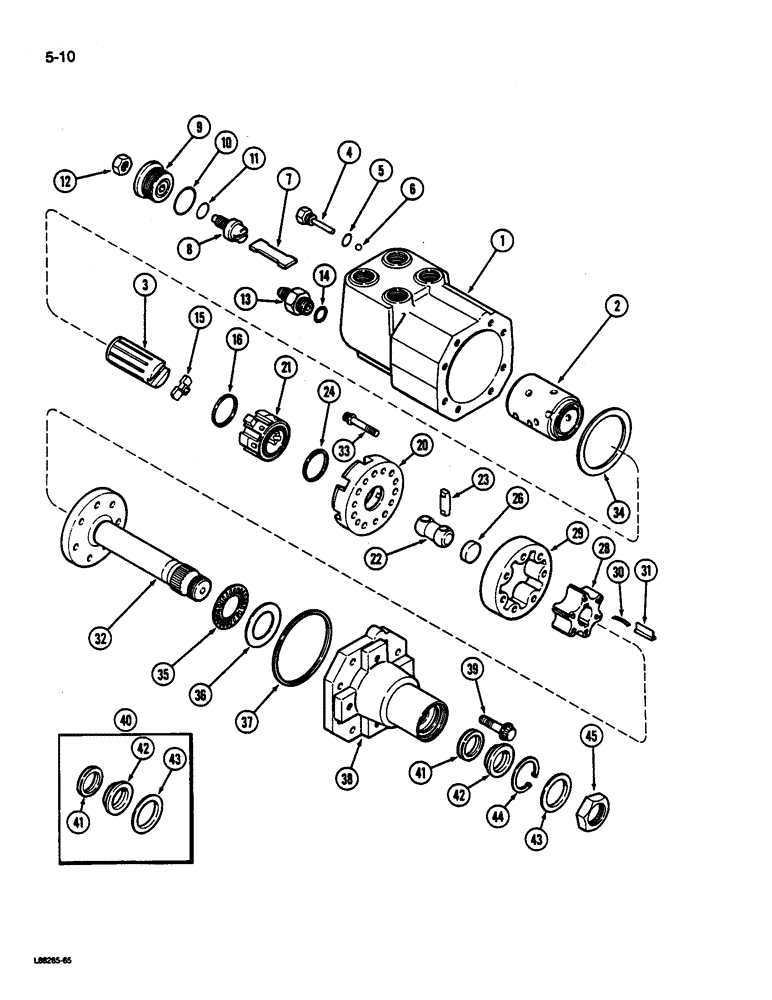

Запчасти Case IH 1844 (5-10) - POWER STEERING PUMP (04) - STEERING
№
Артикул
Название
Примечание
Количество
1272778C94
PUMP
ASSEMBLY - power steering
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - housing
1шт.
2
NSS
NOT SOLD SEPARAT
SLEEVE - valve
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
4
1301867C91
PIN ASSY.
PIN ASSEMBLY - ydra-guide
1шт.
5
379795R1
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, 3/16 inch OD
1шт.
6
17009R1
BALL
- 9/32 inch, Grade 25
1шт.
7
NSS
NOT SOLD SEPARAT
BLADE - torsion
2шт.
8
NSS
NOT SOLD SEPARAT
SCREW - pump adjusting
1шт.
9
NSS
NOT SOLD SEPARAT
PLUG ASSEMBLY - pump
1шт.
10
297459R1
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 7/8 inch OD
1шт.
11
392382R1
O-RING,0.551" ID x 0.07" Width
- 9/16 x 11/16 inch
1шт.
12
NSS
NOT SOLD SEPARAT
NUT - hex jam, 3/8 inch NF
1шт.
13
86891C2
VALVE
ASSEMBLY - orifice check
1шт.
14
882779C1
O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro
- 3/8 inch OD
1шт.
15
NSS
NOT SOLD SEPARAT
RING - drive
1шт.
16
NSS
NOT SOLD SEPARAT
RING ASSEMBLY - seal
1шт.
20
NSS
NOT SOLD SEPARAT
MANIFOLD
1шт.
21
NSS
NOT SOLD SEPARAT
COMMUTATOR
1шт.
22
NSS
NOT SOLD SEPARAT
LINK - drive
1шт.
23
NSS
NOT SOLD SEPARAT
PIN -lock
2шт.
24
NSS
NOT SOLD SEPARAT
RING ASSEMBLY - seal
1шт.
26
NSS
NOT SOLD SEPARAT
SPACER
1шт.
28
NSS
NOT SOLD SEPARAT
ROTOR
1шт.
29
NSS
NOT SOLD SEPARAT
STATOR
1шт.
30
NSS
NOT SOLD SEPARAT
SPRING - vane
6шт.
31
NSS
NOT SOLD SEPARAT
VANE - pump
6шт.
32
NSS
NOT SOLD SEPARAT
SHAFT - input
1шт.
33
NSS
NOT SOLD SEPARAT
SCREW - 12 point cap, 1/4 NF x 1-1/4 inch
7шт.
34
NSS
NOT SOLD SEPARAT
WASHER - hardened
1шт.
35
NSS
NOT SOLD SEPARAT
BEARING - thrust
1шт.
1301869C1
WASHER
KIT - thrust washer
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - 0.035 inch (0.89 mm)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - 0.041 inch (1.02 mm)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - 0.047 inch (1.19 mm)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - 0.053 inch (1.35 mm)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - 0.059 inch (1.50 mm)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - 0.065 inch (1.65 mm)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - 0.071 inch (1.80 mm)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER -0.077 inch (1.96 mm)
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - 0.083 inch (2.11 mm)
1шт.
37
1301870C1
O-RING,2.86" ID x 2.989" OD x 0.066"
O-RING - 2-55/64 x 2-63/64 x 43/64 inch
1шт.
38
NSS
NOT SOLD SEPARAT
COVER - pump
1шт.
39
NSS
NOT SOLD SEPARAT
SCREW - 12 point cap, 1/4 NF x 1 inch
8шт.
40
224712C1
SEAL KIT
KIT - seal
1шт.
41
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
42
NSS
NOT SOLD SEPARAT
RING - back-up
1шт.
43
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
44
383878R1
SNAP RING,1.25, Int, #125
Ring, Snap, 1.25", Int, #125
1шт.
45
F19646
LOCK NUT,13/16"-20, Thin
NUT - hex, 13/16-20
1шт.
Выбрано товаров: 50
