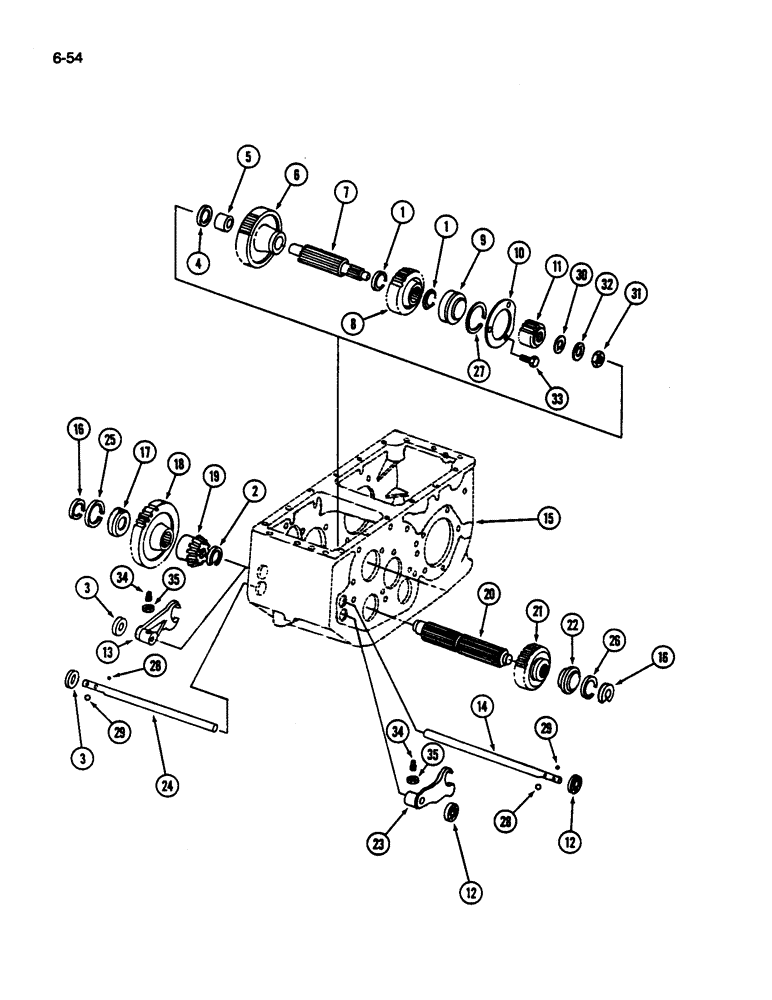

Запчасти Case IH 1844 (6-54) - MAIN SHAFT, INPUT SHAFT, SHIFT RAILS AND FORKS, PRIOR TO 1822 COTTON PICKER PIN JJC0012001 (03) - POWER TRAIN

1

100070R1

RING

- snap

2шт.

2

A21619

CIRCLIP

RING - snap

1шт.

3

349373R1

PLUG

- cup, 1-1/4 inch OD

2шт.

4

A32438

SNAP RING

RING - snap

1шт.

5

358035R91

BEARING, ROLLER, CYL,25mm ID x 44.82mm OD x 20.64mm W

- shaft, 1-49/64 inch OD

1шт.

6

395652R1

GEAR

- sliding, first and second (38 and 20 Teeth)

1шт.

7

402842R3

SHAFT

- input

1шт.

8

107283C1

PINION

GEAR - second. 36 Teeth

1шт.

9

379438R91

ROLLER BEARING,34.99mm ID x 80mm OD x 21mm W

- shaft, right. 3-5/32 inch OD

1шт.

10

379481R1

RETAINER

- bearing, right

1шт.

11

184100C1

GEAR

- pinion. 26 Teeth (1844 Cotton Picker)

1шт.

11

395653R1

GEAR

- pinion, 25 Teeth (1822 Cotton Picker)

1шт.

12

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- rail (Replaces 549712R1)

2шт.

13

395656R1

FORK

- shifter

1шт.

14

107278C1

SHAFT

- shift

1шт.

15

REF

INSTRUCTION

HOUSING - transmission (See Figure 6-44)

1шт.

16

370504R1

RING

- snap

2шт.

17

ST364

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - shaft, left, 2-7/16 inch OD

1шт.

18

379495R1

GEAR

- input, 44 Teeth

1шт.

19

395649R1

GEAR

- first, 18 Teeth

1шт.

20

1276989C3

SHAFT

- main

1шт.

21

107284C2

PINION

GEAR - second, 20 Teeth

1шт.

22

379475R91

BEARING, ROLLER, CYL,30mm ID x 62.03mm OD x 16mm W

- shaft, right, 2-29/64 inch OD

1шт.

23

574904R1

FORK

- shifter

1шт.

24

107543C1

SHAFT

- shift

1шт.

25

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

O-RING - seal (Square Section)

1шт.

26

ST421

SNAP RING,1.65mm Thk, Ext

RING - snap

1шт.

27

ST419

RING

- shaft

1шт.

28

17016R1

BALL,1/2" Dia

Detent 1/2" Dia

2шт.

29

17014R1

BALL

- detent, 7/16 inch diameter

2шт.

30

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- flat

1шт.

31

382879R1

NUT

- shaft

1шт.

32

382900R1

LOCK WASHER

- lock

1шт.

33

26678R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 7/8 inch, Grade 8

3шт.

34

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - square head set, 3/8 NF x 1 inch

2шт.

35

114494

NUT,Jam, 3/8"-24, G5

2шт.
