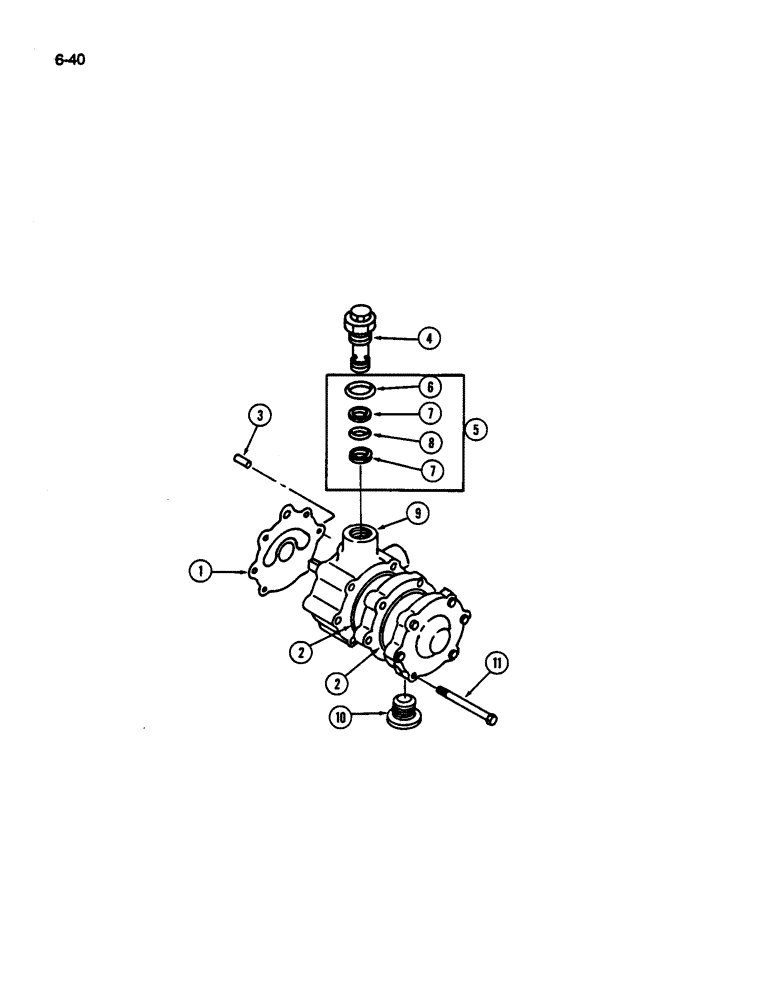

Запчасти Case IH 1844 (6-40) - HYDROSTATIC PUMP, CHARGE PUMP (03) - POWER TRAIN

133761C91

PUMP

ASSEMBLY - charge (1822 Cotton Picker), Includes: Ref. 1 - 10

1шт.

92740C1

PUMP

ASSEMBLY - charge (1844 Cotton Picker), Includes: Ref. 1 - 10

1шт.

1

133760C1

GASKET

- charge pump

1шт.

2

24496R1

O-RING,-041, 70 Duro, 2.989" ID x .070" Thk

- spacer, 3 x 3-1/8 x 1/16 inch

2шт.

3

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

4

140771C1

VALVE

- low pressure relief

1шт.

5

393885R91

GASKET KIT

KIT - relief valve seal, Includes: Ref. 6 - 8

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-7/32 x 7/64 inch

1шт.

7

393887R1

BACK-UP RING

RING - backup

2шт.

8

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- 13/16 x 1 x 3/32 inch

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

Order 133761C91 for 1822 Cotton Picker. Order 92740C1 for 1844 Cotton Picker.

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - pump

1шт.

Order 133761C91 for 1822 Cotton Picker. Order 92740C1 for 1844 Cotton Picker.

1шт.

11

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT - hex, 5/16 NC x 3-3/4 inch

4шт.
