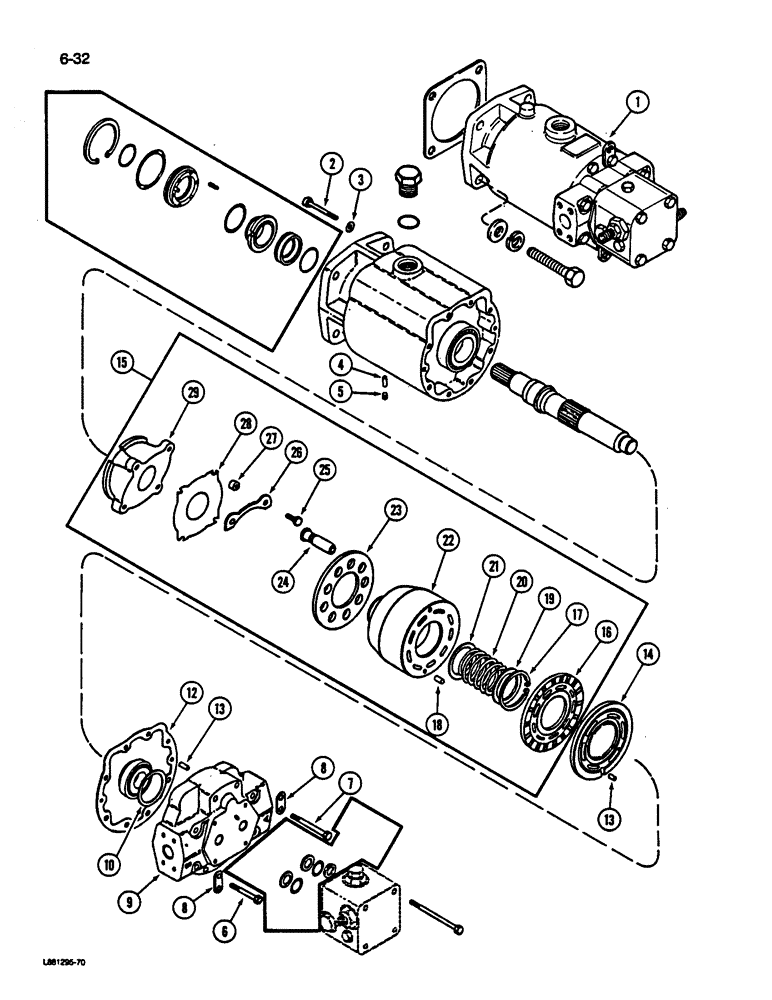

Запчасти Case IH 1844 (6-32) - HYDROSTATIC MOTOR (03) - POWER TRAIN

1

1286306C92

REMAN-HYDROSTAT MOTO

M0TOR ASSEMBLY - hydrostatic, remanufactured (North America Only) (1822 Cotton Picker)

1шт.

1

1286305C93

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new (1822 Cotton Picker), Includes: Ref. 1 - 29

1шт.

1978049C1

CORE-HYDROSTAT MOTOR

Return Number, For N.A. Only

1шт.

1

1285875C92

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydrostatic, remanufactured (North America only) (1844 Cotton Picker)

1шт.

1

1285874C93

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new (1844 Cotton Picker), Includes: Ref. 1 - 29

1шт.

2

138230

HEX SOC SCREW,5/16" - 18 x 3"

BOLT - hex socket, 5/16 NC x 3 inch

2шт.

3

92734C1

SEALING WASHER

WASHER - sealing

2шт.

4

20020R1

DOWEL,5/16" x 1"

PIN - dowel, hardened

1шт.

5

444688

PLUG

PLUG - pipe, 1/8 inch PT

1шт.

6

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

7

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch

6шт.

8

NSS

NOT SOLD SEPARAT

STRAP - shipping

2шт.

9

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

Order 1286306C91 for 1822 Cotton Picker. Order 1285875C91 for 1844 Cotton Picker.

1шт.

10

140760C91

SHIM KIT

KIT - bearing shim, Includes: Shims listed below

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

12

92735C1

GASKET

GASKET - cover

1шт.

13

140754C1

PIN

PIN - dowel, 5/16 x 5/8 inch

3шт.

14

92732C1

PLATE

PLATE - valve

1шт.

15

92737C1

KIT

SPARE PART KIT - rotating group (Includes: Ref. 16 through 29) (1822 Cotton Picker)

1шт.

92736C1

PACKAGE

KIT - rotating group (Includes: Ref. 16 through 29) (1844 Cotton Picker)

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

18

140764C1

LINK

PIN - dowel, 5/16 x 5/8 inch

2шт.

19

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - barrel

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

22

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder

9шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - hex socket

4шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

26

NSS

NOT SOLD SEPARAT

STRAP - retaining

2шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

27

NSS

NOT SOLD SEPARAT

SPACER - clearance

4шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

Order 92737C1 for 1822 Cotton Picker. Order 92736C1 for 1844 Cotton Picker.

1шт.
