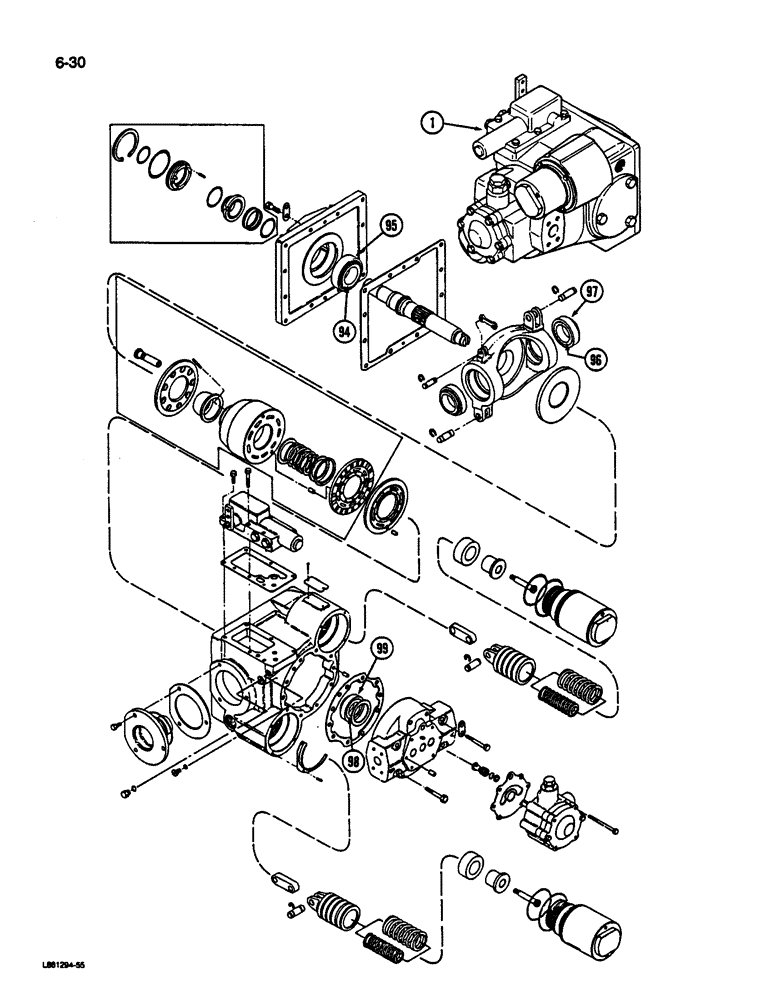

Запчасти Case IH 1844 (6-30) - HYDROSTATIC PUMP, 1844 COTTON PICKER (03) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, new

1шт.

94

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - bearing input shatt, 1-3/4 inch ID

1шт.

95

ST987

BEARING CUP

CUP - bearing input shaft, 3-17/64 inch OD

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - bearing trunnion, 1-25/32 inch ID

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - bearing trunnion, 2-57/64 inch OD

2шт.

98

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - bearing input shaft, 1-3/16 inch ID

1шт.

99

530741R1

BEARING CUP

CUP - bearing input shaft, 2-17/32 inch OD

1шт.
