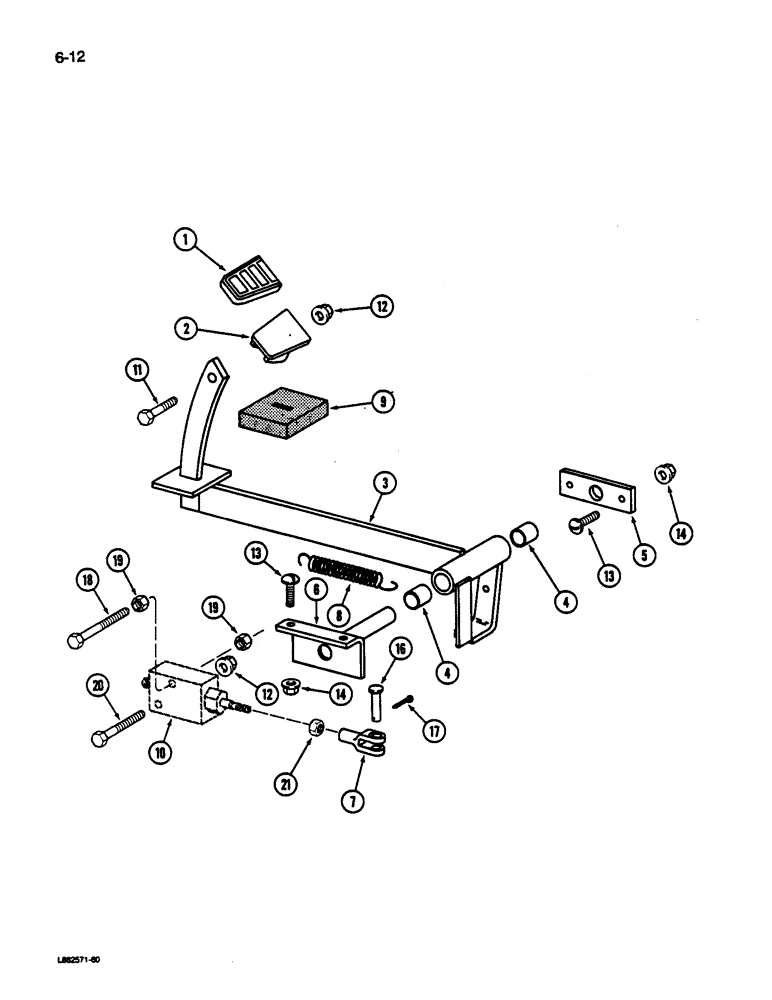

Запчасти Case IH 1844 (6-12) - FOOT-N-INCH PEDAL (03) - POWER TRAIN

1

863426R1

PAD

- pedal

1шт.

2

163425C1

PEDAL

- foot-n-inch

1шт.

3

1321960C92

SUPPORT

ASSEMBLY - pedal

1шт.

4

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- support assembly

2шт.

5

1281794C1

PLATE

BAR - pivot shaft support

1шт.

6

1281816C3

SUPPORT

- pivot shatt

1шт.

7

144242

CLEVIS

- adjustable, 5/16 inch NF x 2-1/4 inch

1шт.

8

398763R2

SPRING

- pedal return

1шт.

9

1321935C1

SEAL

- pedal

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - foot-n-inch (See Page 6-15)

1шт.

11

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

13

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

(Replaces 632227R1) Sltd Serr Truss Hd, 5/16"-18 x 3/4"

4шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

16

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch

1шт.

17

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

19

9411655

LOCK NUT,3/8"-16, GB

NUT - hex prevailing torque, 3/8 inch NC

2шт.

20

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

21

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.
