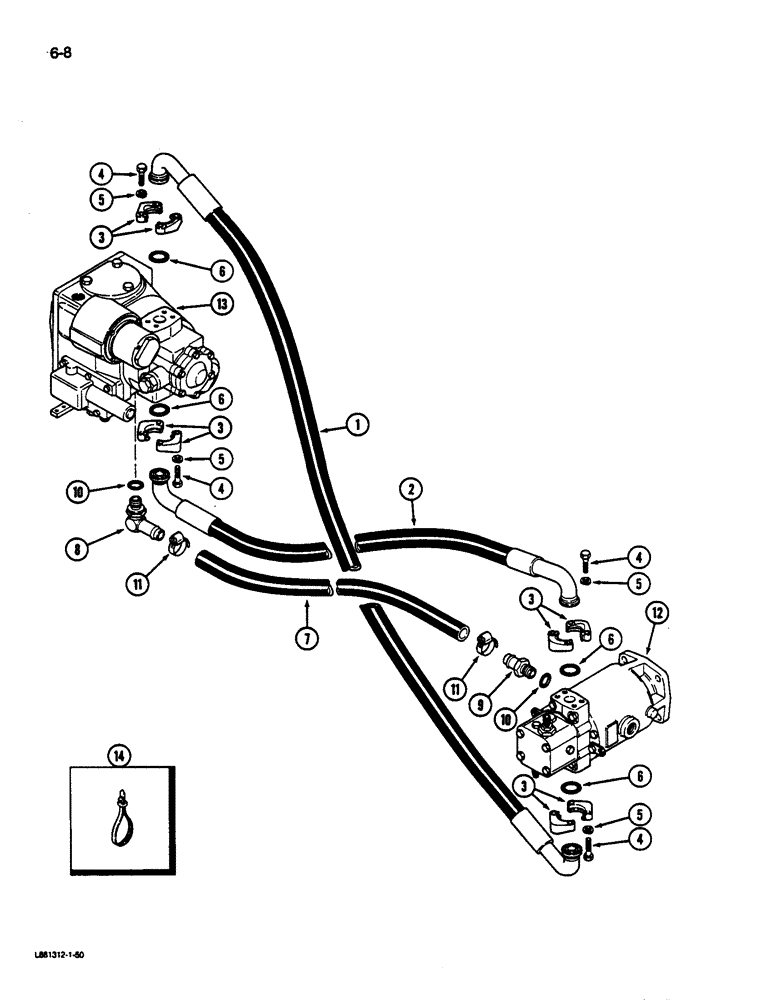

Запчасти Case IH 1844 (6-08) - HYDROSTATIC PUMP TO HYDROSTATIC MOTOR (03) - POWER TRAIN

1

1260301C3

HOSE

- forward pressure

1шт.

2

1260300C2

HOSE

- reverse pressure

1шт.

3

877949C2

CLAMP

- hose

8шт.

4

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

16шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

6

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-5/16 x 1-9/16 inch

4шт.

7

NSS

NOT SOLD SEPARAT

HOSE - case drain, 45 inch (1143 mm) (Order 180720C1, Serial Range: cut-length)

1шт.

180720C1

HOSE

- hydraulic, 3/4 inch ID x 25 feet

1шт.

8

387006R91

ELBOW

- 90 degree, 3/4 inch tube, 1-1/16 inch thread

1шт.

9

470420R11

FITTING

CONNECTOR - straight, 3/4 inch tube, 1-1/16 inch thread

1шт.

10

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

2шт.

11

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP - hose

2шт.

12

REF

INSTRUCTION

MOTOR - hydrostatic (See page 6-33)

1шт.

13

REF

INSTRUCTION

PUMP - hydrostatic (See Page 6-21 and 6-27)

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

4шт.
