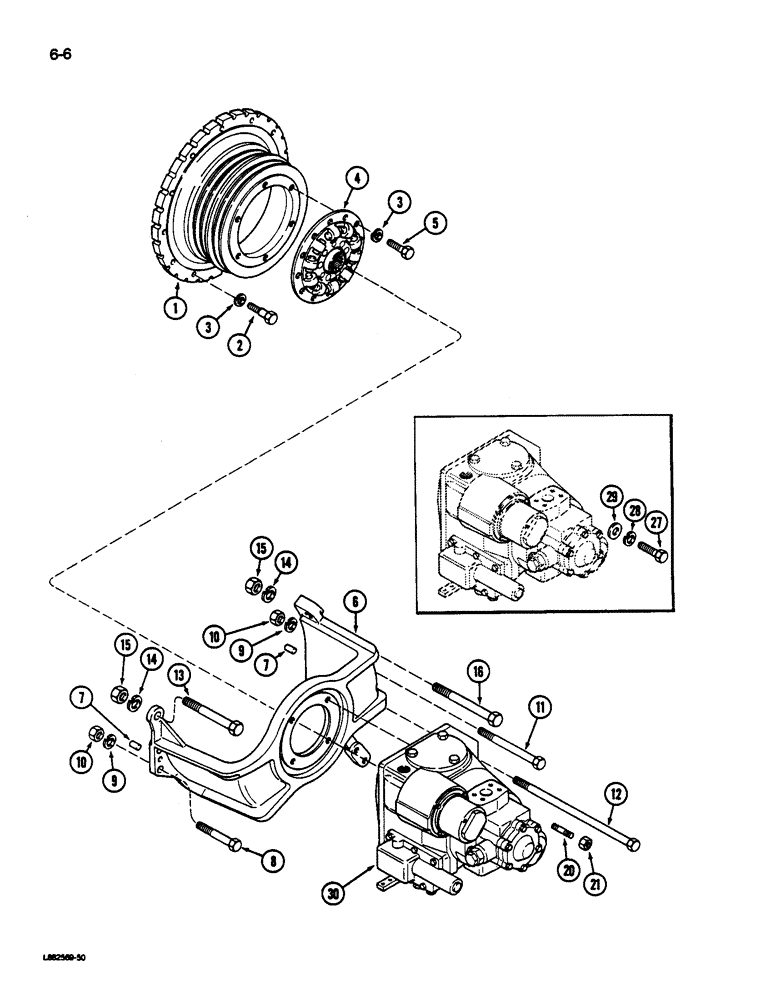

Запчасти Case IH 1844 (6-06) - FAN DRIVE PULLEY, PULLEY HOUSING, AND HYDROSTATIC PUMP DRIVE PLATE (03) - POWER TRAIN

1

1252583C1

PULLEY

- fan

1шт.

2

480529C1

BOLT

- hex, 3/8 inch NC (Special)

12шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

4

1288885C1

LARGE PLATE

PLATE - drive (1822 Cotton Picker)

1шт.

4

131366C1

LARGE PLATE

PLATE - drive (1844 Cotton Picker)

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

6

1252580C94

HOUSING

ASSEMBLY - pulley

1шт.

7

19904R1

DOWEL,1/2" x 1"

PIN - dowel, hardened

2шт.

8

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

12

16099R1

BOLT,Hex, 1/2" - 13 x 11", Gr 5

- hex, 1/2 NC x 11 inch

1шт.

13

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

129-108

NUT,3/4"-10, G5

2шт.

16

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

20

1338122C1

STUD

- pump retaining, 1/2 inch NC

4шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

27

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(If equipped) Hex, 1/2"-13 x 1 3/4", G5

4шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

29

26273R1

WASHER

- flat, hardened

4шт.

30

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Page 6-21 and 6-27)

1шт.
