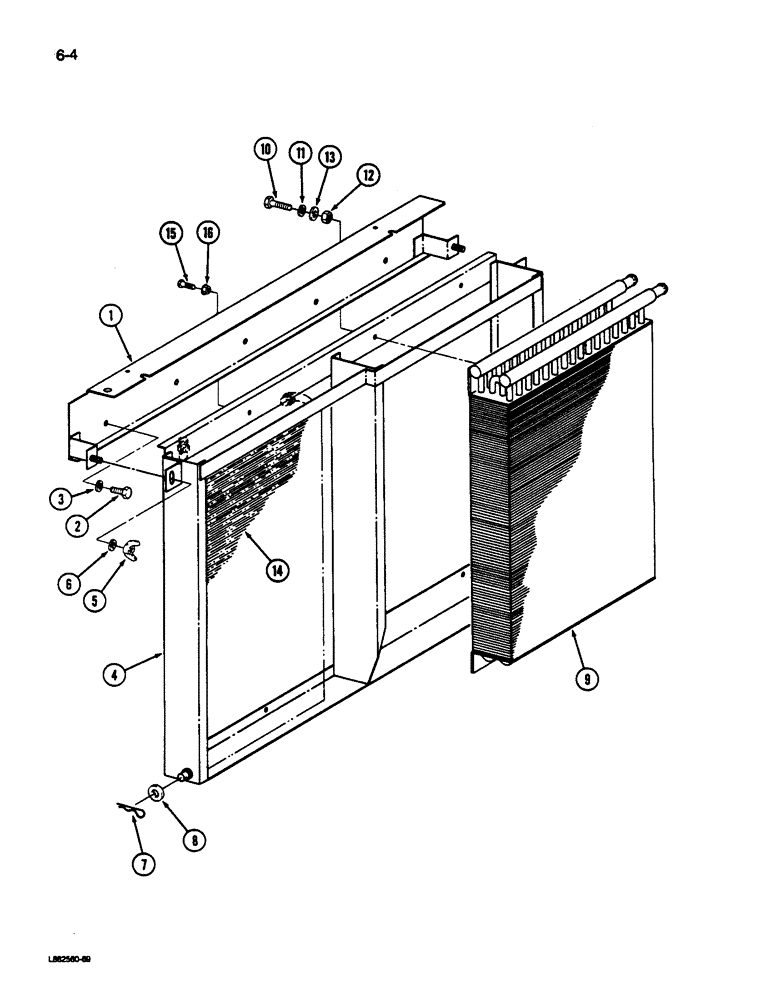

Запчасти Case IH 1844 (6-04) - OIL COOLER AND SUPPORTS (03) - POWER TRAIN

1

1262768C2

SUPPORT

ASSEMBLY - retainer

1шт.

2

131-101

BOLT

- hex, 5/16 NC x 1/2 inch

5шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

1263024C2

COOLER

SUPPORT ASSEMBLY - oil cooler

1шт.

5

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

6

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

473443R1

COTTER PIN

- quick attachable

2шт.

8

120396

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

9

84358C1

COOLER

- transmission oil

1шт.

10

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

11

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

120376

NUT,5/16"-18, G5

4шт.

13

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

14

REF

INSTRUCTION

COIL - air conditioning condenser (See Page 9-257)

1шт.

15

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4-20 x 1/2 inch

4шт.

16

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.
