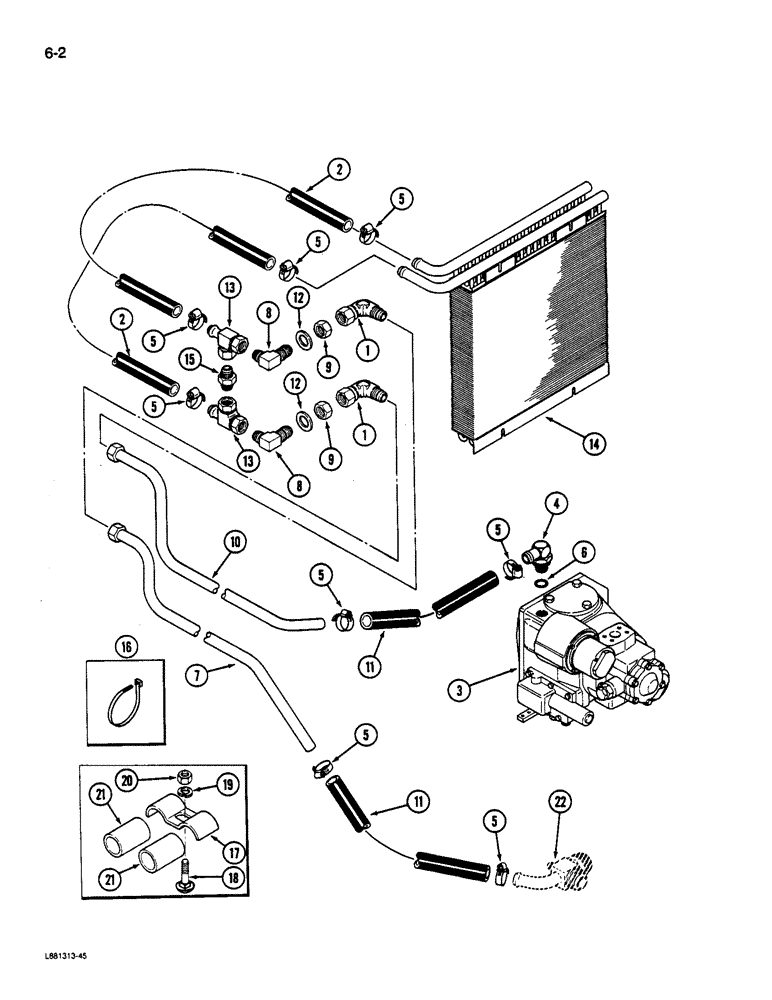

Запчасти Case IH 1844 (6-02) - OIL COOLER SYSTEM (03) - POWER TRAIN

1

9410285

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 1 inch

2шт.

2

NSS

NOT SOLD SEPARAT

HOSE - cooler, 55 inch (1 397 mm)(Order 87085C1, Serial Range: cut-length)

2шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Page 6-21 and 6-27)

1шт.

4

178995C1

ELBOW

- beaded tube

1шт.

5

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose No. 20, Type F

8шт.

6

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

1шт.

7

1285308C3

HYD TUBE

TUBE ASSEMBLY - cooler return

1шт.

8

86890C1

FITTING

ELBOW - bulkhead union

2шт.

9

9403298

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT - bulkhead union

2шт.

10

1285307C3

HYD TUBE,1" OD, 985.8, 269.7 mm Length

TUBE ASSEMBLY - cooler supply

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - case drain, 22 inch (559 mm)(Order 87085C1, Serial Range: cut-length)

2шт.

12

21779R1

WASHER

- flat, 1-11/32 x 2 x 7/64 inch

2шт.

13

86893C1

FITTING

TEE - special 3-way, 1 inch

2шт.

14

REF

INSTRUCTION

COOLER ASSEMBLY - hydraulic oil (See Page 6-5)

1шт.

15

86892C2

VALVE

ASSEMBLY - oil cooler check

1шт.

16

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

2шт.

17

157678C1

CLAMP

- hydraulic tube

1шт.

18

111-123

CARRIAGE BOLT,1/4"- 20 x 5 1/2"

BOLT - round head square neck, 1/4 NC x 5 inch

1шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

20

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

21

1285771C1

PLASTIC-RUBBER TUBE

STRIP - tube clamp, 1 inch

2шт.

22

REF

INSTRUCTION

FITTING - pump inlet (See Page 8-15 and 8-17)

1шт.
