Запчасти Case IH 1844 (2-48) - CYLINDER BLOCK, DT466C DIESEL ENGINE (01) - ENGINE

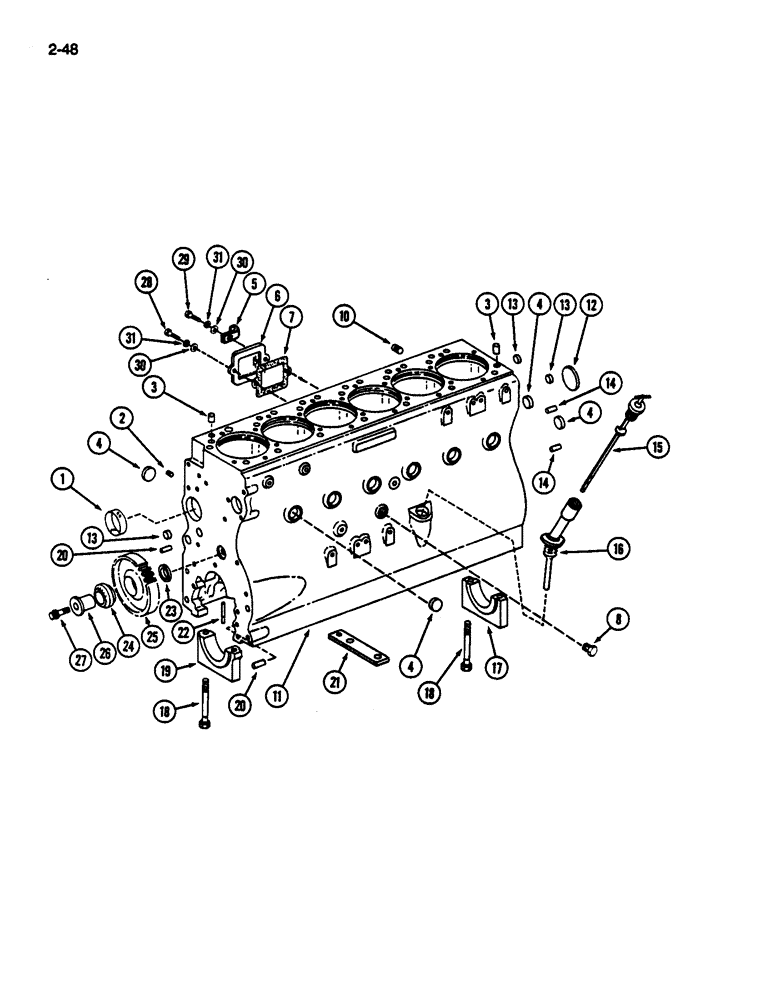

Схема запчастей Case IH 1844 - (2-48) - CYLINDER BLOCK, DT466C DIESEL ENGINE (01) - ENGINE
18
28
30
6
4
27
12
7
31
18
3
24
14
1
10
4
14
30
28
11
29
8
13
3
25
22
15
13
19
13
31
20
20
5
17
21
4
4
16
23
2

Артикул

Название

Примечание

Количество

1

680117C1

SET

KIT - camshaft bearing

1шт.

NSS

NOT SOLD SEPARAT

BEARING - camshaft

4шт.

2

50410DA

PLUG

- hex, socket, 1/8-27

5шт.

3

684902C1

DOWEL,15.3mm ID x 17.78mm OD x 22.23mm L

- bushing

2шт.

4

23623R1

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch

9шт.

5

1806481C1

CLAMP

- turbocharger oil inlet tube

1шт.

6

690166C1

COVER

- breather opening

1шт.

7

690231C2

GASKET

- breather cover

1шт.

8

444625

PLUG

- hex head pipe (Drain) 3/8-18

1шт.

10

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket pipe, 3/4-14

2шт.

11

735289C91

CRANKCASE

CYLINDER BLOCK ASSEMBLY - remanufactured (North America only)

1шт.

11

1802336C93

CRANKCASE

CYLINDER BLOCK ASSEMBLY - new

1шт.

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

NSS

NOT SOLD SEPARAT

BEARING - camshaft

4шт.

682444C1

RING

- camshaft seal rear

1шт.

NSS

NOT SOLD SEPARAT

CAP - main bearing

7шт.

1802582C1

BOLT

- main bearing cap

14шт.

23623R1

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch

9шт.

684902C1

DOWEL,15.3mm ID x 17.78mm OD x 22.23mm L

- bushing

2шт.

680484C1

DOWEL

- 1/2 x 1-1/8 inch

2шт.

680483C1

PIN

DOWEL - 3/8 x 7/8 inch

2шт.

50410DA

PLUG

- hex socket, 1/8-27

5шт.

327412R1

PLUG,Cup, 13/16"

- cup, 13/16 inch

3шт.

17013R1

BALL,13/32" Dia

1шт.

FOR444613

PLUG

- hex head pipe, 1/8-27

1шт.

444625

PLUG

- hex head pipe (Drain) 3/8-18

1шт.

17008R1

BALL,1/4" Dia

Chrome (Not used this application) 1/4" Dia

12шт.

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket pipe, 3/4-14

3шт.

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

NOZZLE - piston coolant jet

12шт.

12

682444C1

RING

- camshaft seal rear

1шт.

13

327412R1

PLUG,Cup, 13/16"

- cup, 13/16 inch

3шт.

14

680484C1

DOWEL

- 1/2 x 1-1/8 inch

2шт.

15

1800401C1

DIPSTICK

GAUGE - oil level

1шт.

16

1801413C1

TUBE

- oil filler and gauge

1шт.

17

680243C1

HOUSING

CAP - main bearing rear

1шт.

18

1802582C1

BOLT

- main bearing cap

14шт.

19

680241C1

CAP

- main bearing front and intermediate

6шт.

20

680483C1

PIN

DOWEL - 3/8 x 7/8 inch

2шт.

21

673761C1

BRACKET

- suction pipe support

1шт.

22

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

NOZZLE - piston coolant jet

12шт.

23

675767C1

SPACER

- idler gear

1шт.

24

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

- idler gear

1шт.

25

675764C1

GEAR

- idler (77 teeth)

1шт.

26

675765C1

SHAFT

- idler gear stub

1шт.

27

676588C1

12 PT SCREW,Flg, 1/2"-13 x 2"

BOLT - idler gear shaft

1шт.

687002C1

INSERT

- cylinder block (For servicing the lower cylinder sleeve pilot bore)

1шт.

28

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 x 1 inch, Grade 8

1шт.

29

25751R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

- hex, 5/16 x 1-1/4 inch, Grade 8

1шт.

30

27326R1

WASHER,.344" x 11/16" x .089", HDN

- hardened, 5/16 inch

2шт.

31

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
