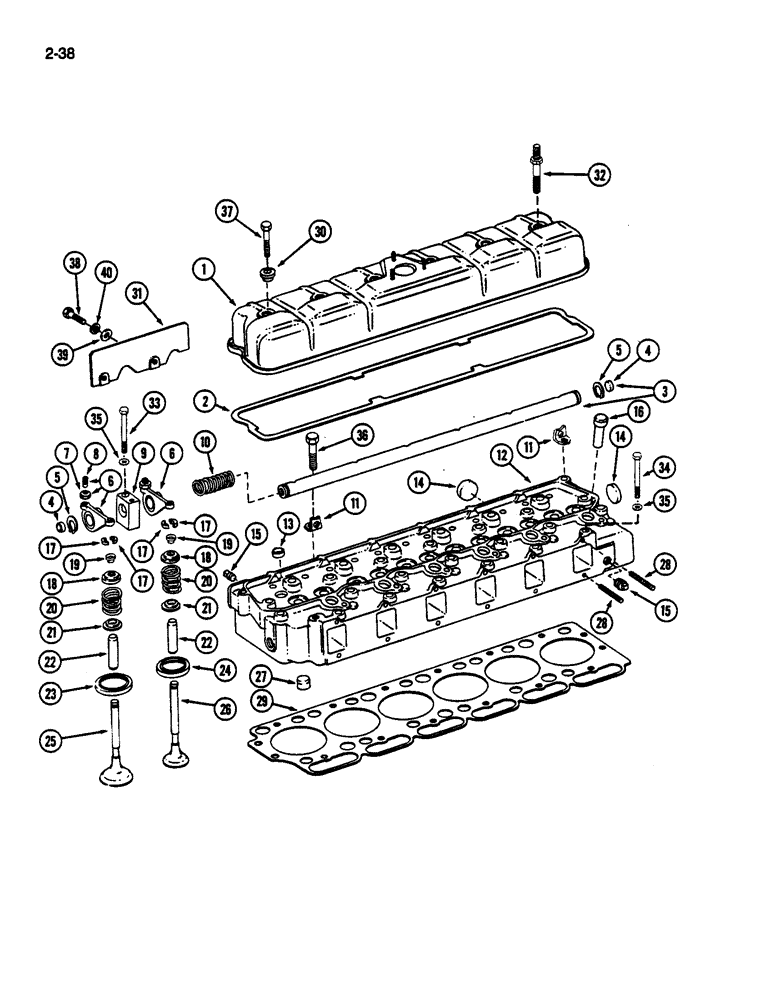

Запчасти Case IH 1844 (2-38) - CYLINDER HEAD AND VALVE MECHANISM, DT466C DIESEL (01) - ENGINE

1

690339C2

COVER

- valve

1шт.

2

675109C2

GASKET

- valve cover

1шт.

3

675660C92

SHAFT

- rocker arm (Includes plugs)

1шт.

4

291171C1

PLUG,Cup, 9/16"

- rocker arm shaft

2шт.

5

24577R1

SNAP RING,#84, Ext

Ring, Snap, #84, Ext

2шт.

6

688999C92

ROCKER

ARM - valve rocker (Includes screw and nut)

12шт.

7

133093R1

NUT,Hex, 3/8" - 24

- adjusting screw

12шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

- rocker arm adjusting

12шт.

9

1802461C2

BRACKET

- rocker arm shaft

6шт.

10

675105C1

SPRING

- rocker arm shaft

5шт.

11

675455C1

EYE

- lifting

2шт.

12

749854C92

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder (Remanufactured)

1шт.

12

1928113C1

CORE-CYLINDER HEAD

Return Number

1шт.

12

691877C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (New)

1шт.

13

21427R1

PLUG,Cup, 1 1/8", Stainless

- cup, 1-1/8 inch

6шт.

14

601093C1

PLUG,Cup, 1 1/2", Stainless

- cup, 1-1/2 inch (38 mm)

6шт.

15

FO445751

PLUG

- square head pipe, 1/2-14

2шт.

16

675442C1

SLEEVE

- injector

6шт.

17

41339D

KEY

LOCK - valve spring retainer

24шт.

18

682221C92

VALVE

ROTATOR - valve

12шт.

19

681234C1

BUSHING

SHIELD - oil

12шт.

20

682064C1

SPRING

- valve

12шт.

21

675443C1

SEAT

- valve spring

12шт.

22

675439C1

GUIDE

- valve

12шт.

23

NSS

NOT SOLD SEPARAT

INSERT - intake valve seat, standard

6шт.

23

671559C1

INSERT

- intake valve seat, 0.002 inch oversize

1шт.

23

671561C1

INSERT

- intake valve seat, 0.015 inch oversize

1шт.

24

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat, standard

6шт.

24

671563C1

SEAT, VALVE

INSERT - exhaust valve seat, 0.002 inch oversize

1шт.

24

671565C1

INSERT

- exhaust valve seat, 0.015 inch oversize

1шт.

25

675046C2

VALVE

- intake

6шт.

26

676865C2

VALVE

- exhaust

6шт.

27

691183C1

DEFLECTOR

DIRECTOR - water

12шт.

28

682840C1

STUD

- manifold to, cylinder head

12шт.

29

676108C3

GASKET

- cylinder head

1шт.

30

677692C1

GROMMET

- valve cover

6шт.

31

1800248C1

SHIELD

- heat

1шт.

32

689324C1

STUD,Stud, 5/16" - 24 - 5/16" - 18 x 2.30"

BOLT-STUD - valve cover, 5/18-18 x 5/16-24

1шт.

33

676119C1

BOLT

- cylinder head long

6шт.

34

676120C1

BOLT

- cylinder head short

20шт.

35

252018R1

WASHER,15.11mm ID x 25.4mm OD x 4.83mm Thk

- cylinder head bolt

26шт.

36

24648R1

BOLT

- hex, 9/16-12 x 1-1/4 inch, Grade 8

2шт.

37

25654R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, Grade 8

5шт.

38

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

39

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 5/64 inch

2шт.

40

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
