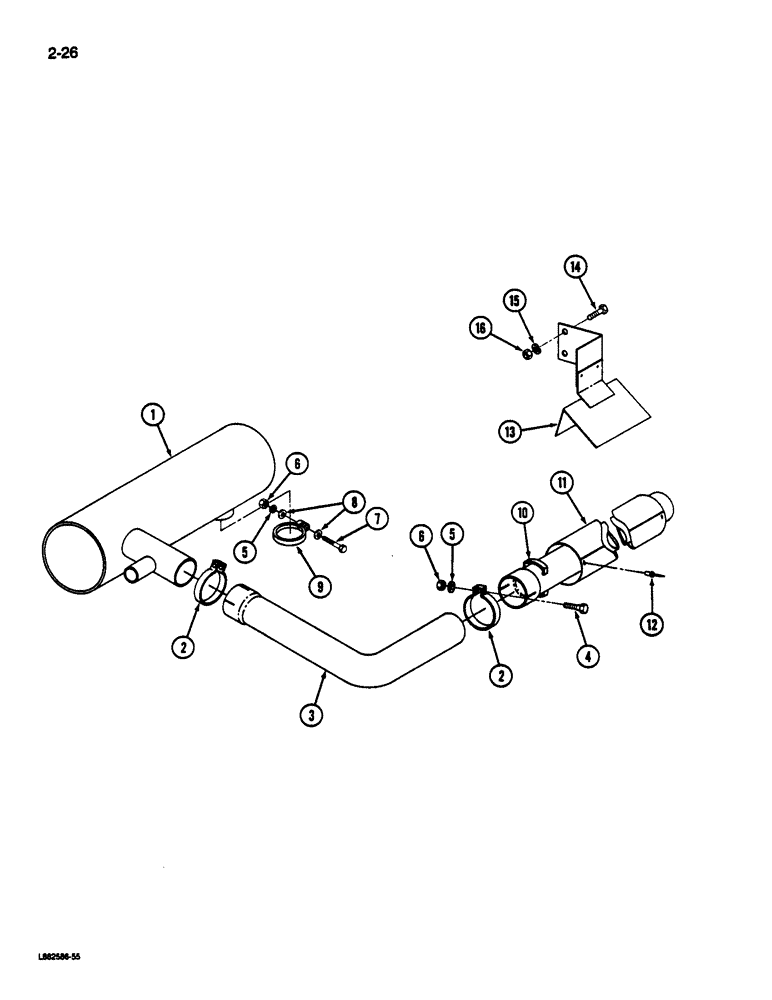

Запчасти Case IH 1844 (2-26) - EXHAUST SYSTEM, D466 DIESEL (01) - ENGINE

1

1275812C1

MUFFLER

- exhaust

1шт.

2

1321280C1

CLAMP

- exhaust pipe and muffler

2шт.

3

1275840C1

ELBOW

- muffler outlet pipe

1шт.

4

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

120377

NUT,3/8" - 16, Gr 5

3шт.

7

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

8

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- flat, 13/32 x 13/16 x 9/64 inch

2шт.

9

681515C1

CLAMP,82.55mm

- exhaust muffler

1шт.

10

1260035C3

TUBE,1895, 50 mm Length

PIPE ASSEMBLY - exhaust tube

1шт.

11

1260034C2

TUBE,119 mm OD, 2030 mm Length

- exhaust shield

1шт.

12

201946C1

RIVET,Pop, 3/16" x .325"

- 4.8 x 8.3 mm break mandrel

6шт.

13

86978C1

GUARD

SHIELD ASSEMBLY - exhaust pipe

1шт.

14

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

15

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

16

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
