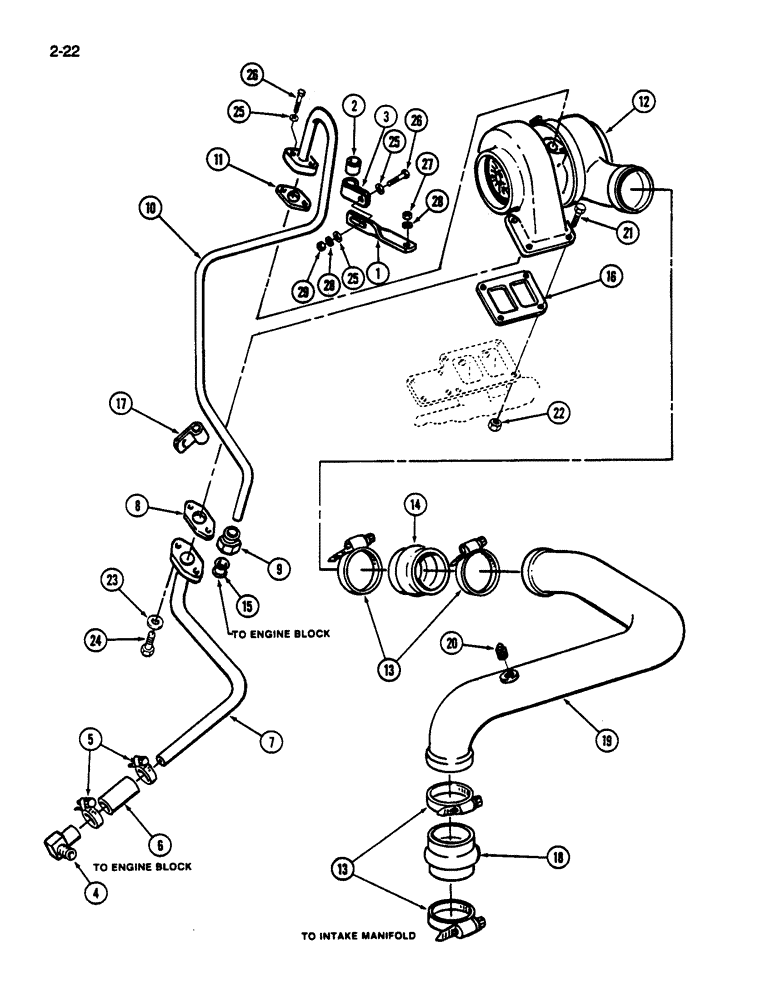

Запчасти Case IH 1844 (2-22) - TURBOCHARGER SYSTEM, DT466C DIESEL (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
1806190C1
BRACKET
- tube clamp
1шт.
2
1806409C1
TUBE,0.36" ID, 0.59" OD
CUSHION - turbocharger oil inlet tube
1шт.
3
132112H1
CLAMP,9/16", 3/8" Bolt
- turbocharger oil inlet tube, upper
1шт.
4
673622C1
ELBOW
- turbocharger oil drain
1шт.
5
995218R1
CLAMP
- turbocharger oil drain
2шт.
6
675859C2
HOSE,22.35mm ID x 66.04mm L
Turbocharger Oil Drain
1шт.
7
691620C91
TUBE,12.7, 2.4" Length
- turbocharger oil drain
1шт.
8
687903C1
GASKET
- turbocharger oil drain tube
1шт.
9
265205R1
TUBE NUT,0.531" Length
NUT - tube
1шт.
10
1806770C91
TUBE,0.375" OD
ASSEMBLY - oil inlet
1шт.
11
253660R1
GASKET
- turbocharger oil inlet tube
1шт.
12
REF
INSTRUCTION
TURBOCHARGER ASSEMBLY - engine (See Page 2-25)
1шт.
13
687456C1
CLAMP
- turbocharger air outlet pipe hose
4шт.
14
675723C2
HOSE,1.96" ID, 2.21" ID x 2.50", SAE J200
Turbocharger Air Outlet Pipe 1.96" ID, 2.21" ID x 2.50", SAE J200
1шт.
15
265204R1
SLEEVE
- tube (replaces 26524R1)
1шт.
16
670073C1
GASKET
- turbocharger
1шт.
17
1806481C1
CLAMP
- turbocharger oil inlet tube, lower
1шт.
18
310385R2
INTAKE AIR HOSE,2.21" ID x 3.00", SAE J200
- Turbocharger Air Outlet Pipe 2.21" ID x 3.00", SAE J200
1шт.
19
1800178C91
PIPE
- turbocharger air outlet
1шт.
20
9617020
PLUG,1/4" - 18 x 0.48"
- pipe, Hex Socket, 1/4-18
1шт.
21
22737R1
BOLT,Hex, 3/8" - 16 x 1 1/2", Stainless
4шт.
22
676524C1
NUT
- hex lock, 3/8 inch NC
4шт.
23
25896R1
WASHER,13/32" x 13/16" x .09", HDN
- hardened, 3/8 inch
2шт.
24
60365H
BOLT,Hex, 3/8" - 16 x 1", Gr 8
- hex, 3/8 NC x 1 inch
2шт.
25
27326R1
WASHER,.344" x 11/16" x .089", HDN
- hardened, 5/16 inch
4шт.
26
25493R1
BOLT,Hex, 5/16" - 18 x 1", Gr 8
- hex, 5/16 NC x 1 inch, Grade 8
3шт.
27
25521R1
NUT,5/16"-24, G8
- hex, 5/16 inch NF, Grade 8
1шт.
28
116120
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
29
25520R1
NUT,5/16"-18, G8
- hex, 5/16 inch NC, Grade 8
1шт.
Выбрано товаров: 29
