Запчасти Case IH 1844 (9-222) - BASKET LIFT, FRONT AND REAR (16) - BASKET

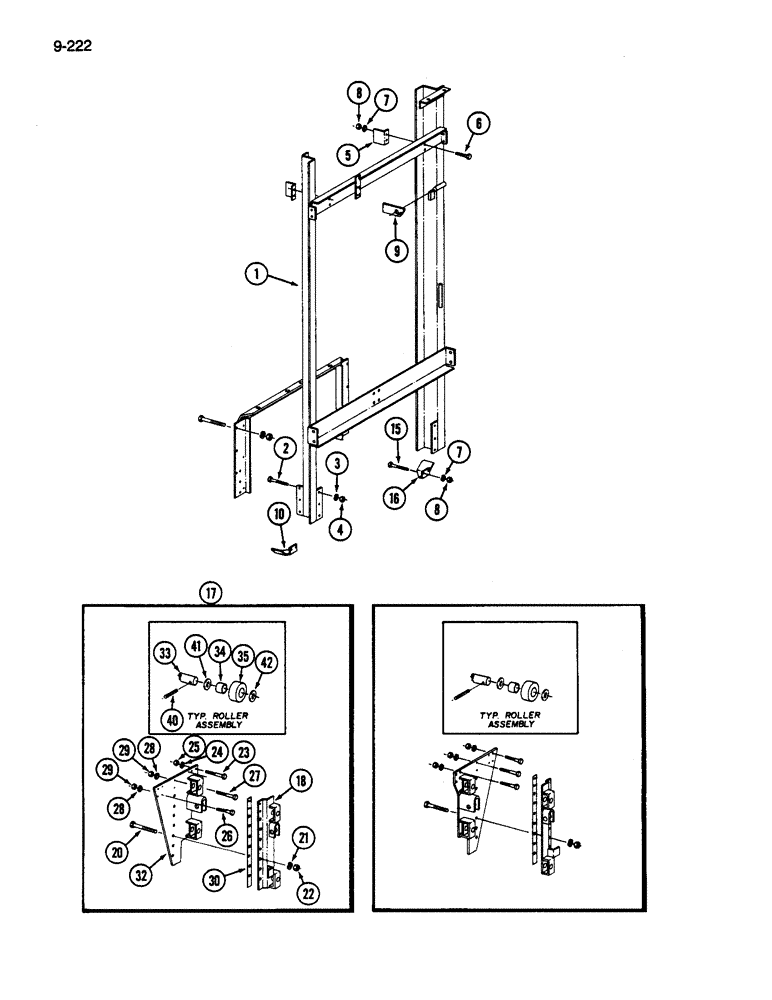

Схема запчастей Case IH 1844 - (9-222) - BASKET LIFT, FRONT AND REAR (16) - BASKET
5
15
30
23
40
21
2
33
22
32
28
7
27
26
10
42
3
7
20
34
28
17
41
29
29
16
1
4
24
9
35
6
25
8
18
8

Артикул

Название

Примечание

Количество

1

1260175C5

FUNNEL

MAST ASSEMBLY - front and rear

2шт.

2

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

18шт.

3

120384

WASHER,1/2"

LOCK, 1/2"

18шт.

4

25526R1

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

18шт.

5

1278638C1

SUPPORT

BRACKET - upper stop

4шт.

6

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

7

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

8

120377

NUT,3/8" - 16, Gr 5

12шт.

9

REF

INSTRUCTION

BAR - basket lock (See Page 9-227 and 9-229)

2шт.

10

1288804C1

DEFLECTOR

- rear, corner left

1шт.

15

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

16

1288805C1

DEFLECTOR

- rear corner, right

1шт.

17

86853C91

SUPPORT

ASSEMBLY - right rear and left front

2шт.

18

1288890C1

SUPPORT

BRACKET - roller carriage

1шт.

20

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

7шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

22

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, Grade 8

7шт.

23

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

3шт.

24

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

25

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

26

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

27

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

28

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

29

120377

NUT,3/8" - 16, Gr 5

6шт.

30

1266357C1

SHIM

- basket carriage, 1/32 inch (0.794 mm)

1шт.

30

1266358C1

SHIM

- basket carriage, 1/16 inch (1.598 mm)

1шт.

32

1278653C2

SUPPORT

- basket

1шт.

33

1260150C2

SHAFT

- roller

6шт.

34

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

- fiber glide

6шт.

35

1260135C1

ROLL

ER

6шт.

40

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

6шт.

41

20885R1

WASHER

- flat, 1-5/32 x 2 x 3/64 inch

1шт.

42

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 7/64 inch

6шт.

Выбрано товаров: 33
